Manual for Advance 10B/Advance 10F

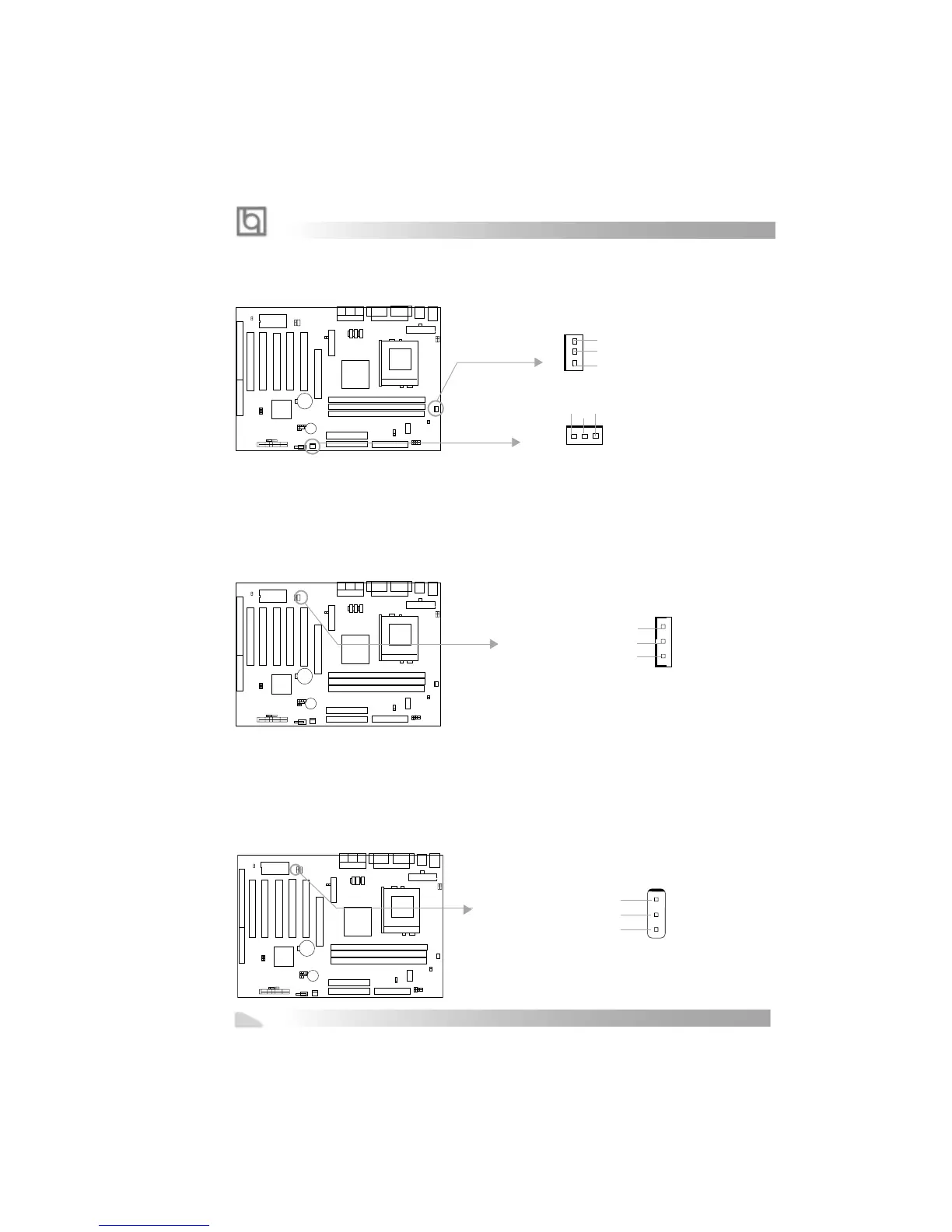

Fan Connector (CPUFAN, CHSFAN)
The fan speed of these two fans can be detected and viewed in “PC Health” section of the
BIOS. They will be automatically turned off after the system enters suspend mode.
Wake-Up On LAN (WOL)
Through the Wake-Up On LAN function, a wake event occurring from the network can
wake up the system. If this function is to be used, please be sure an ATX 2.01 power
supply of which 5VSB line is capable of delivering 720mA, and a LAN adapter which
supports this function are used. Then connect this header to the relevant connector on the
LAN adapter, set “Wake up on by Ring /LAN” as Enabled in the “POWER MANAGEMENT
SETUP” section of the BIOS. Save & exit, then boot the operating system once to make sure
this function takes effect.
Wake-Up On Internal Modem (WOM)
Through the Wake-Up On Internal Modem function, the system which is in the power-off
status can be powered on by a ring signal received from the internal modem. If this function
is to be used, be sure an internal modem card which supports the function is used. Then
connect this header to the relevant connector on the modem card, set “Wake up On by Ring/
LAN ” as Enabled in the “POWER MANAGEMENT SETUP” section of the BIOS. Save & exit,
then boot the operating system once to make sure this function takes effect.
Installation Instruction
18
FAN GND
+12V
SENSE
CPUFAN
CHSFAN
FAN GND
+12V
SENSE
1
+5V standby
GND
Signal for waking up (active high)
1
+5V standby
GND
Signal for waking up (active low)
