Manual for Advance 10B/Advance 10F

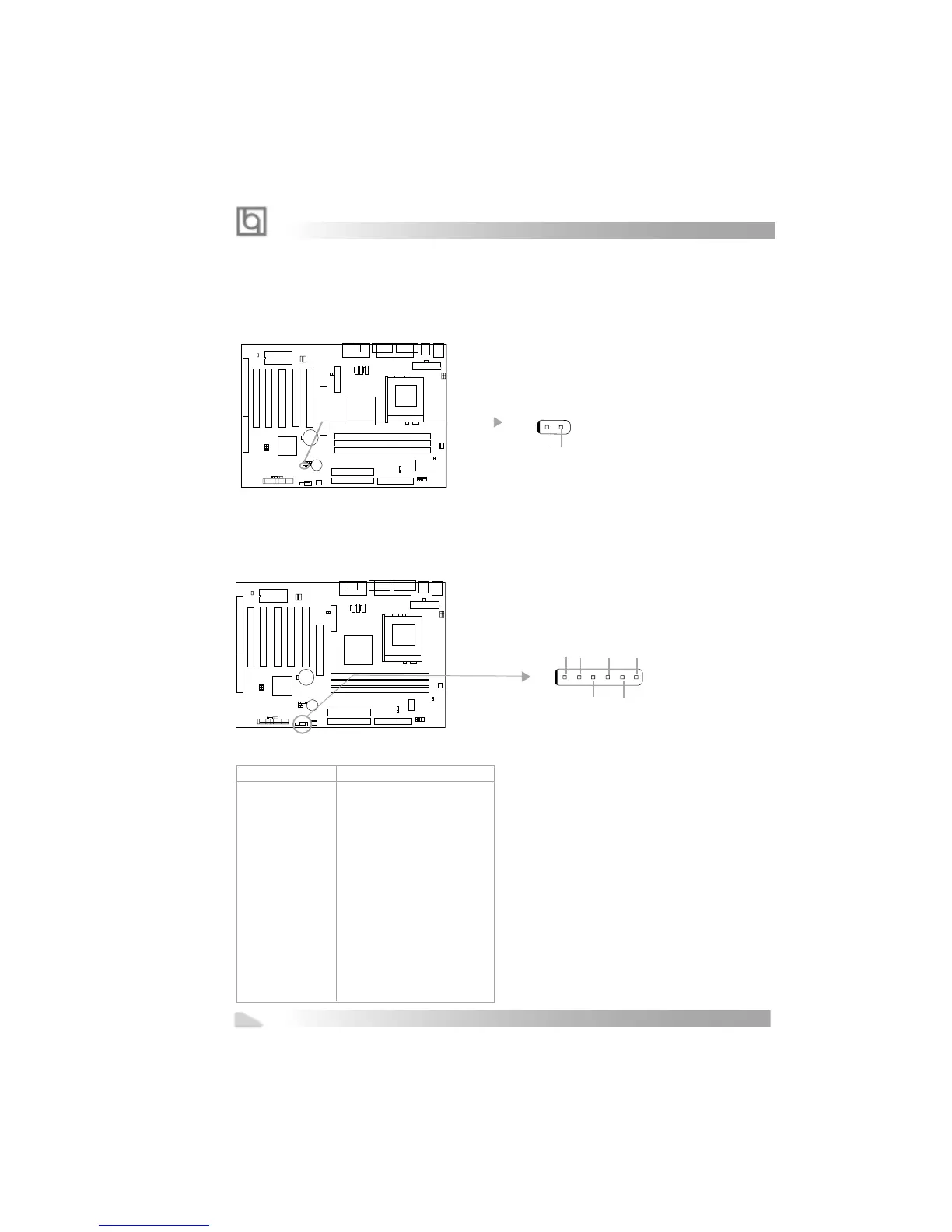

Chassis Security Switch (CHSSEC)
The connector connects to the chassis security switch on the case. The system can
detect the chassis intrusion through the status of this connector. If the connector has
been closed once, the system will record the status and indicate the chassis has been
opened. You can receive this information from QDI ManageEasy software.
Infrared Header (IrDA)
This connector supports wireless transmitting and receiving. If using this function, set
“UART 2 Mode” to HPSIR or ASKIR and configure the settings from the “INTEGRATED
PERIPHERALS” section of the BIOS.
Expansion Slots & I/O Ports description
Slot / Port Description
PCI 1 First PCI slot.
PCI 2 Second PCI slot.
PCI 3 Third PCI slot.
PCI 4 Fourth PCI slot.
PCI 5 Fifth PCI slot.
DIMM1 First DIMM slot.
DIMM2 Second DIMM slot.
DIMM3 Third DIMM slot.
IDE 1 Primary IDE port.
IDE 2 Secondary IDE port.
AMR AMR slot.
AGP AGP slot.
FLOPPY Floppy Drive Port.
GND Indicate signal
20
Installation Instruction
VCC NC
IRRX
GND
IRTX
VCC
To Next Page
