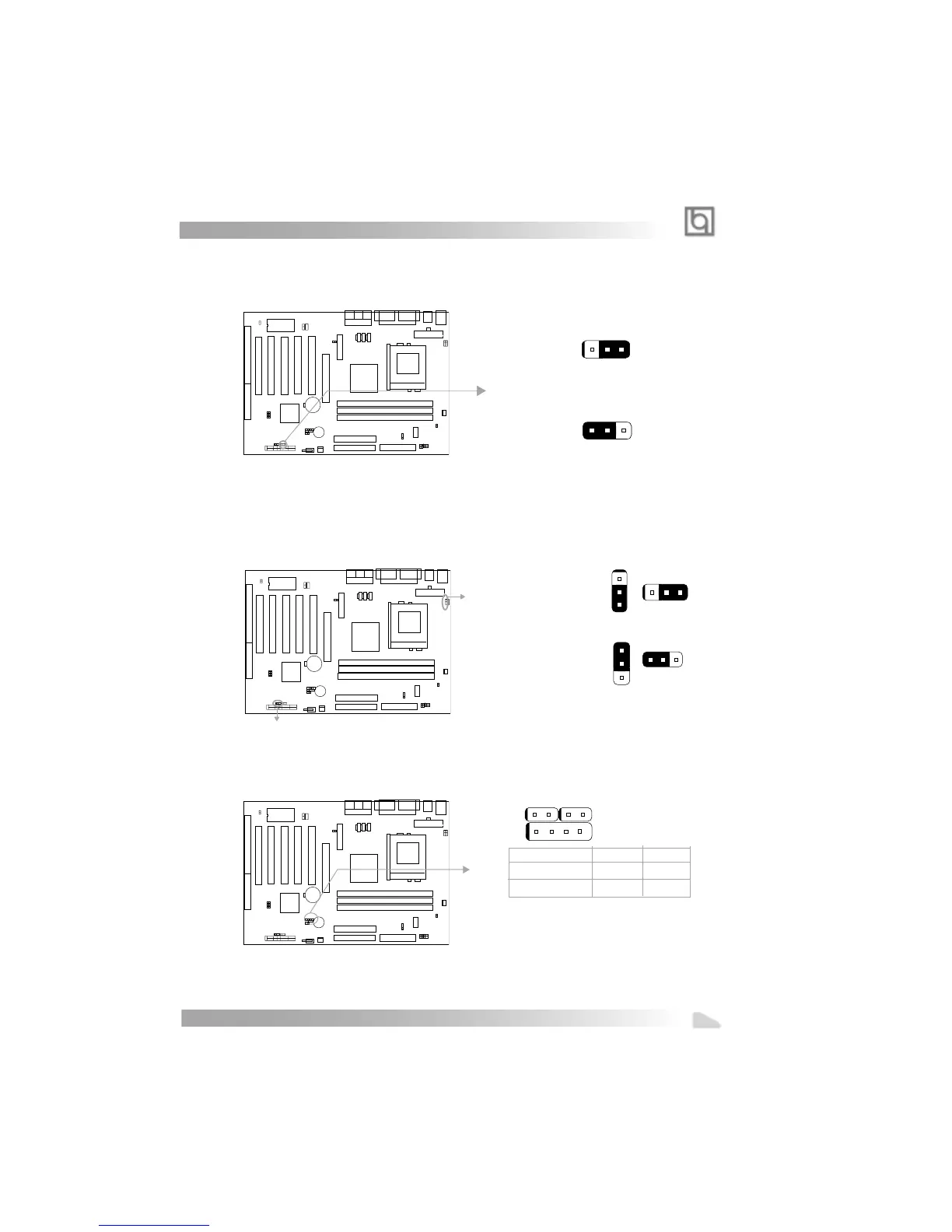

Manual for Advance 10B/Advance 10F
23
Clear CMOS (JCC)
If you want to clear CMOS, unplug the AC power supply first, close JCC (pin1 & pin2) once,
set JCC back to the normal status with pin2 & pin3 connected, then power on the system.
Enable USB KeyDevice Wake-up Function (JUSB1, JUSB2)
The mainboard provides the advanced USB keyDevice wake-up function. The system can
be waken up from its power saving status including ACPI S3 by activating USB keyDevice.
When using this function, set JUSB1&JUSB2 with pin1 & pin2 closed. Otherwise, set
JUSB1&JUSB2 with pin2 & pin3 closed for disabling.
AC97&MC97 Selection (JMC1, JMC2, JAC1)
Advance 10B/Advance 10F mainboard is compatible with AC97 and MC97specification.
Refer to the table for information on how to set them.
Note, For Advance 10F without AC’97 codec, the jumpers JAC1, JMC2, JMC1(1-
2), JMC1(3-4) are shorted to support AMR device.
Normal status:
Clear CMOS:
1
JCC
JCC
(Unplug the AC power supply)
1
chapter 2
JAC1 JMC2
JMC1
Jumper Function
JMC1 JMC2
AC97 Only
AC97+MC97
1-2
1-2, 3-4 Open
Close
‘1-2’ represents pin1 &pin2 closed.
‘3-4’ represents pin3 & pin4 closed.
Disable:
Enable:
JUSB2
123
123
JUSB1
JUSB2
JUSB1
JUSB2
1
2
3
1
2
3
JUSB1
