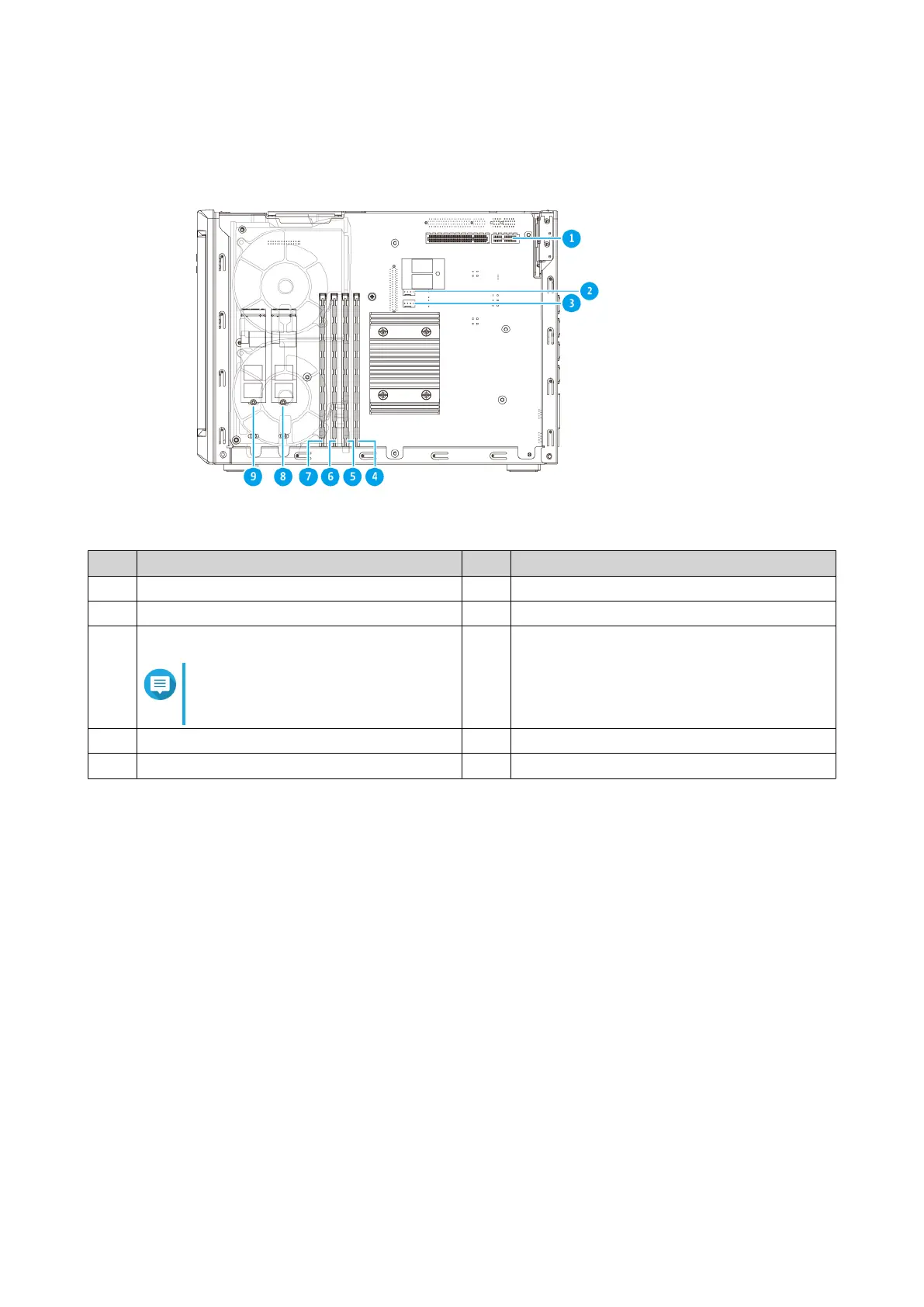

Right Panel
No. Component No. Component
1 PCIe 3.0 x8 slot 6 Memory slot 2
2 Fan connector 1 7 Memory slot 1
3 Fan connector 2
Note
The preinstalled CPU fan is
connected to this connector.
8 M.2 SSD slot 1
4 Memory slot 4 9 M.2 SSD slot 2
5 Memory slot 3 - -
TS-hx86 User Guide
