No. Component No. Component
2 Enter button 7 USB One Touch Copy button
3 Select button 8 USB 3.2 Gen 2 One Touch Copy Type-A port
4 M.2 SSD LEDs 9 Drive LEDs
5 Power button 10 SSD LEDs

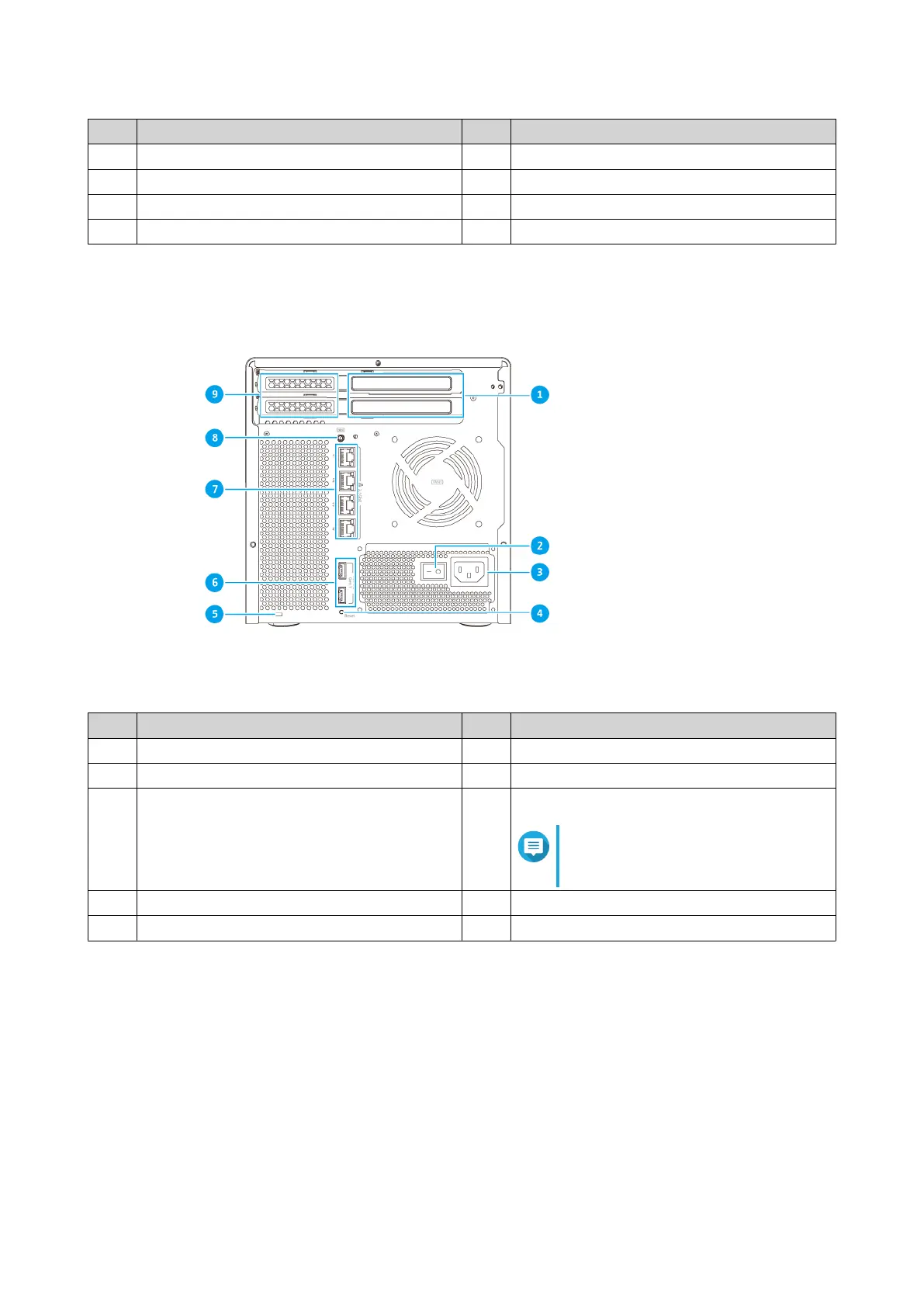

Rear Panel
TS-h686
No. Component No. Component
1 PCIe full-height covers 6 USB 3.2 Gen 1 Type-A ports
2 PSU power switch 7 2.5 Gigabit Ethernet ports (RJ45)
3 Power input 8 Com port
Note
This port is only for engineering
purposes.
4 Reset button 9 PCIe low-profile covers
5 Kensington security slot - -
TS-hx86 User Guide
Product Overview 8
