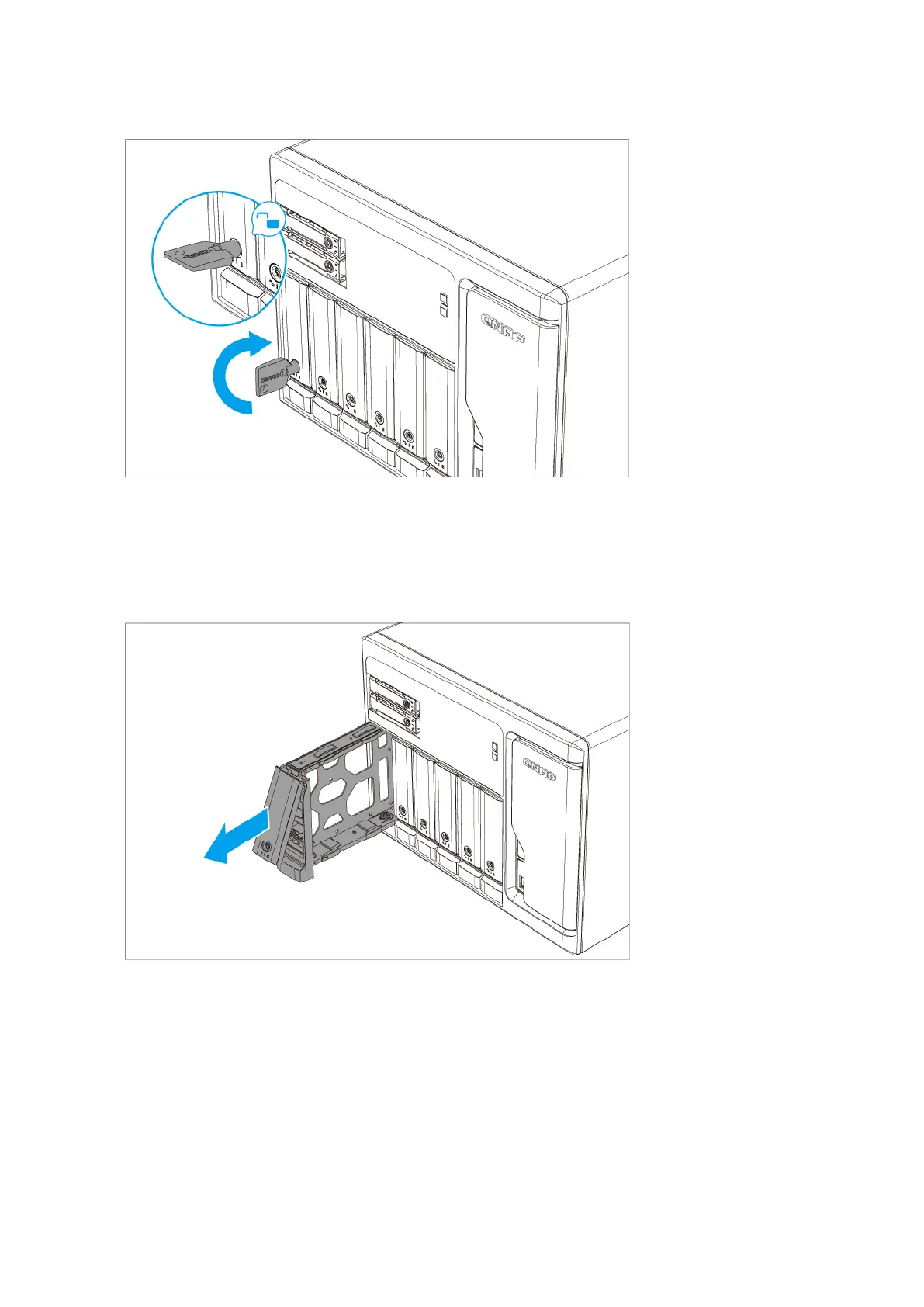

b. Slide the lock down.
c. Pull the handle to release the tray.
d. Pull the tray out.
3. Install a drive on the tray.
a. Remove the fastening panels from the sides of the drive tray.
TS-hx86 User Guide
Installation and Configuration 18
