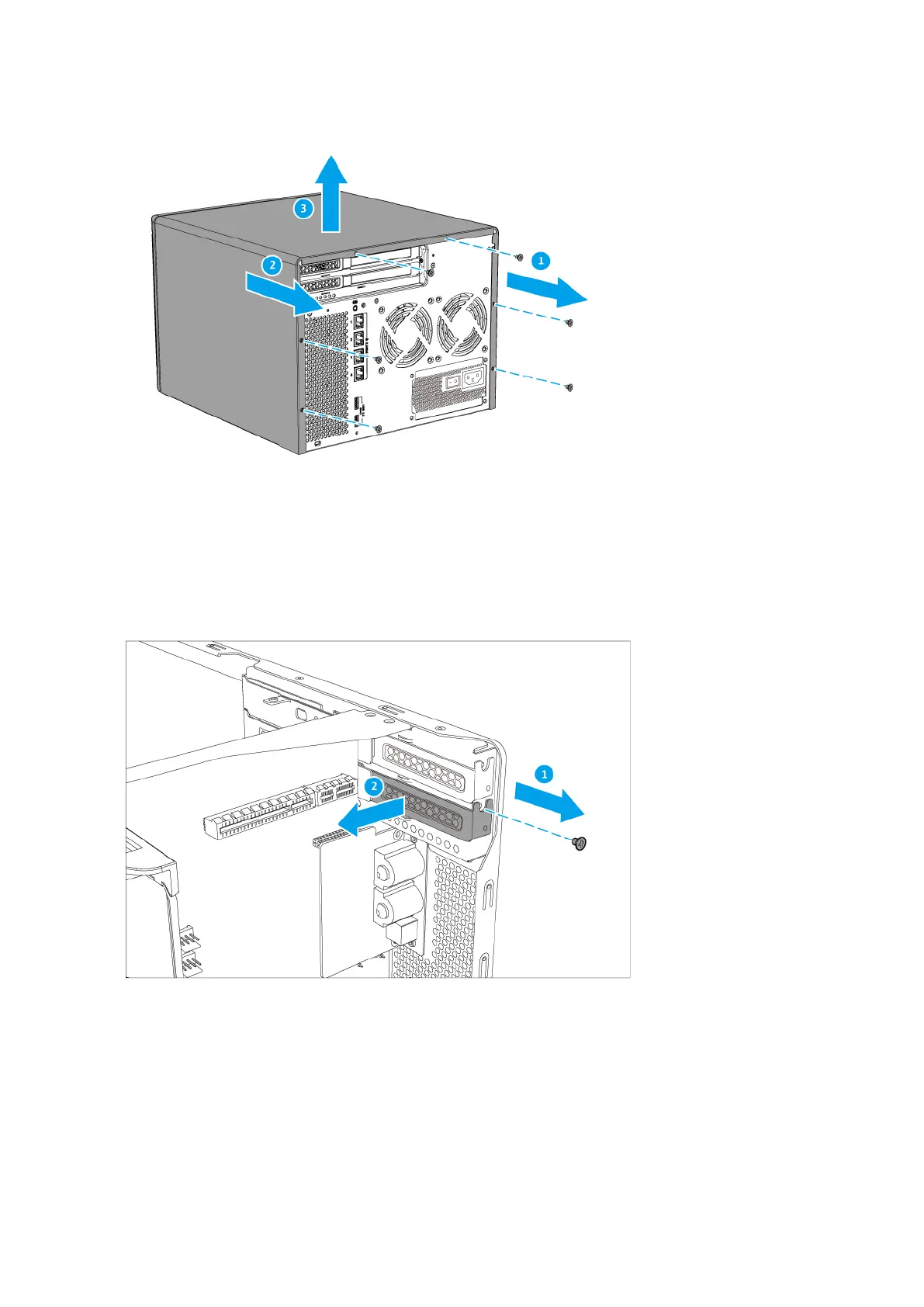

5. Remove the PCIe cover.
a. Remove the screw that secures the cover to the bracket.
b. Pull the cover away from the slot.
Right Panel
Left Panel
TS-hx86 User Guide
Installation and Configuration 32
