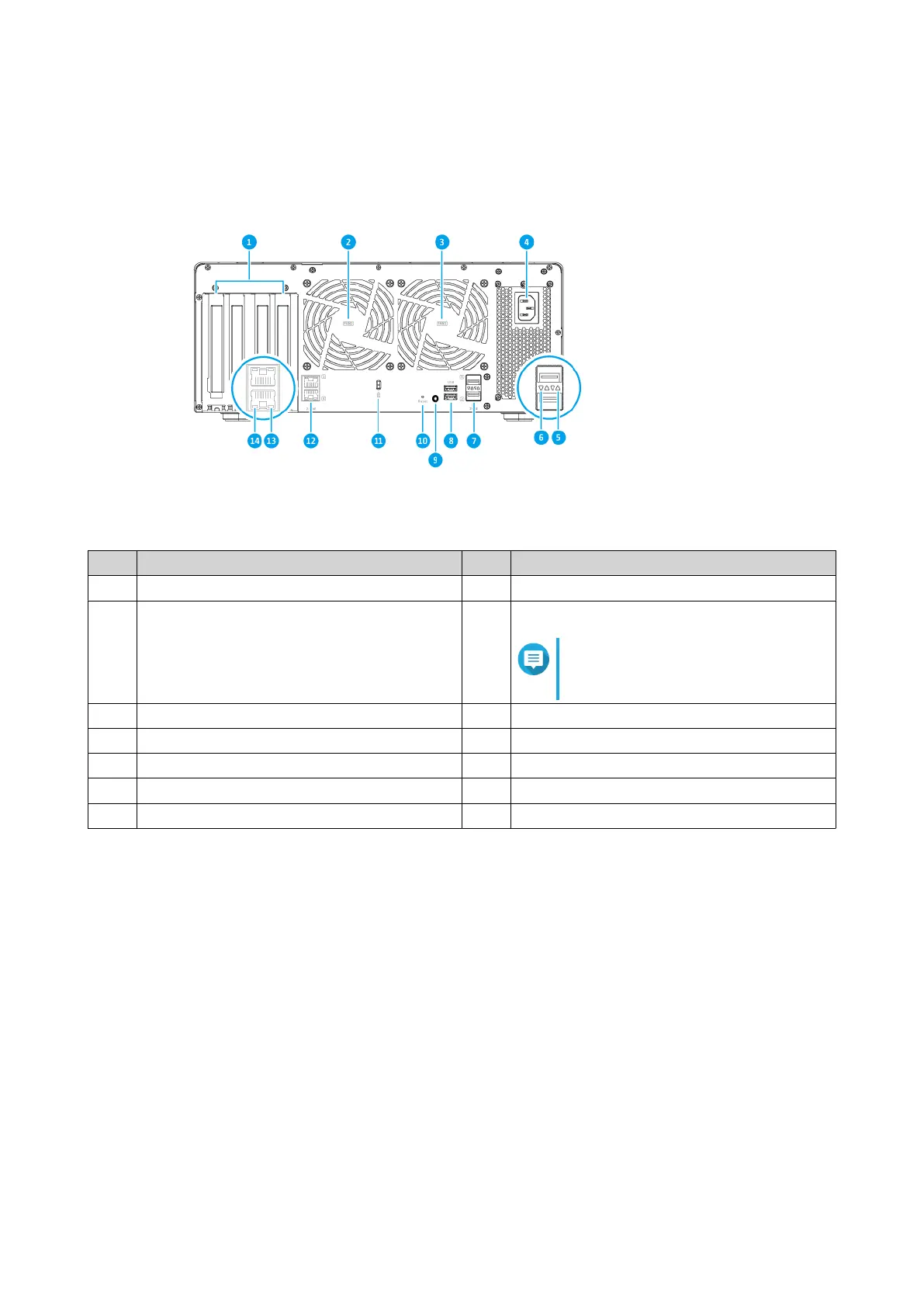

Rear Panel
No. Component No. Component
1 PCIe full-height covers 8 USB 3.2 Gen 1 Type-A ports
2 System fan 1 9 COM port
Note
This port is only for engineering
purposes.
3 System fan 2 10 Reset button
4 Power input 11 Kensington security slot
5 25 Gigabit Ethernet activity LED 12 2.5 Gigabit Ethernet ports (RJ45)
6 25 Gigabit Ethernet speed LED 13 2.5 Gigabit Ethernet activity LED
7 25 Gigabit Ethernet ports (SFP28) 14 2.5 Gigabit Ethernet speed LED
TS-h1290FX User Guide
Product Overview 8
