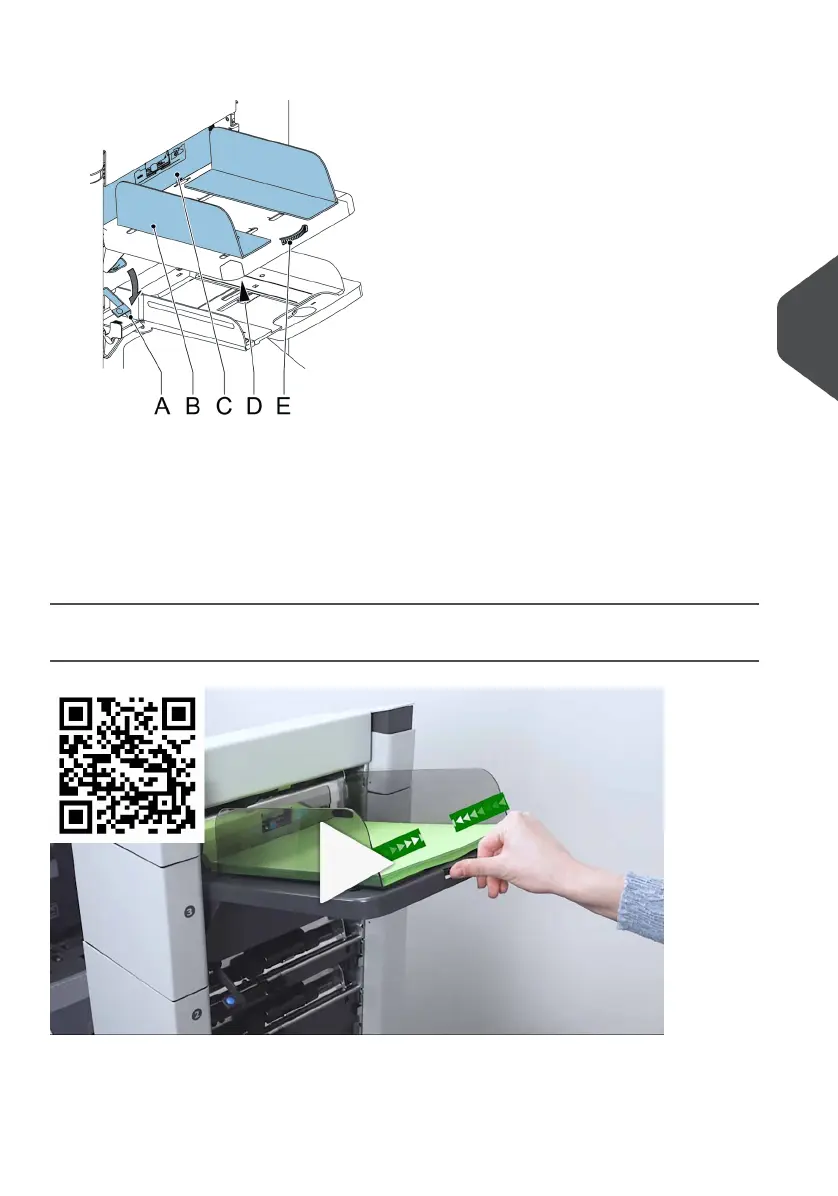

To adjust the side guides B:
1. Loosen knob D, which is located underneath the feeder tray, half a turn.
2. Put a small stack of documents between the side guides.
3. Rotate wheel E.
The space between the side guides and the documents should be such that the
documents have just enough play to move freely.
4. Re-tighten knob D.
Load Documents (HCDF)
5
English
71
| Page 71 | Jul-11-2022 07:45 | Loading the System
