Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

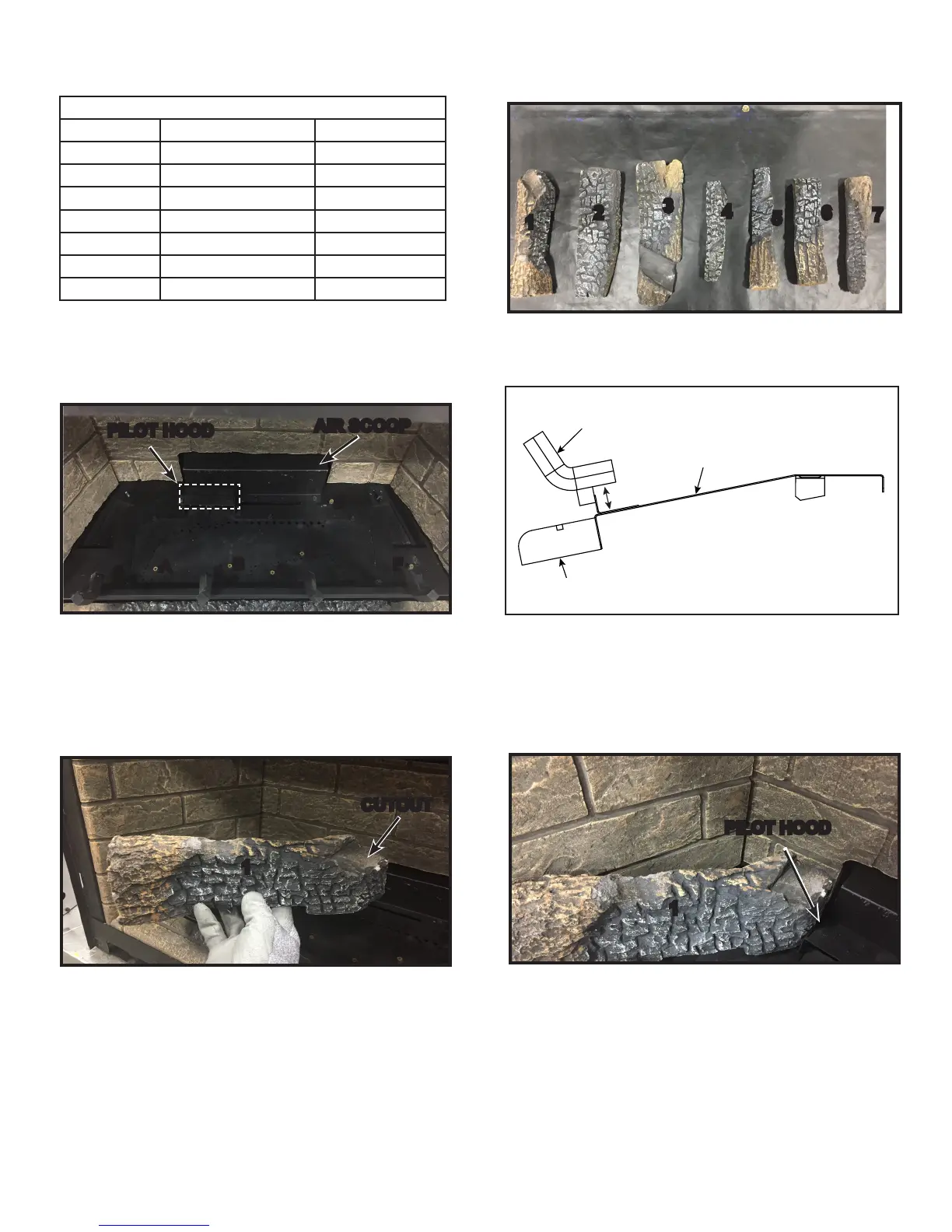

Figure 12. Empty Firebox with Front Hearth Installed
Figure 14. Log #1 Cutout Figure 15. Log #1 Against Pilot Hood
MODELS: EXCURSION-II
LOG #1: Place cutout area of log #1 against the left side of the pilot hood. Lower the bark end of the log down until it rests
on the horizontal beam of the log grate. It will sit between tine #1 and the refractory. The transition from bark to burnout
will line up with the grate bar. Ensure that the cutout section of the log is pushed up against the side of the pilot hood. See
Figures 14, 15 and 16.
CUTOUT
A
B
Figure 11. Log Identication - Excursion-II
1
2
3
4
5
NOTICE: To simplify the installation process, use
Figure 11 to positively identify each individual log
before beginning installation.
6
7
C
D
E
F
PILOT HOOD
PILOT HOOD
1
1
AIR SCOOP
EXCURSION-II SRV LOGS
LOG ID SRV PART # MOLDED LOG #
1 SRV2538-711 38-1
2 SRV2538-712 38-2
3 SRV2538-713 38-3
4 SRV2538-714 38-4
5 SRV2538-716 38-6
6 SRV2538-717 38-7
7 SRV2538-715 38-5
GRATE
7/8 in.
BASE REFRACTORY
BASEPAN
Figure 13. Side Prole Grate Location Reference
