Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

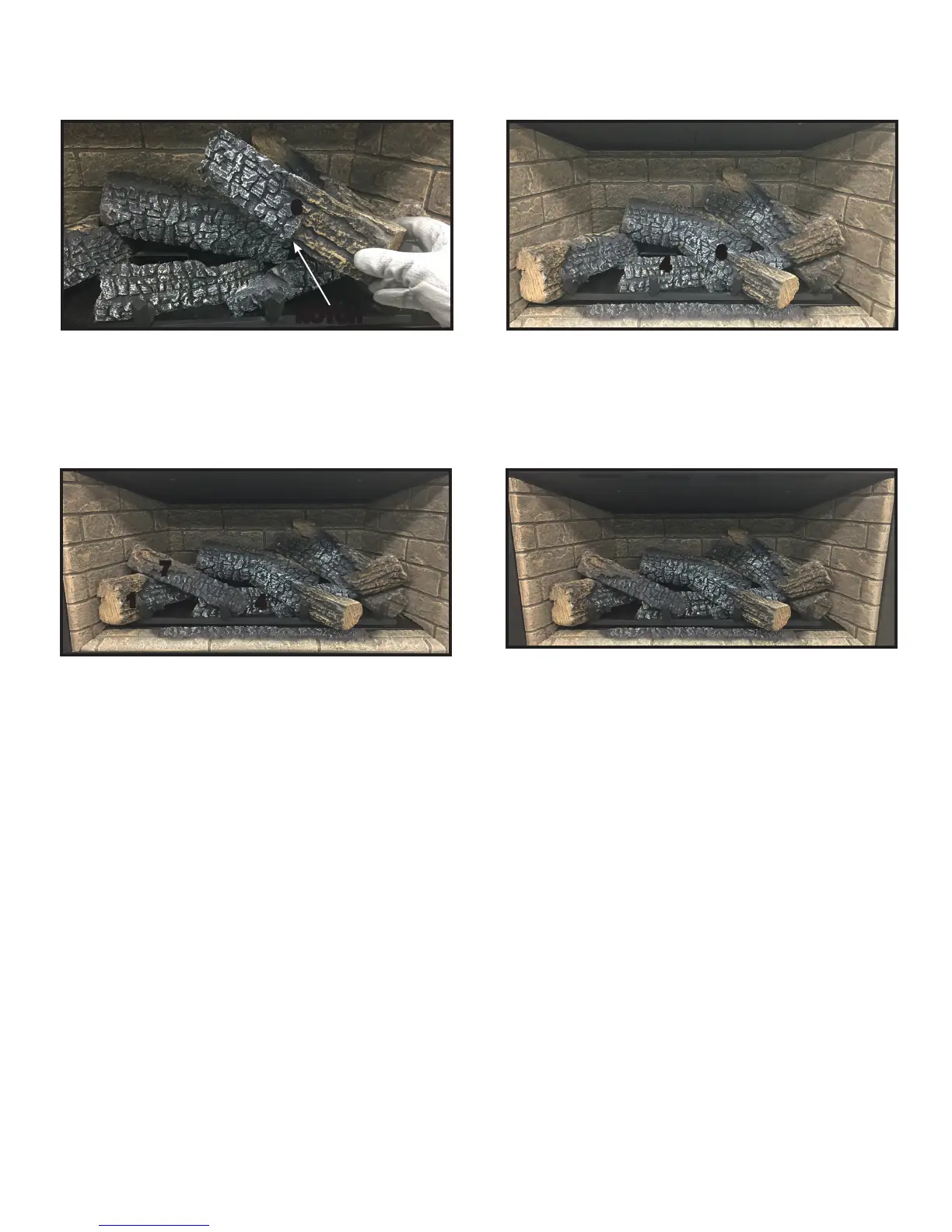

Figure 21. Log #6
6
Figure 23. Log #7 Installed
7
Figure 22. Log #6 Installed
6
4
Figure 24. Complete Log Set
LOG #6: Locate the notch on Log #6. See Figure 21. Place notch over grate tine and burnout end of log on notch of Log
#4. See Figure 22.
LOG #7: Notch on burnout end of Log #7 rests on grate tine, bark end rests on notch of Log #1. Slide burnout end of log
back until it touches Log #4. See Figue 23.
1
NOTCH
4
