Quadra-Fire EXCURSION-I Installation Manual

46
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

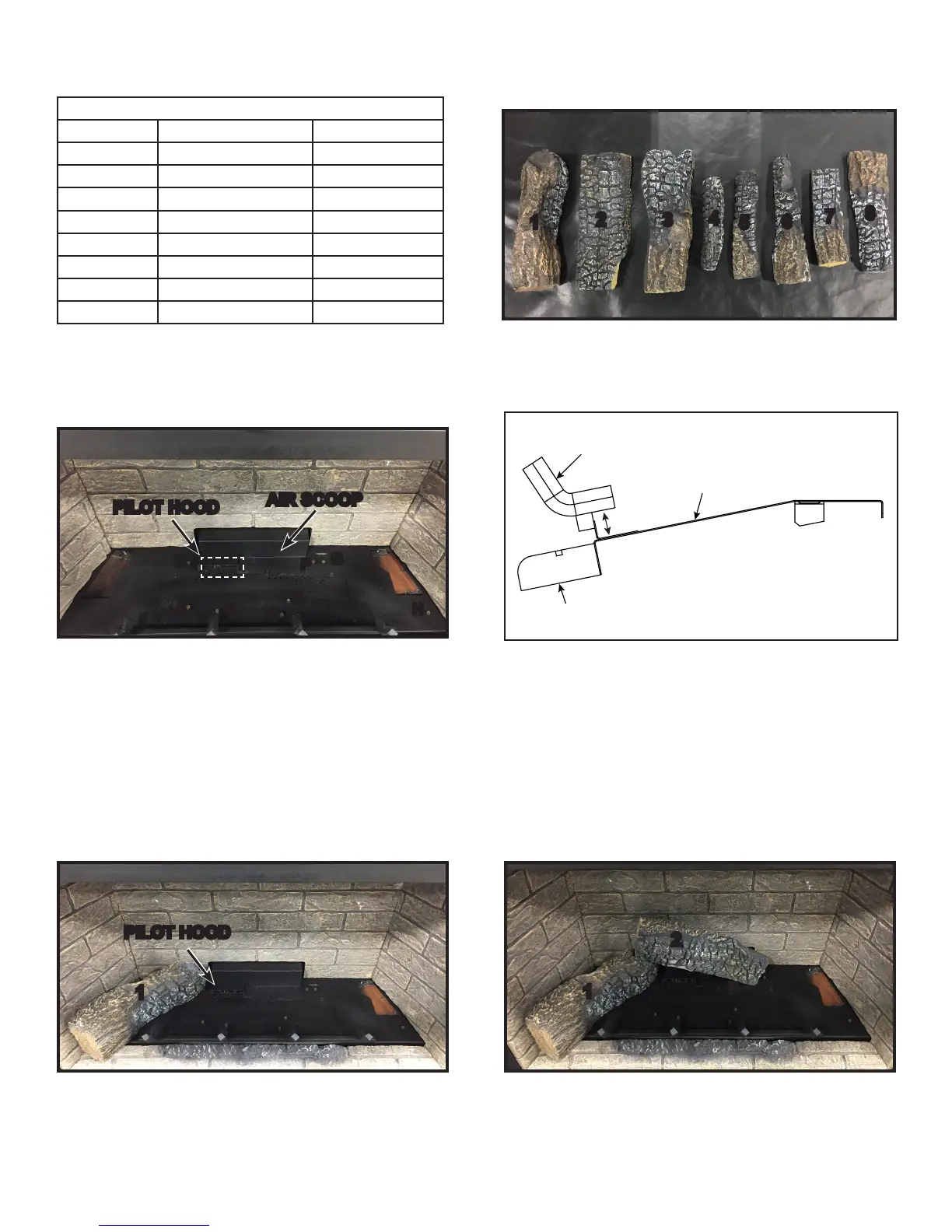

Figure 26. Empty Firebox with Front Hearth Installed
Figure 28. Log #1 Installed Figure 29. Log #2 Installed
LOG #1: Place burnout end of log #1 against the left side of pin B and the bark end between the grate and refractory. Slide
the log back until it contacts the back of the rebox. Rotate the log (bark end) clockwise unit it contacts the side refractory.
The log will be in contact with the rebox back, pin B and the side refractory. See Figure 28.
Figure 25. Log Identication - Excursion-III
1
2 3
4
5
NOTICE: To simplify the installation process, use
Figure 25 to positively identify each individual log
before beginning installation.
6
7
1
8
2
F
LOG #2: Place the bottom right end of log #2 against pin F and the left end of the log on the at spot of log #1. Push the
log back so that it contacts the air scoop. See Figure 29.
MODELS: EXCURSION-III
EXCURSION-III SRV LOGS
LOG ID SRV PART # MOLDED LOG #
1 SRV2539-711 39-1
2 SRV2539-712 39-2
3 SRV2539-713 39-3
4 SRV2539-714 39-4
5 SRV2538-715 39-5
6 SRV2539-716 39-6
7 SRV2538-717 39-7
8 SRV2539-718 39-8
GRATE
7/8 in.
BASE REFRACTORY
BASEPAN
Figure 27. Side Prole Grate Location Reference
A
B
C
D
F
G
PILOT HOOD
AIR SCOOP
E
H
1
PILOT HOOD
B
