Santa Fe NZ Pellet Stove
7068-114B
Figure 33.1

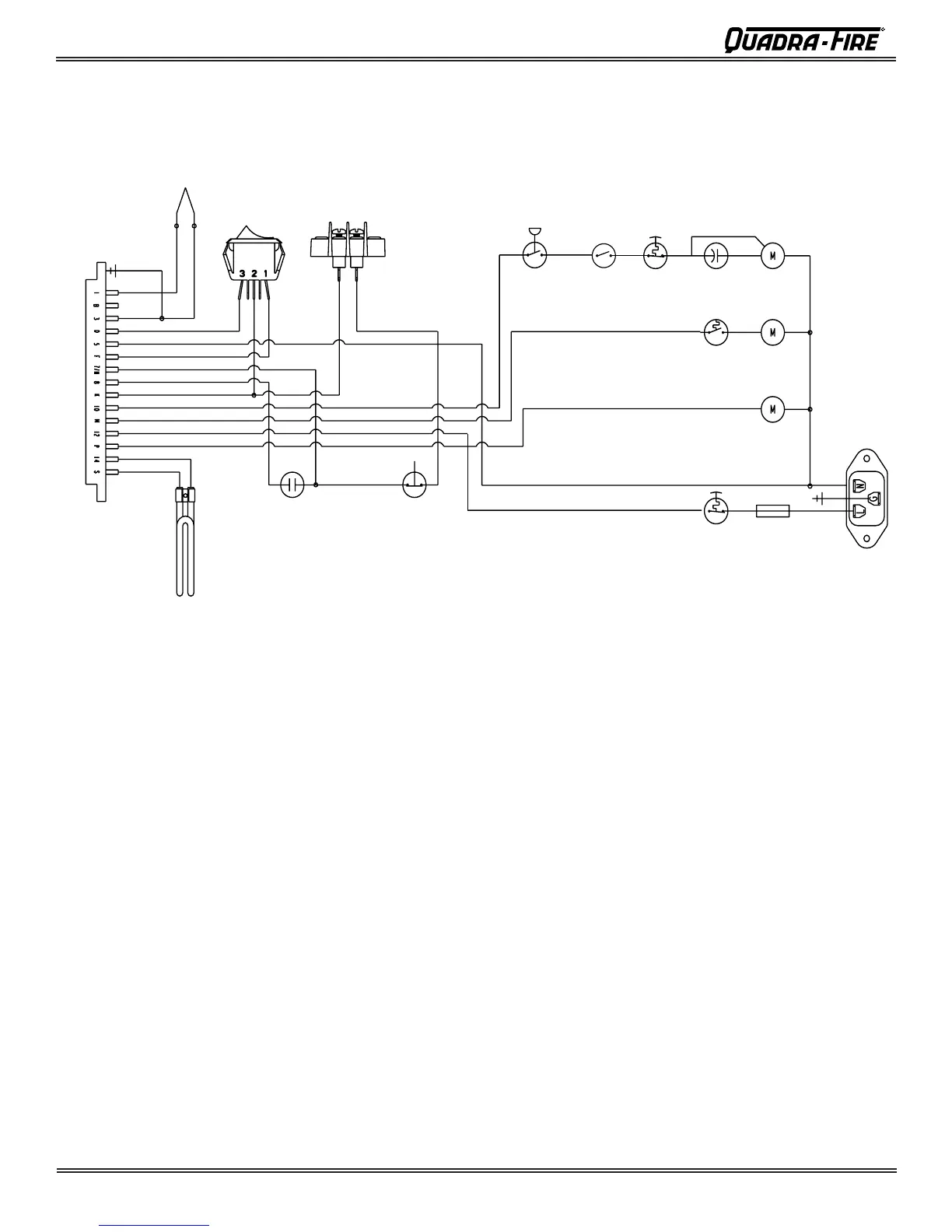

20. Wire Harness
See“Figure33.1”below.
VACUUM
SWITCH
SNAP
DISC #2
CAPACITOR FEED
MOTOR
SNAP
DISC #1
CONVECTION
BLOWER
COMBUSTION
BLOWER
SNAP
DISC #3
FUSE
RESET
BUTTON
CALL
LIGHT
THERMOSTAT
BLOCK
HEAT OUTPUT
SWITCH
THERMOCOUPLE
IGNITOR
YELLOW
YELLOW
RED
RED
ORANGE
WHITE
BLUE
BLUE
PURPLE
GRAY
BLACK
BLACK
BLACK
BLACK
HOPPER
SWITCH
