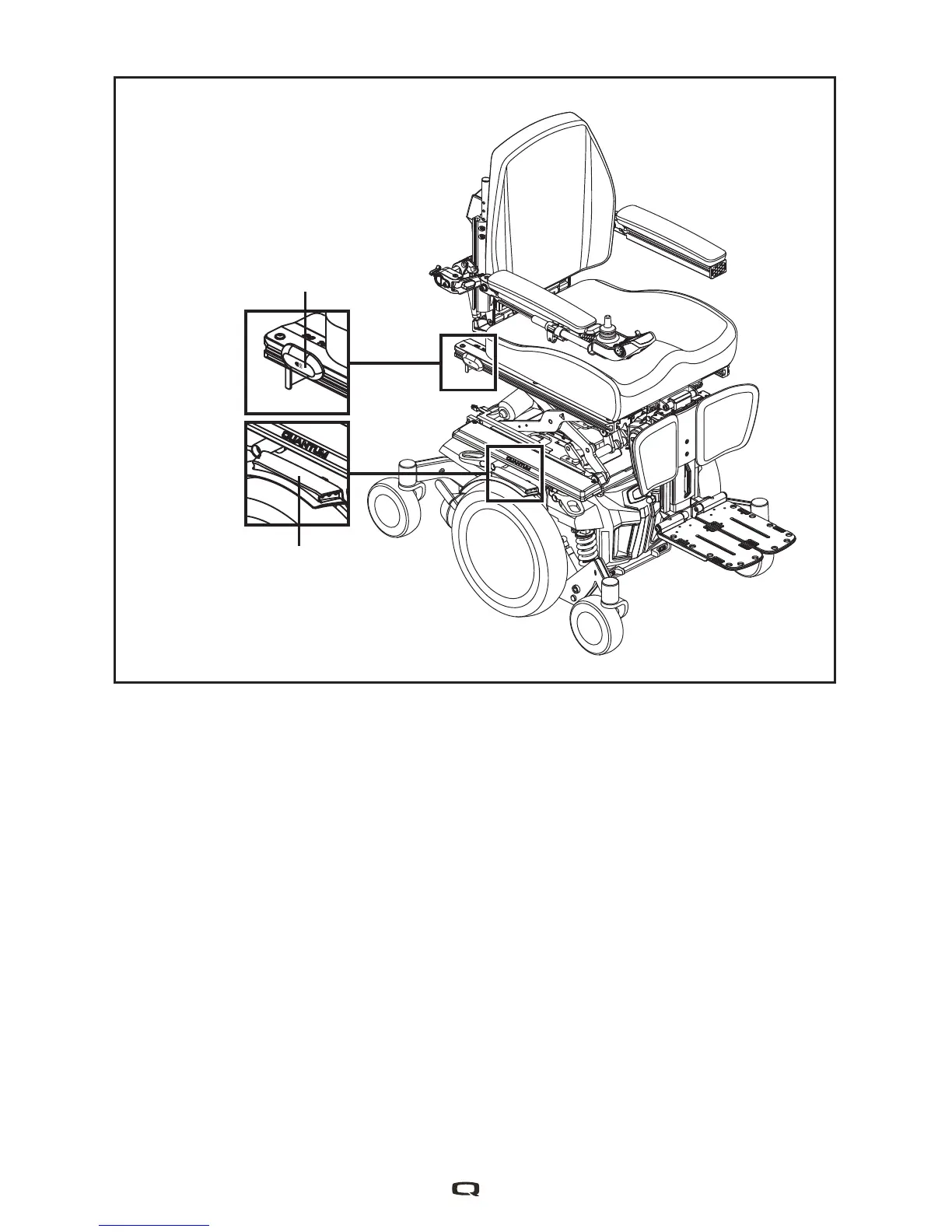

Figure 4. Q6 Edge 2.0 with Single Switch to operate Fender Lights
To activate the fender lights using the controller/single switch com-
bination:
1. Turn on the power to the controller.
2. Defl ect the joystick in any direction.
To deactivate the fender lights using the controller/single switch com-
bination:
1. Turn off the power to the controller OR press the single switch.
NOTE: If the single switch is used to turn off the lights, the single
switch must be used to turn the lights back on before the lights will
operate through the controller.
When the power chair is turned off, the fender lights will reset to the auto-
matic on/off feature, if your power chair is so equipped.
Single Switch
Fender Light (1 of 2 shown)
