1
2

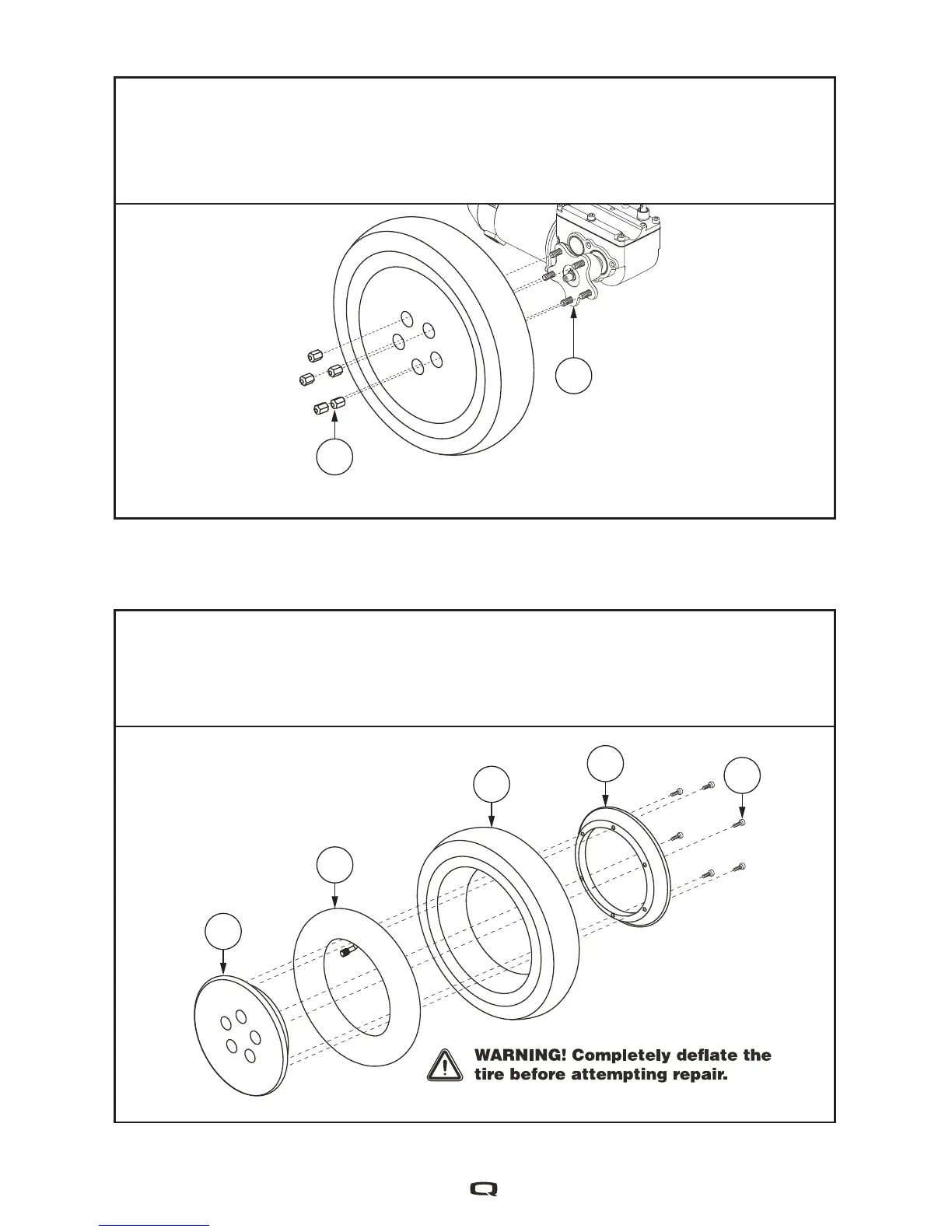

Figure 18. Q6 Edge 2.0 Drive Wheel
Figure 19. Q6 Edge 2.0 Drive Wheel Disassembled
Identifi cation Key
Identifi cation Key
1. Lug Nuts
2. Wheel Hub
1. Front Rim Half
2. Tube
3. Tire
4. Rear Rim Half
5. Screws
3
4
5
2
1
