Quantum edge 2.0 User Manual
5
of 1
of 1 rating
48 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

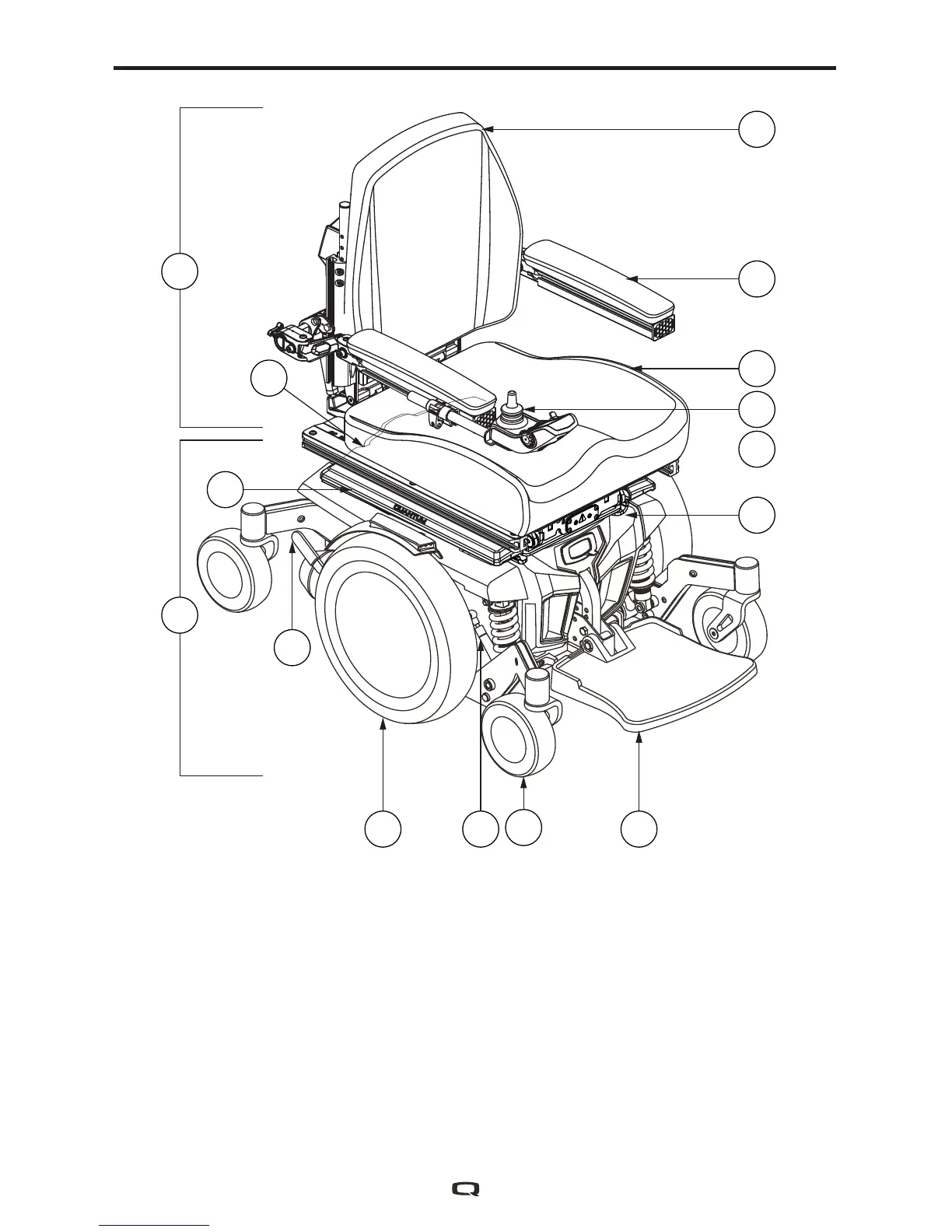

Identifi
cation K
ey
11
9
10
8
12
A
B
1
3
13
2
4
5
7
6
3
5
Table of Contents
Safety Guidelines
2
Intended Use
2
Regarding Devices for Prescription Use
2
Table of Contents
3
Identification Key
4
Introduction
6
Safety
6
Product Safety Symbols
7
General Guidelines
8
Pre-Ride Safety Check
8
The Q6 Edge 2.0 Power Chair
10
Electrical Components
10
Manual Freewheel Levers
10
Your Power Chair
10
Q6 Edge 2.0 Electrical Components
11
Manual Freewheel Lever Operation
11
Ilevel® Feature (Optional)
12
Q6 Edge 2.0 with Ilevel® Feature and Controller Indicators
13
Fender Lights (Optional)
15
Q6 Edge 2.0 with Single Switch to Operate Fender Lights
16
Initial Assembly
18
Seat Installation
18
Assembly
18
Power Elevating Seat Option
19
Transit Securement System
19
Q6 Edge 2.0 Assembly View
20
Universal Mounting System and Contour Seat
20
Transit System Securement Brackets
21
Controller Harness Routing on a TRU-Balance® 3
21
Power Elevating Seat Actuator
21
Controller Harness Routing on a Contour Seat
21
Seat Height and Seat Angle Adjustment
22
Comfort Adjustments
22
Seat Position
23
Manual Recline Seatback Adjustment
23
Seat Position Adjustment
24
Seatback Angle Adjustment
24
Seatheight/Angle Adjustment
24
Armrest Width Adjustment
24
Armrest Angle Adjustment
25
Armrest Height Adjustment
25
Controller Position
25
Seatback/Armrest Adjustment
26
Foot Platform Height Adjustment
26
Foot Platform Depth Adjustment
27
Foot Platform Angle Adjustment
27
Power Elevating Seat (Optional)
27
Foot Platform Adjustment
28
Power Elevating Seat Toggle Switch
28
Positioning Belt
28
Positioning Belt Adjustment
29
Charging the Batteries
30
Batteries and Charging
30
Battery Break-In
31
Battery Charger
32
Frequently Asked Questions (Faqs)
32
Temperature
36
Care and Maintenance
36
Daily Checks
37
Weekly Checks
38
Monthly Checks
38
Yearly Checks
39
Storage
39
Disposal of Your Power Chair
39
Cleaning and Disinfection
39
Wheel Replacement
40
Q6 Edge 2.0 Drive Wheel
41
Q6 Edge 2.0 Drive Wheel Disassembled
41
Battery Replacement
42
Battery Installation
43
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Quantum edge 2.0 and is the answer not in the manual?
Ask a question
Quantum edge 2.0 Specifications
General
Turning Radius
24 inches
Weight Capacity
300 lbs
Per-Charge Range
15 miles
Width
25 inches
Seat Depth
16 inches
