Seatback Angle Adjustment
If your power chair is equipped with an adjustable seatback, you can adjust
it to four (4) different angles: 90, 102, 105, or 107.
To adjust the seatback angle:
1. Remove the adjusting screws from each seat hinge. See fi gure 13.
2. Set the seatback at the desired angle.
3. Reinstall the adjusting screws to each seat hinge and tighten.
Armrest Width Adjustment
You can change each armrest’s width independently of the other.
NOTE: Changing the armrest width may increase the overall width of
your power chair.

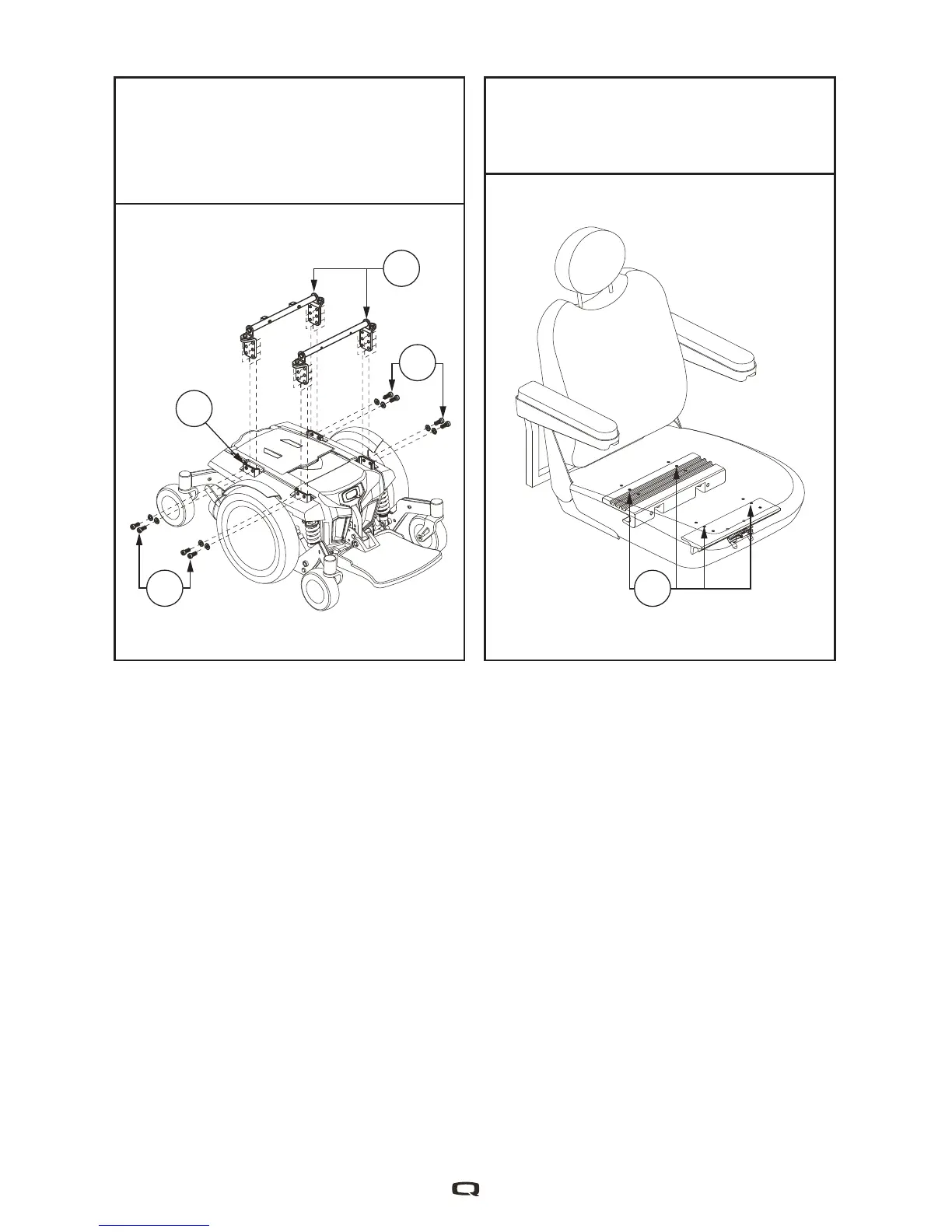

Figure 11. Seat Height/Angle
Adjustment
Figure 12. Seat Position Adjustment
Identifi cation Key Identifi cation Key
1. Seat Interface Weldment
2. Trapeze Bars
3. Hardware
1. Seat Mounting Holes
1
2
3
3
1
