Ball Return Installation Manual
–
612
-
860
-
010
12
Rev. Date
10/07
I
NSTALLING THE
B
ASE
1.
To install the base, measure
8.25
” from the
side plate of the ball lift
towards foul line
and draw a line perpendicular to the centerline. Mark 5
-
3
/
8
”
as shown in figure
8
on
either side of the centerline o
n the line, and drill 5/16
-
inch pilot holes at the two
locations.
2.
Position the base (252
-
002
-
130) over the cutout so the centerline of the base aligns
with the centerline you drew on the approach
.
3.
Ensure the base is parallel to the Ball Lift and secure th
e base to the approach using
2
of the 4 lag screws (810
-
564
-
480
) and
washers
(945
-
867
-
242)
provided
.
4.
Mark the locations for the back holes, and drill 5/16
-
inch pilot holes
in the rear trap
door at the marked locations.
Secure the base with
the
remaining la
g screws and
washers.
5.
The hood is secured to the base by tabs on the base that snap into slots on the
hood. The hood is attached to the access panel which, in turn, is held in place by a
three
-
way bracket that connects the ball rack, ball lift, and hood to
gether.
Wait until
after the Control Box and ball rack are installed to complete the hood installation.
I
NSTALLING THE
B
ALL
L
IFT
C
ONTROL
B
OX
1.
The control box is
to be
installed inside the base.
To
install the control box, remove the screws
that
secure
t
he
cover
of the control box and remove the
cover
.
2.
Position the control box
on the base
as shown in
figure
9
and fasten it with the four screws (809
-
849
-
165) and washers
(951
-
148
-
008) provided.
3.
Connect the cables to the control box as indicated
in
the drawi
ng inside the control box cover.
Refer to
“Connecting the Wiring”
section of this manual.
4.
Reinstall
the
control box
cover.

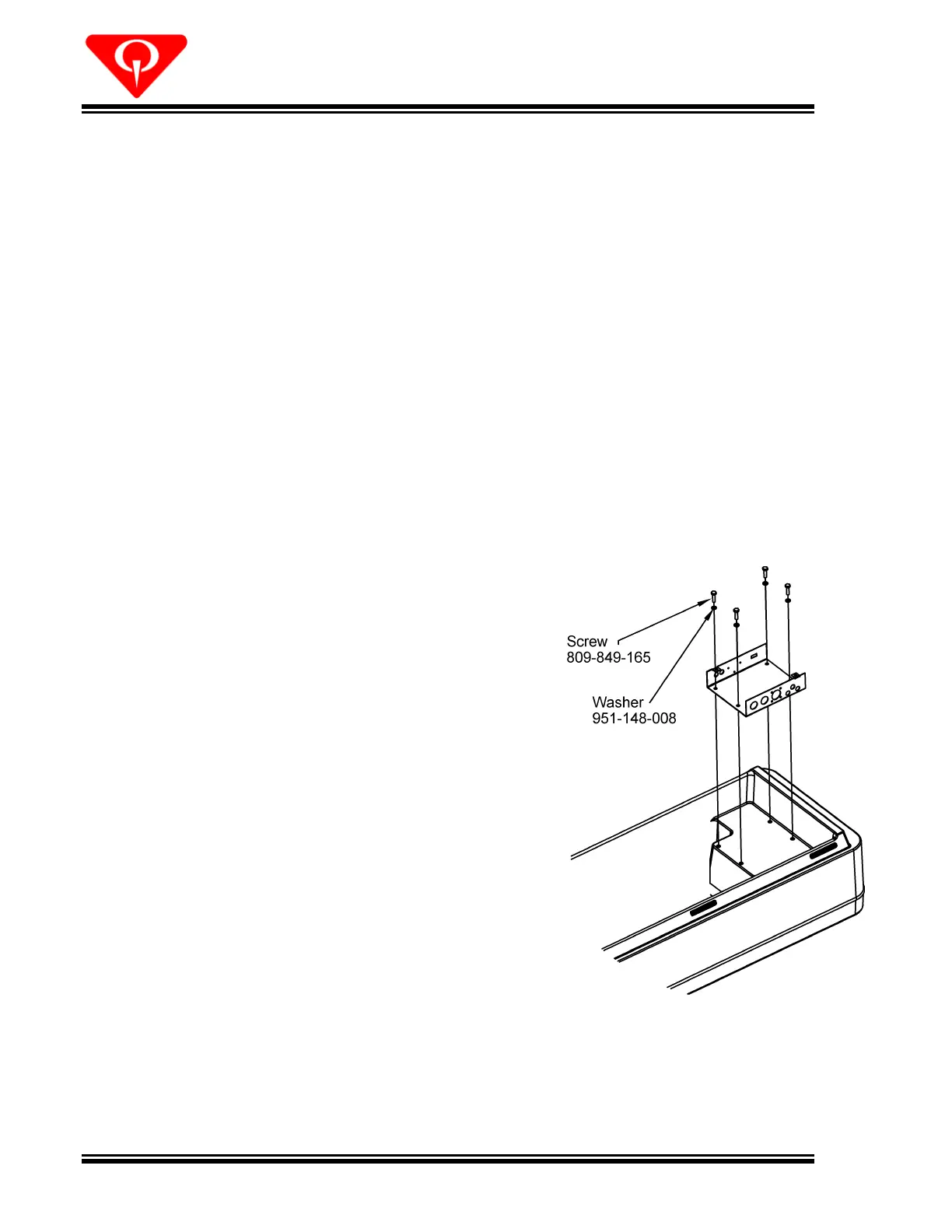

Figure
9,
Control Box Installation
