GL100 User manual

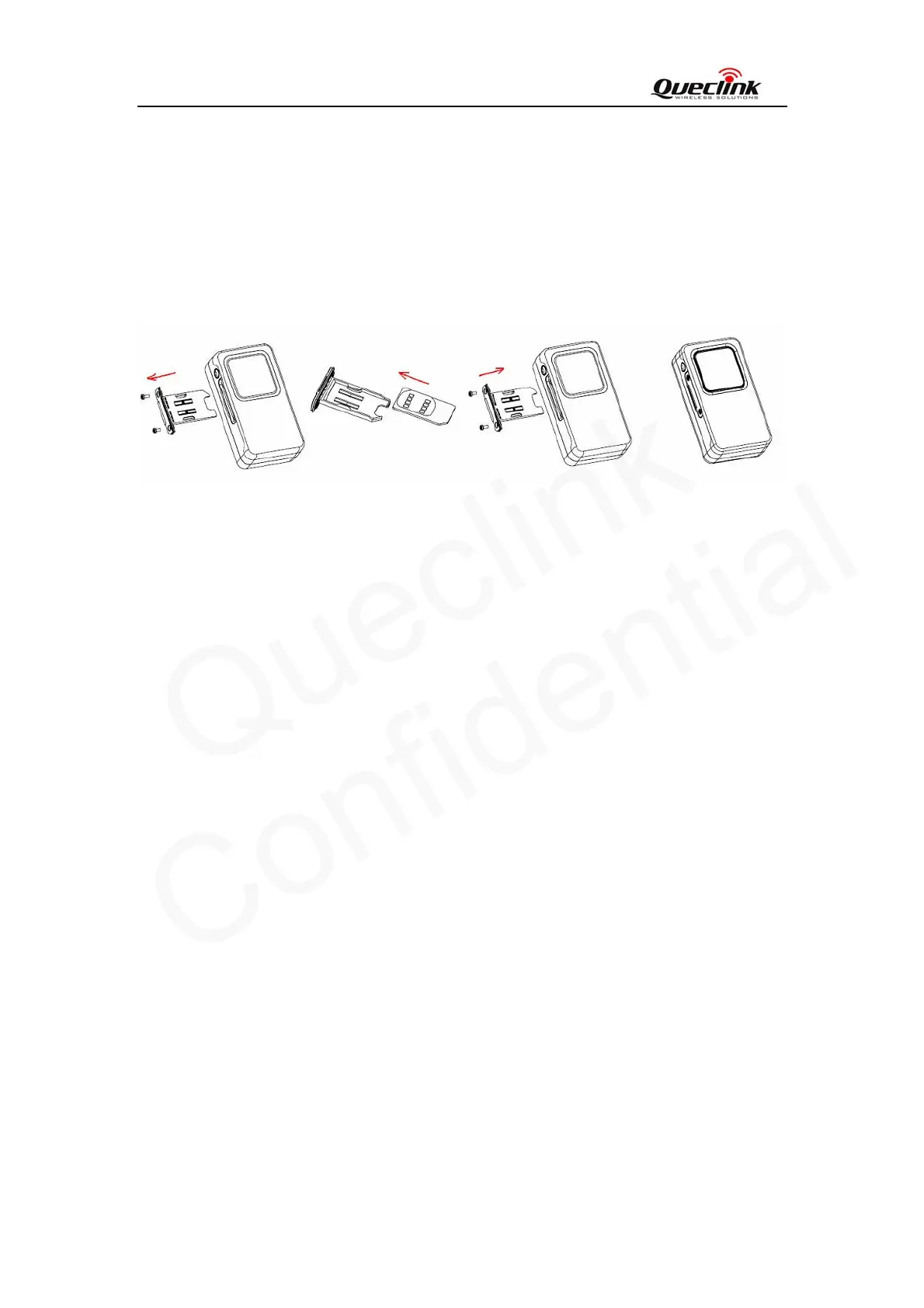

3.3. Install SIM Card
z Use a screw driver to twist off the two screws on the side of GL100.
z Then remove the screws and SIM cover.
z Insert the SIM card into the SIM cover according to the direction shown.
z Finally, put the SIM cover into the SIM slot and tighten screws.
3.4. Turn on/Turn off
z Turn on: Press the Power key at least 3 seconds and release it to turn on GL100. At the same
time, Red LED 1 will light on for 2~3 seconds. Then Green LED 1 starts to blink quickly
which means searching the GSM network. After the GSM network is registered, it turns to be
slow blinking.
z Turn off: Press the Power key at least 3 seconds; Red LED 1 will light on for 2~3 seconds
and then turn off, it indicates that GL100 is turned off. Please note the end-user can not power
off GL100 when the power key is disabled by protocol.
3.5. Operating on function key
z First please make sure the function key is enabled.
z When the function key is in Geo-Fence mode and the function key is enabled. To double press
the function key in 2 seconds will enable/disable the Geo-Fence 0.
Note: “Check interval”, “Central Point” and “Radius” of Geo-Fence0 shall be preset.
z When the function key is in SOS mode, Press the function key for 3 seconds, then GL100 will
report a +RESP:GTSOS message which includes the position information to the backend
server.
TRACGL100UM002 - 10 -
