Queclink GV300CAN User Manual

GV300CAN User Manual
TRACGV300CANUM001 - 10 -

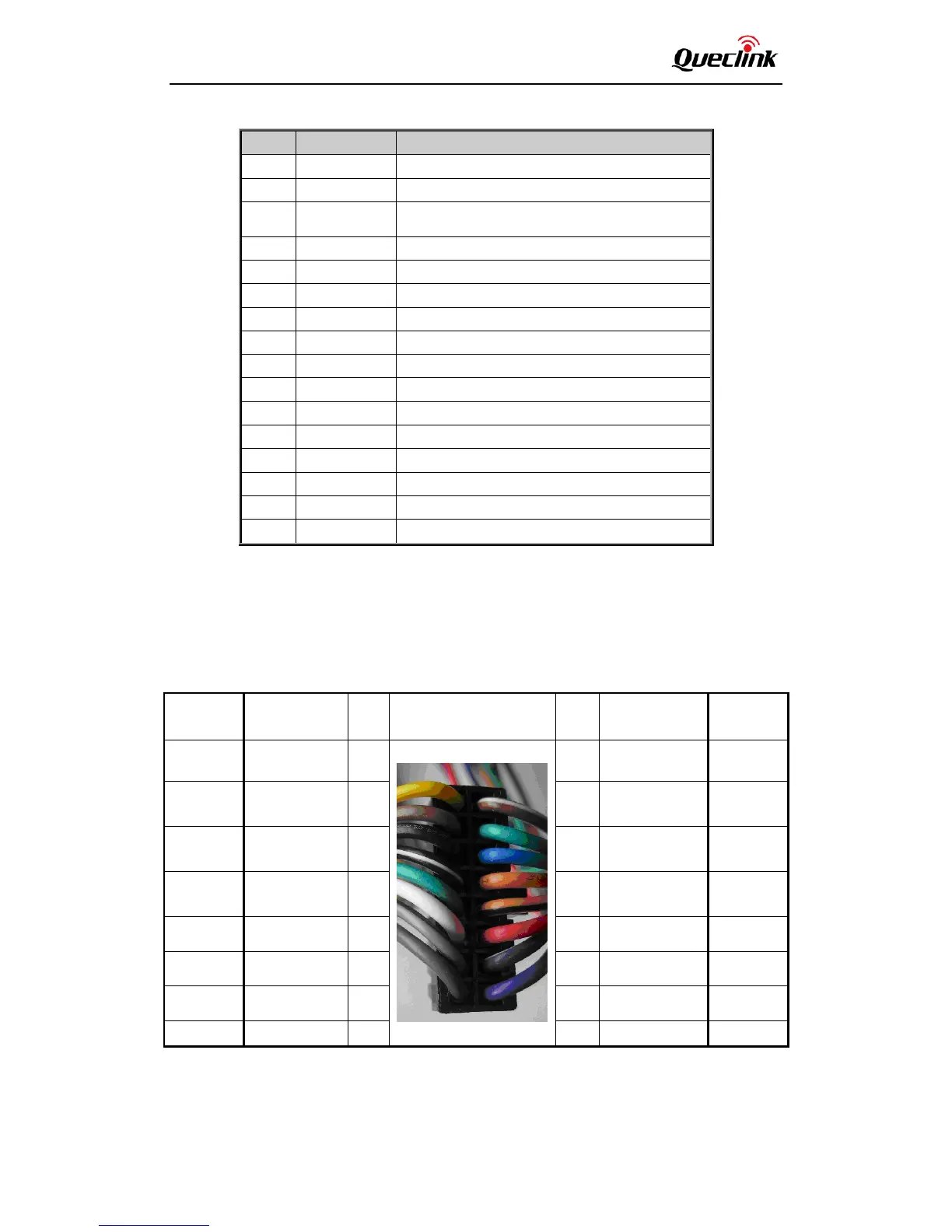

Table 4. Description of 16 PIN Connections
Index
Description
Comment
1
CAN_H
CAN BUS output H
2
CAN_L
CAN BUS output L
3
IGN
Ignition input, positive trigger
4
RXD
UART RXD, RS232
5
TXD
UART TXD, RS232
6
GND
Power and digital ground
7
DATA_1W
1-Wire DATA
8
OUT2
Open drain, 150 mA max
9
J1708_A
J1708 BUS output A
10
J1708_B
J1708 BUS output B
11
VIN
External DC power input, 8-32V
12
IN2
Digital input, negative trigger
13
IN1
Digital input, negative trigger
14
OUT1
Open drain, 150 mA max ,with latch circuit
15
VDD_1W
1-wire device power output
16
ADC_IN
ADC input
2.4. GV300CAN User Cable Color
Table 5. GV300CAN User Cable Color Definition
Definition
Color
PIN
No
Cable
PIN
No
Color
Definition
OUT2
Yellow
8
16
Brown/White
ADC_IN
DATA_1W
Brown
7
15
Green
VDD_1W
GND
Black
6
14
Blue
OUT1
TXD
White/Black
5
13
Orange
IN1
RXD
Pink
4
12
Orange/Black
IN2
IGN
White
3
11
Red
VIN
CAN_L
Gray/Black
2
10
Purple/White
J1708_B
CAN_H
Gray
1
9
Purple
J1708_A
