3.6. Install the External GPS Antenna (Optional)
There is a SMA GPS antenna connector on GV300CAN. The GV300CAN will automatically detect
and use an external antenna when connected.

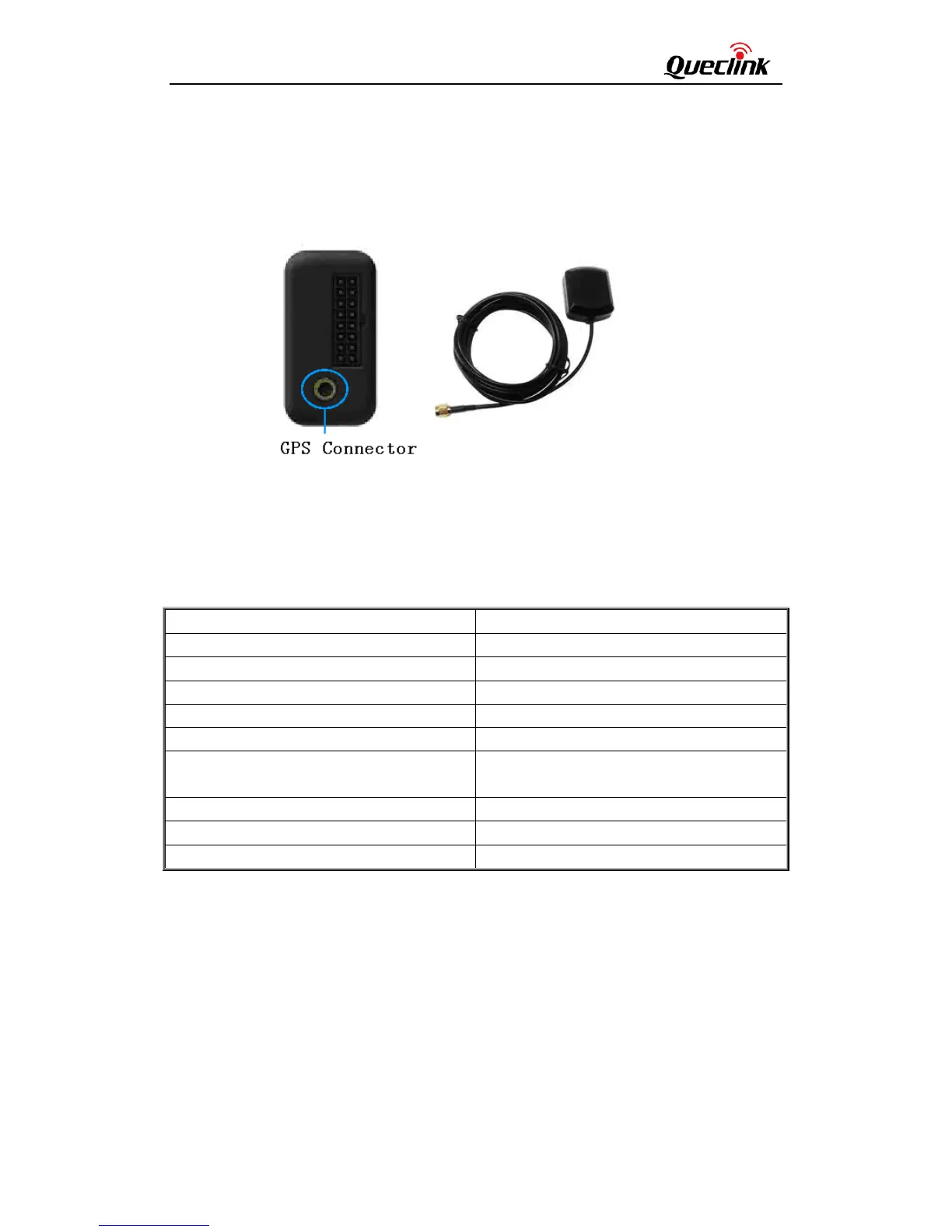

Figure 7.
GPS Antenna of GV300CAN
3.6.1. GPS Antenna Specification
Table 6. GPS Antenna Specification
GPS antenna
Specification
Frequency
1575.42 MHz
Bandwidth
>5 MHz
Beam width
>120 deg
Supply voltage
2.7V-3.3V
Polarization
RHCP
Gain
Passive: 0 dBi min
Active: 15 dB
Impedance
50Ω
VSWR
<2
Noise figure
<3
3.7. Power Connection
VIN (PIN11)/GND (PIN6) is the power input pin. The input voltage range for this device is from 8V
to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V systems
without the need for external transformers.
