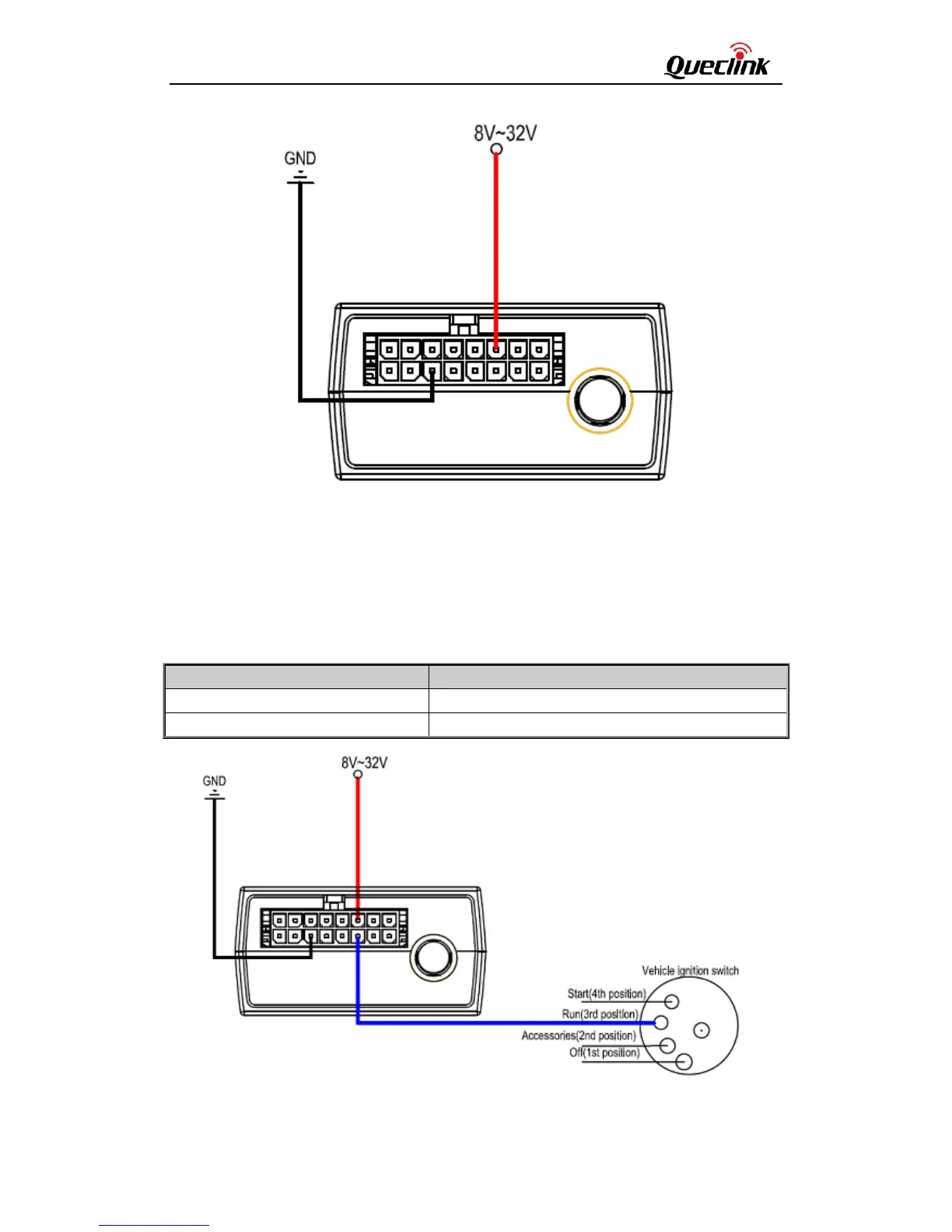

Figure 8.
Typical Power Connection
3.8. Ignition Detection
Table 7. Electrical Characteristics of Ignition Detection
Logical status
Electrical characteristics
Active
5.0V to 32V
Inactive
0V to 3V or open
Figure 9. Typical Ignition Detection
