3. Get Started
3.1. Open the Case

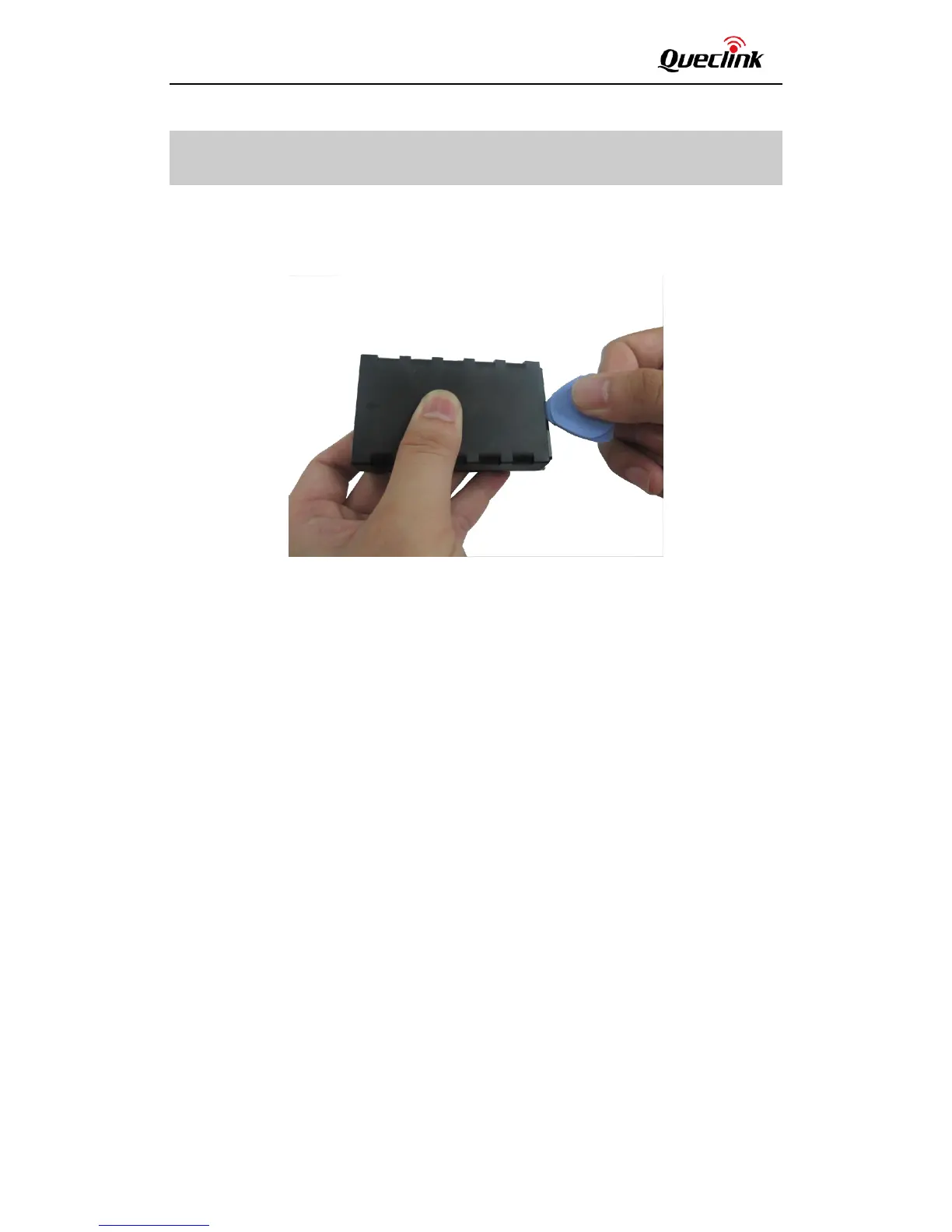

Figure 3. Open the Case
Insert the triangular-pry-opener into the gap of the case as shown above, and push the opener
up until the case is unsnapped.
3.2. Close the Case
Place the cover on the bottom in the position as shown in the figure above. Slide the cover
against the direction of the arrow until it snaps.
