GV300CAN User Manual
TRACGV300CANUM001 - 9 -

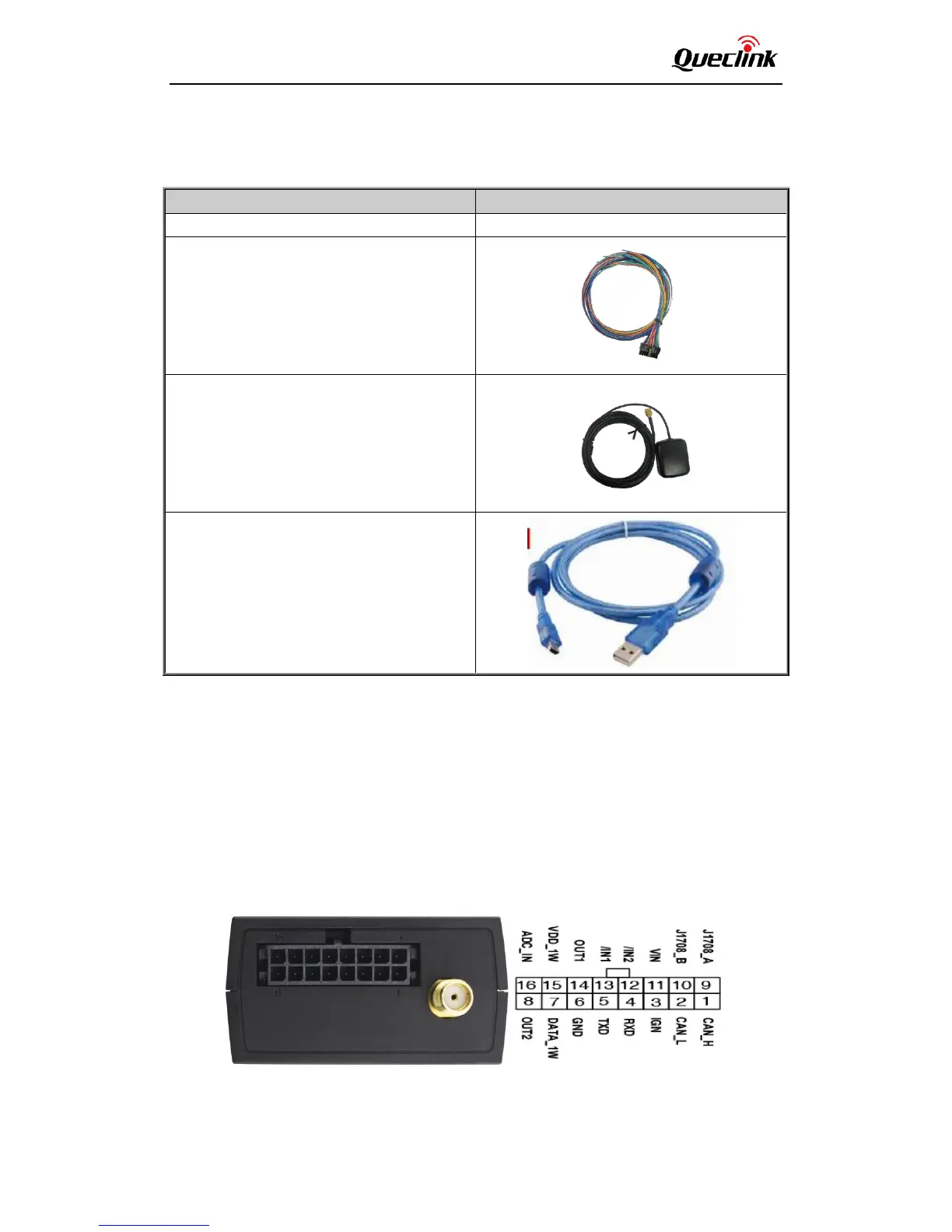

2.2. Parts List
Table 3. Parts List
Name
GV300CAN Locator
80*49*26 mm
User Cable
GPS Antenna (Optional)
MiniUSB_DATA_CABLE_1.5M (Optional)
2.3. Interface Definition
The GV300CAN has a 16 PIN interface connector which contains the connections for power, I/O,
RS232, CAN, J1708, 1-wire, etc. The sequence and definition of the 16PIN connector are shown in
the following figure:
Figure 2. The 16 PIN Connector on the GV300CAN
