3.10. Analog Inputs
There are one analog input on GV300CAN, The analog input voltage range could be
selectable, Including 0-12V and 0-30V, and the default range is from 0 to 30V. The
following diagram shows the recommended connection.

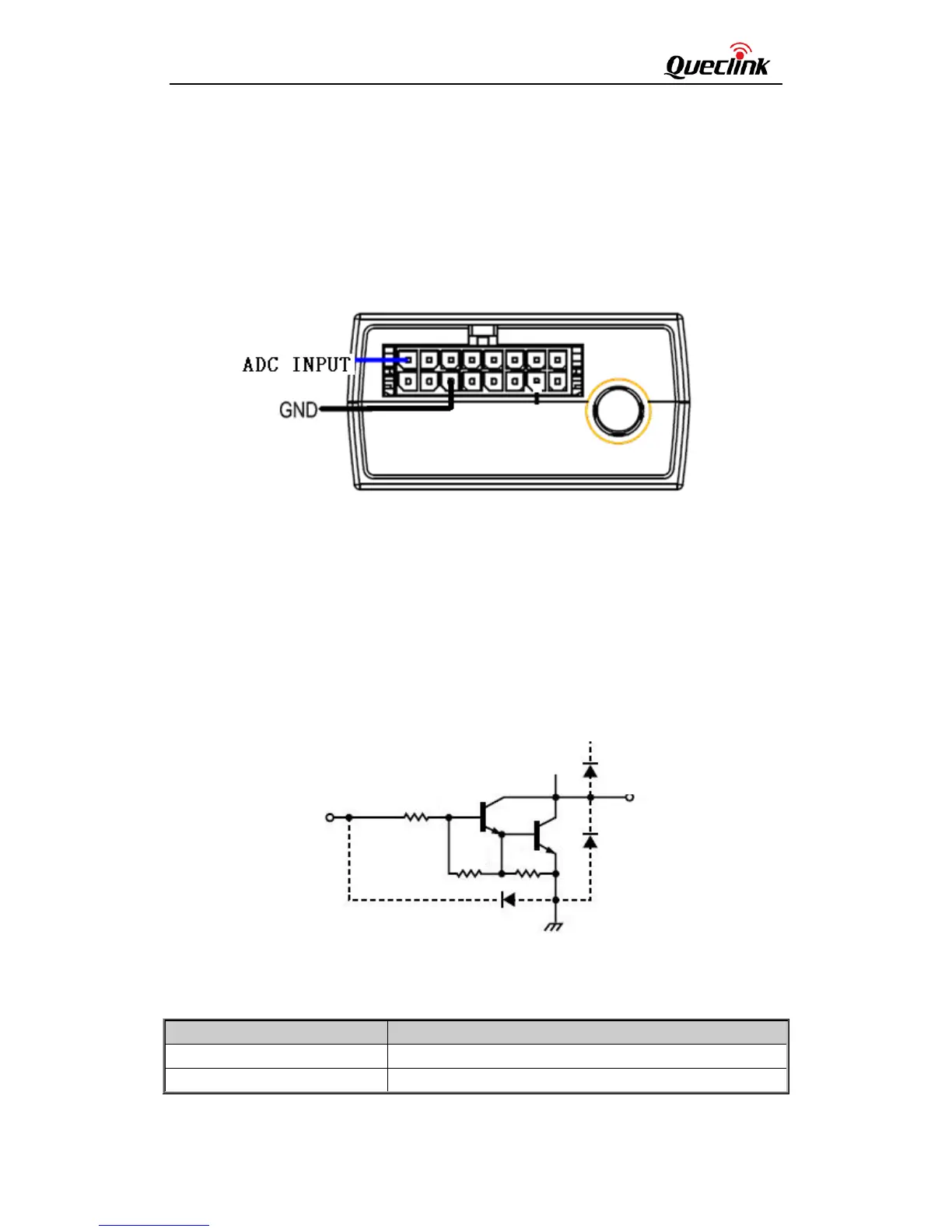

Figure 11. Typical Analog Input Connection
3.11. Digital Outputs
There are two digital outputs on GV300CAN. All are of open drain type and the maximum drain
current is 150 mA. Each output has the built-in over current PTC resettable fuse.
Figure 12. Digital Output Internal Drive Circuit
Table 9. Electrical Characteristics of Digital Outputs
