M10 Hardware Design
7 Mechanics
This chapter describes the mechanical dimensions of the module.
7.1 Mechanical dimensions of module

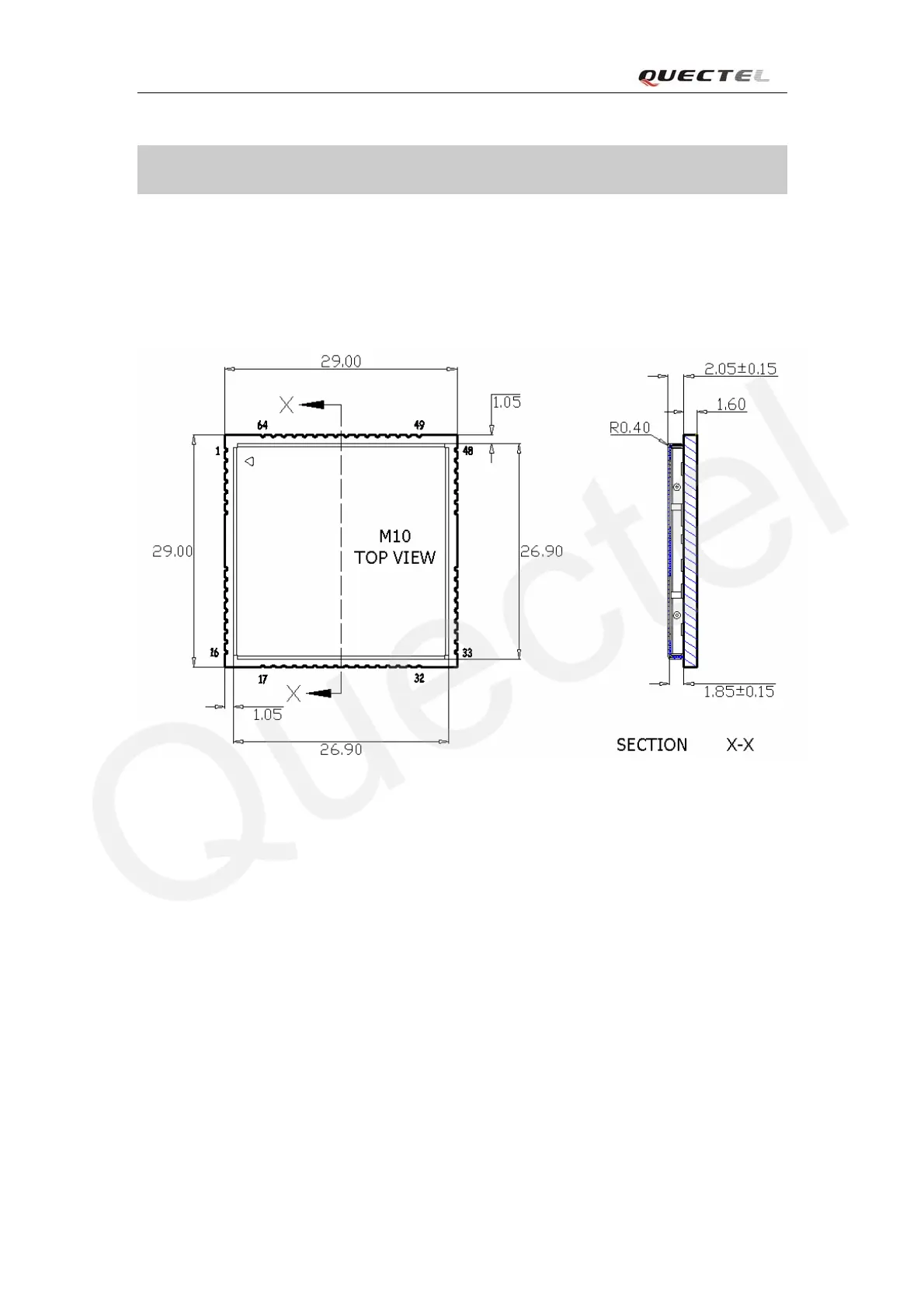

Figure 38: M10 TOP and SIDE dimensions（Unit: mm）
M10_HD_V1.00 - 65 -
