M10 Hardware Design
M10
BOTTOM VIEW
test point
Figure 39:

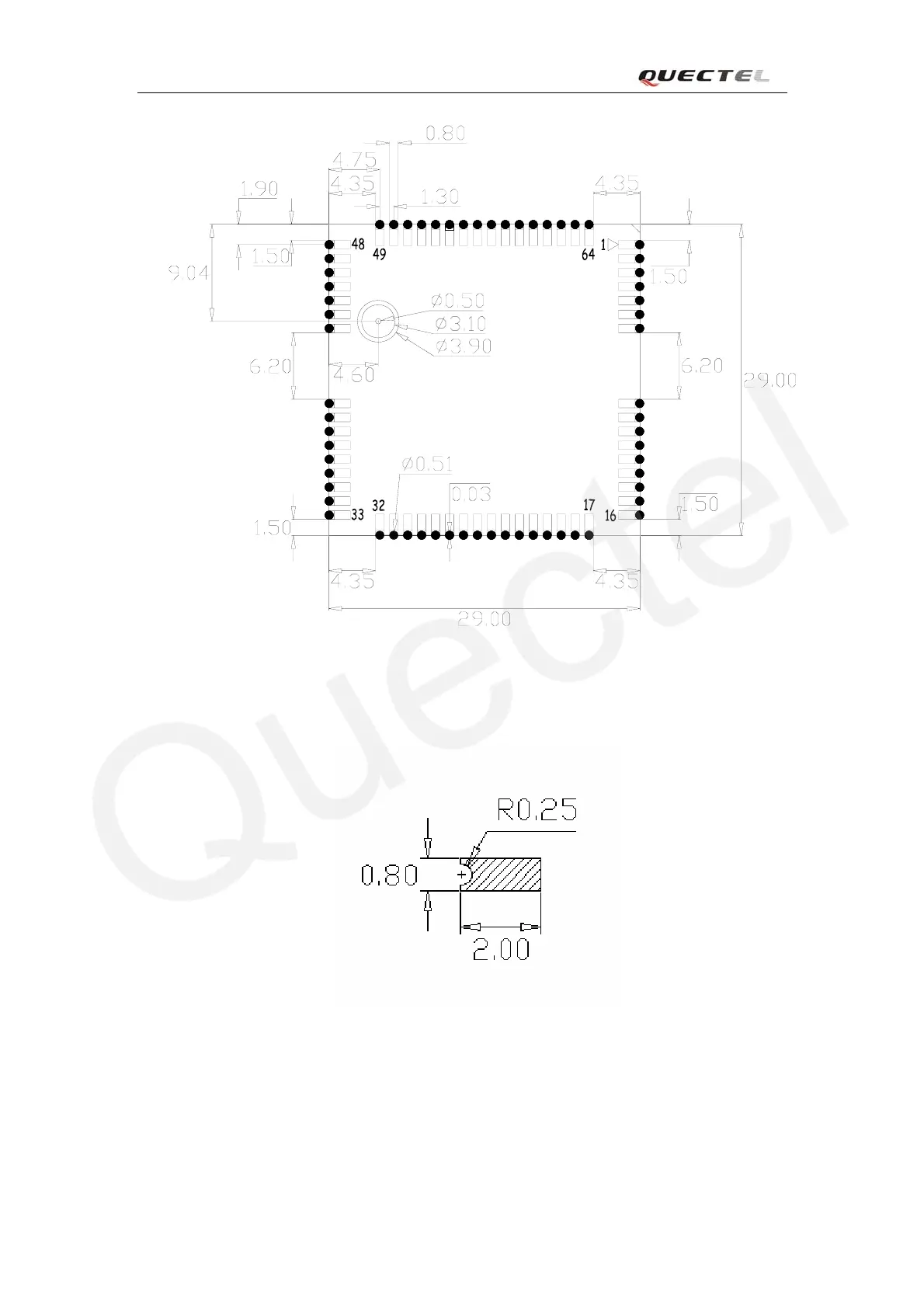

M10 bottom dimensions（Unit: mm）
Figure 40: PAD bottom dimensions（Unit: mm）
M10_HD_V1.00 - 66 -
