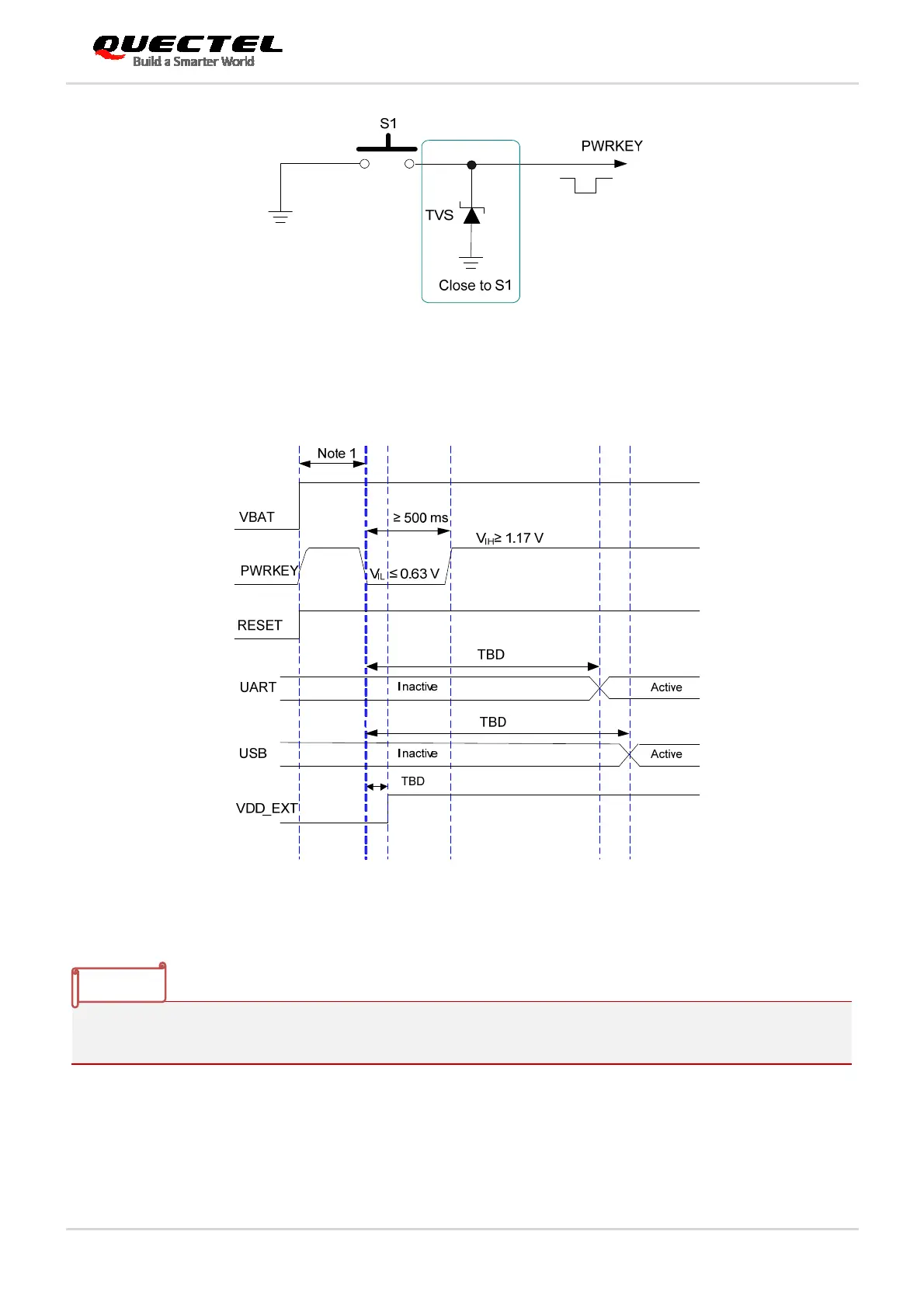

Figure 11: Turn on the Module Using Keystroke
The power on scenario is illustrated in the following figure.
Figure 12: Power-on Timing
1. Please make sure that VBAT is stable for at least 30 ms before pulling down PWRKEY pin.
2. It is recommended to use an external OD/OC circuit to control the PWRKEY pin.
