Quectel QuecOpen AG525R-GL

Automotive Module Series
AG525R-GL QuecOpen
Hardware Design
AG525R-GL_QuecOpen_Hardware_Design 94 / 104

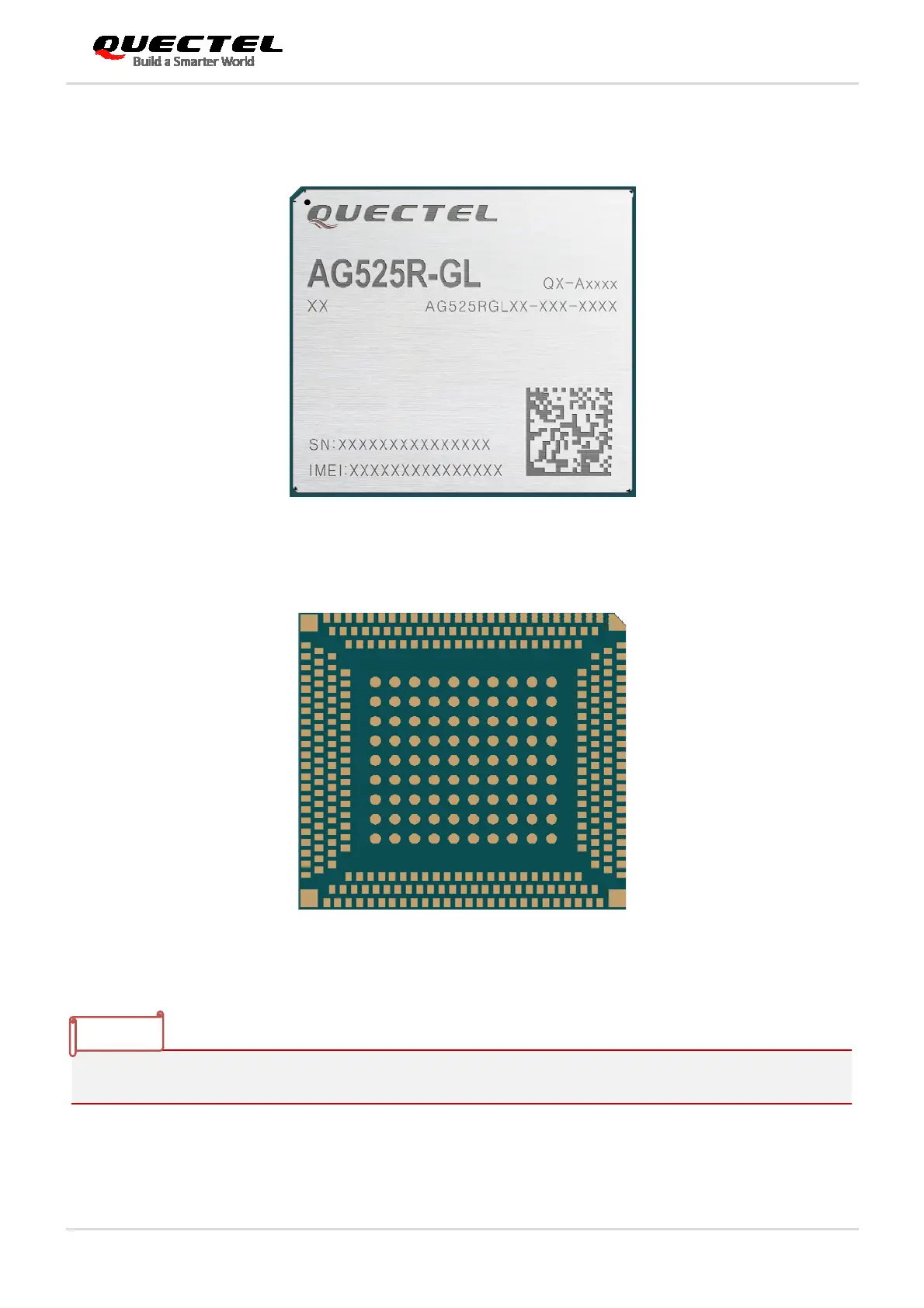

6.3. Top and Bottom Views
Figure 42: Top View of the Module
Figure 43: Bottom View of the Module
These are renderings of the module. For authentic appearance, see the module received from Quectel.
NOTE
