Automotive Module Series
AG525R-GL QuecOpen
Hardware Design
AG525R-GL_QuecOpen_Hardware_Design 93 / 104
6.2. Recommended Footprint

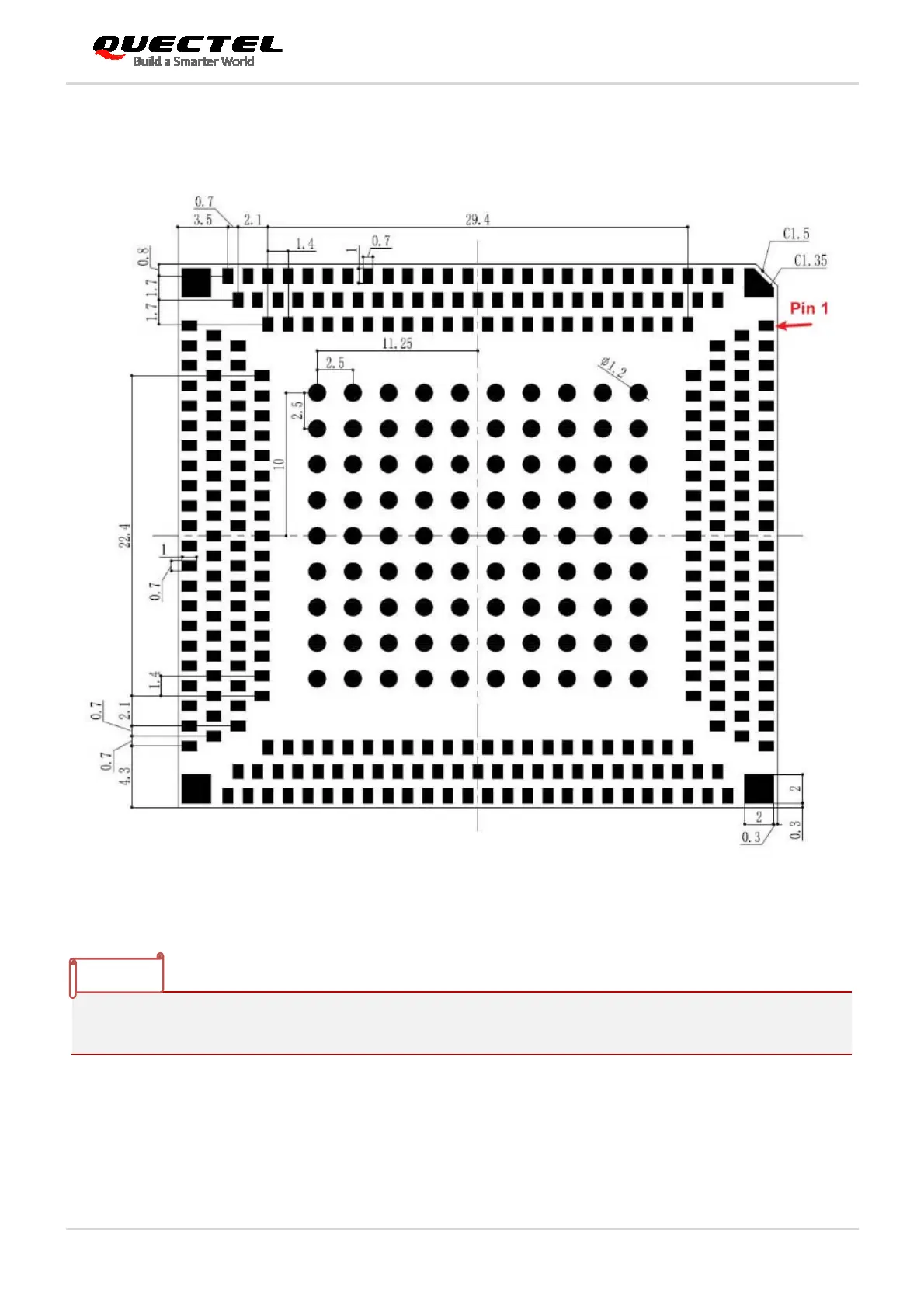

Figure 41: Recommended Footprint (Top View)
For convenient maintenance of the module, please keep about 3 mm between the module and other
components on the motherboard.
