Automotive Module Series
AG525R-GL QuecOpen
Hardware Design
AG525R-GL_QuecOpen_Hardware_Design 76 / 104
4.2.2. Recommended RF Connector for Antenna Installation
If RF connector is used for antenna connection, it is recommended to use the HFM connector provided by
Rosenberger.

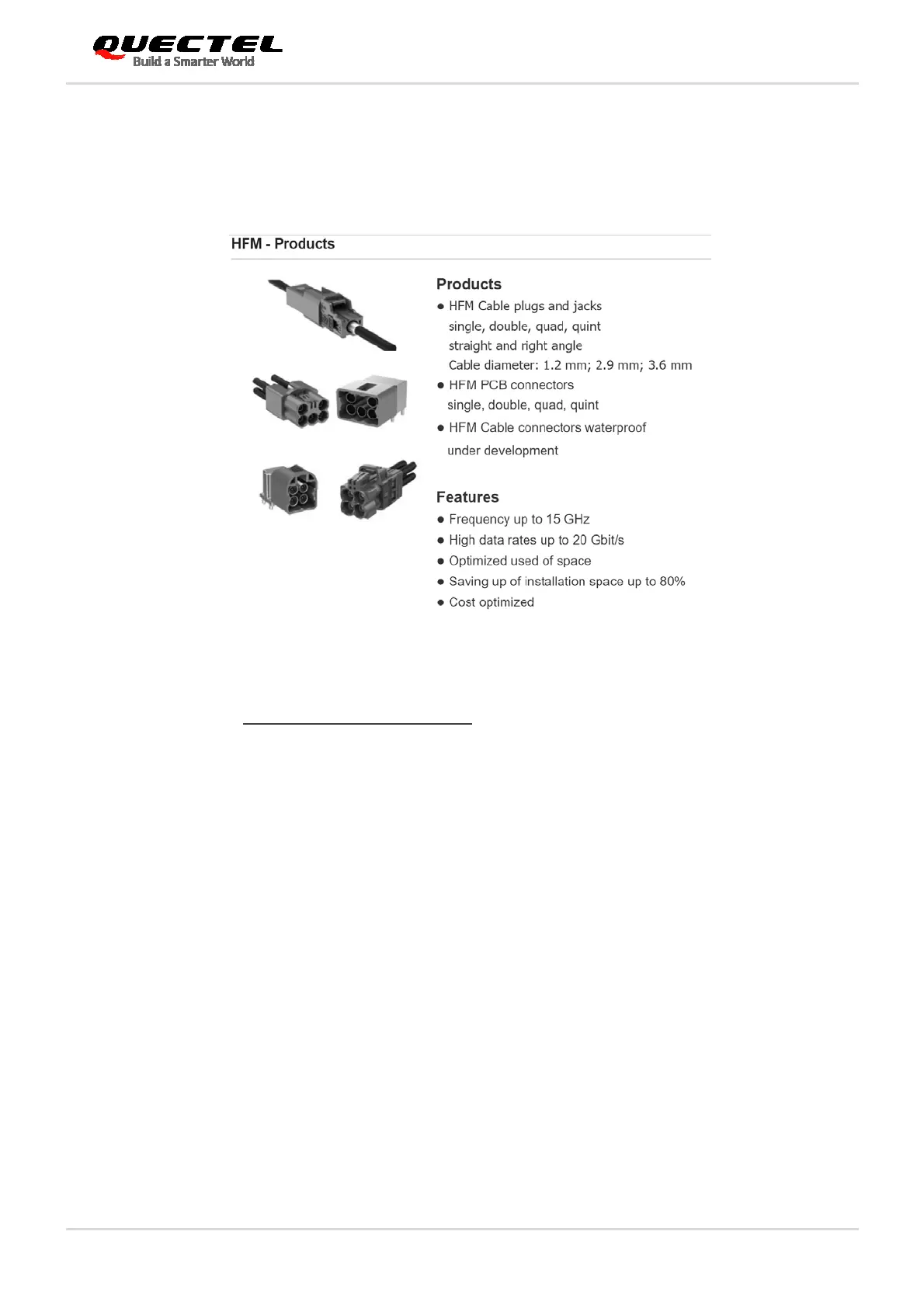

Figure 36: Description of the HFM Connector
For more details, visit https://www.rosenbergerap.com
.
