6 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.05 mm unless otherwise specified.
6.1. Mechanical Dimensions

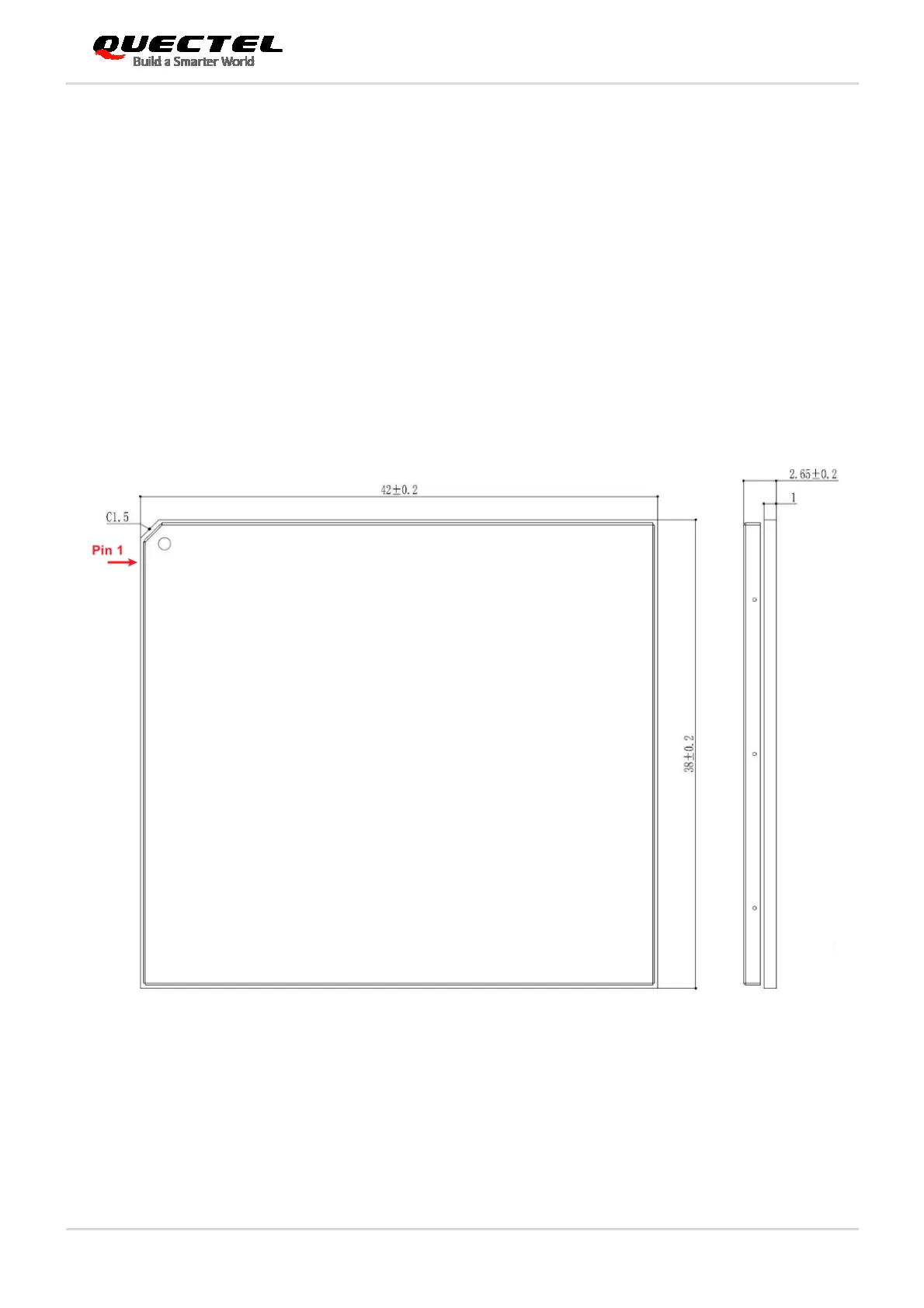

Figure 39: Module Top and Side Dimensions
