Automotive Module Series
AG525R-GL QuecOpen
Hardware Design
AG525R-GL_QuecOpen_Hardware_Design 92 / 104

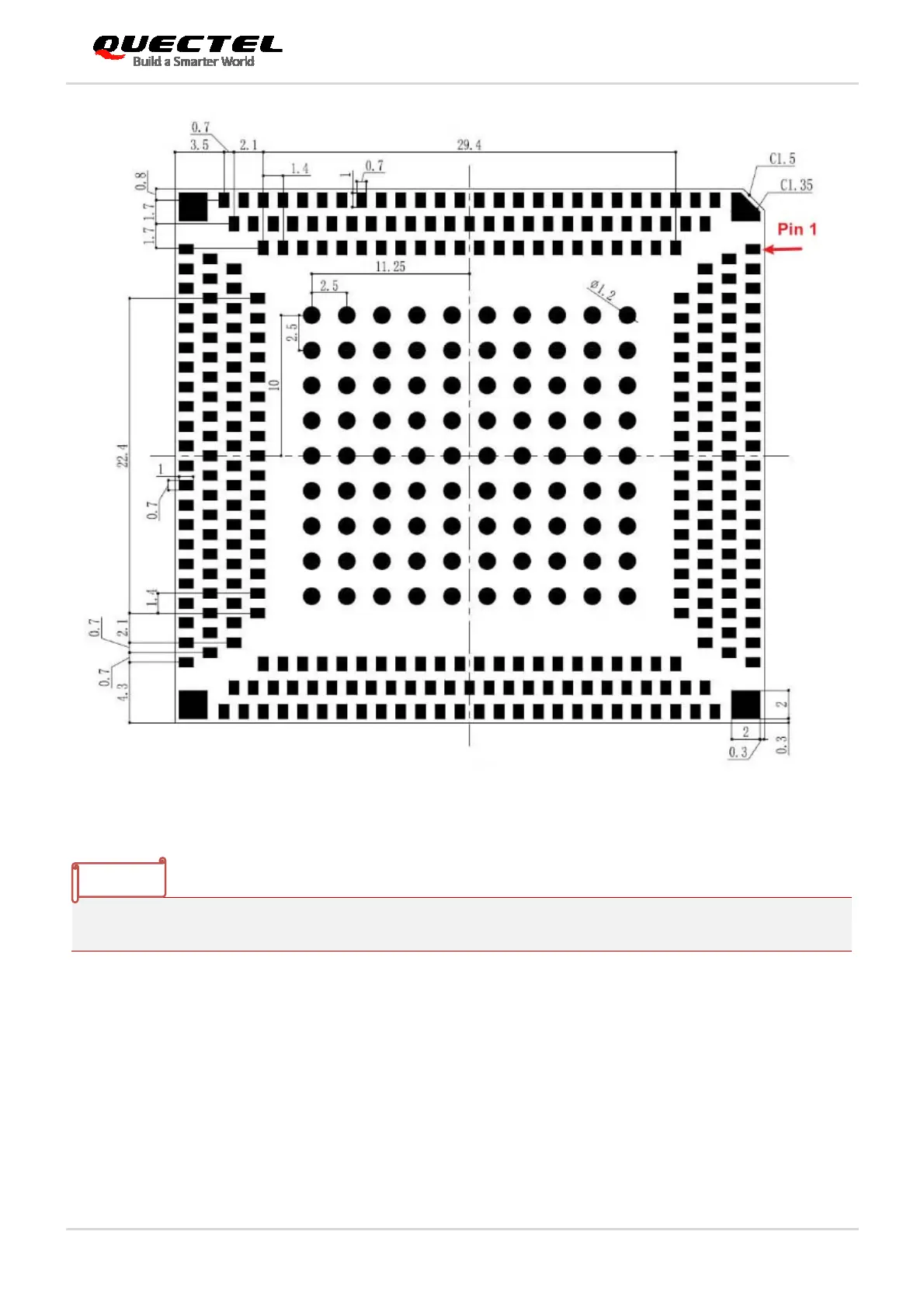

Figure 40: Module Bottom Dimensions (Top View)
The package warpage level of the module conforms to JEITA ED-7306 standard.
NOTE
