Automotive Module Series
AG525R-GL QuecOpen
Hardware Design
AG525R-GL_QuecOpen_Hardware_Design 49 / 104
Table 10: RESET Pin Description
Pin Name Pin No. Description DC Characteristics Comment
RESET 8 Reset the module
V
IH
max = 1.89 V
V
IH
min = 1.17 V
V
IL
max = 0.63 V
The recommended circuit is similar to the PWRKEY control circuit. An open drain/collector driver or button
can be used to control the RESET.
Reset pulse
RESET
4.7K
47K
370–620 ms

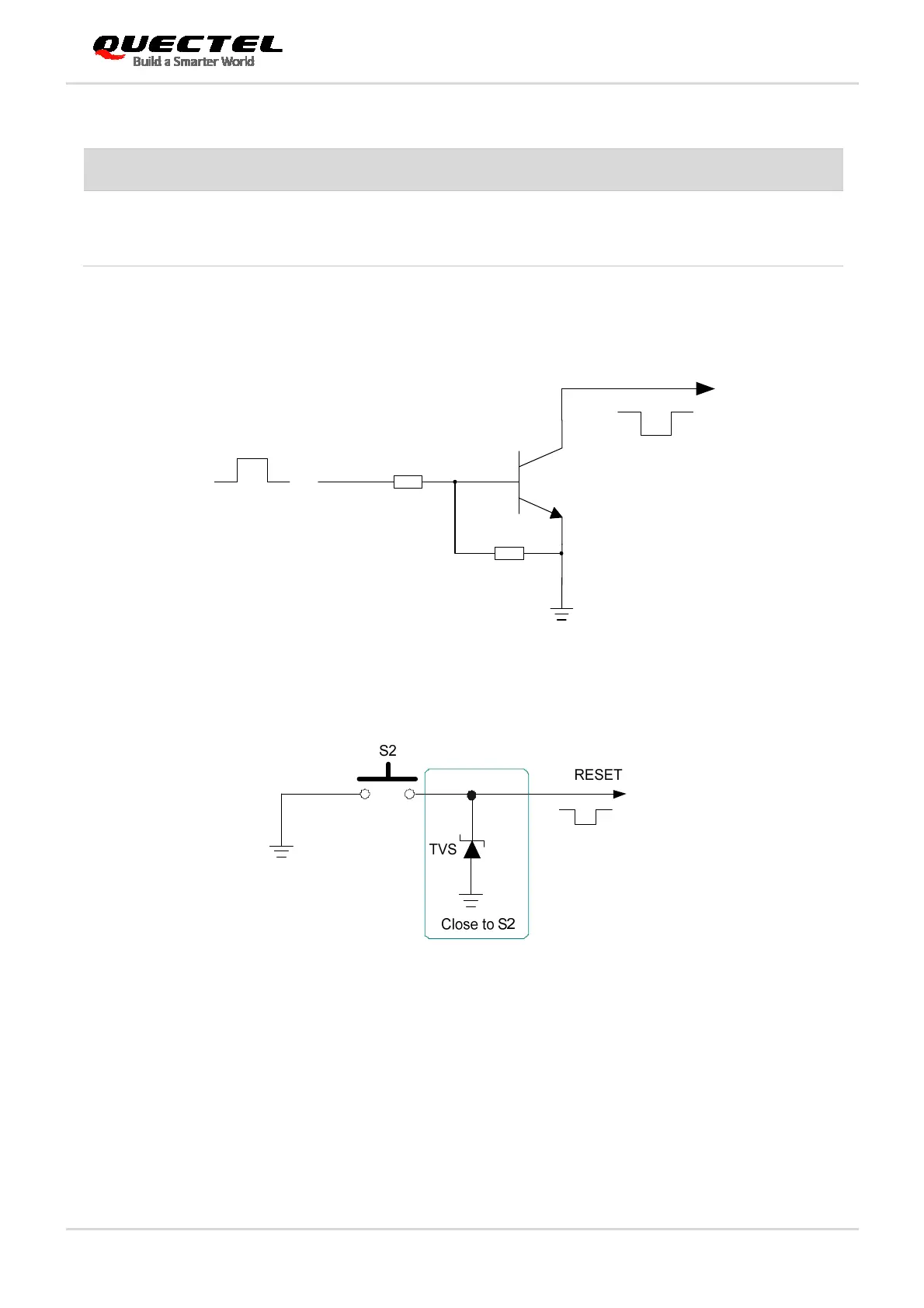

Figure 15: Reference Circuit of RESET by Using Driving Circuit
Figure 16: Reference Circuit of RESET by Using Button
The reset scenario is illustrated in the following figure.
