Quectel RM500Q-GL User Manual

5G Module Series
RM500Q-GL Hardware Design
RM500Q-GL_Hardware_Design 18 / 85
2.5. Pin Assignment

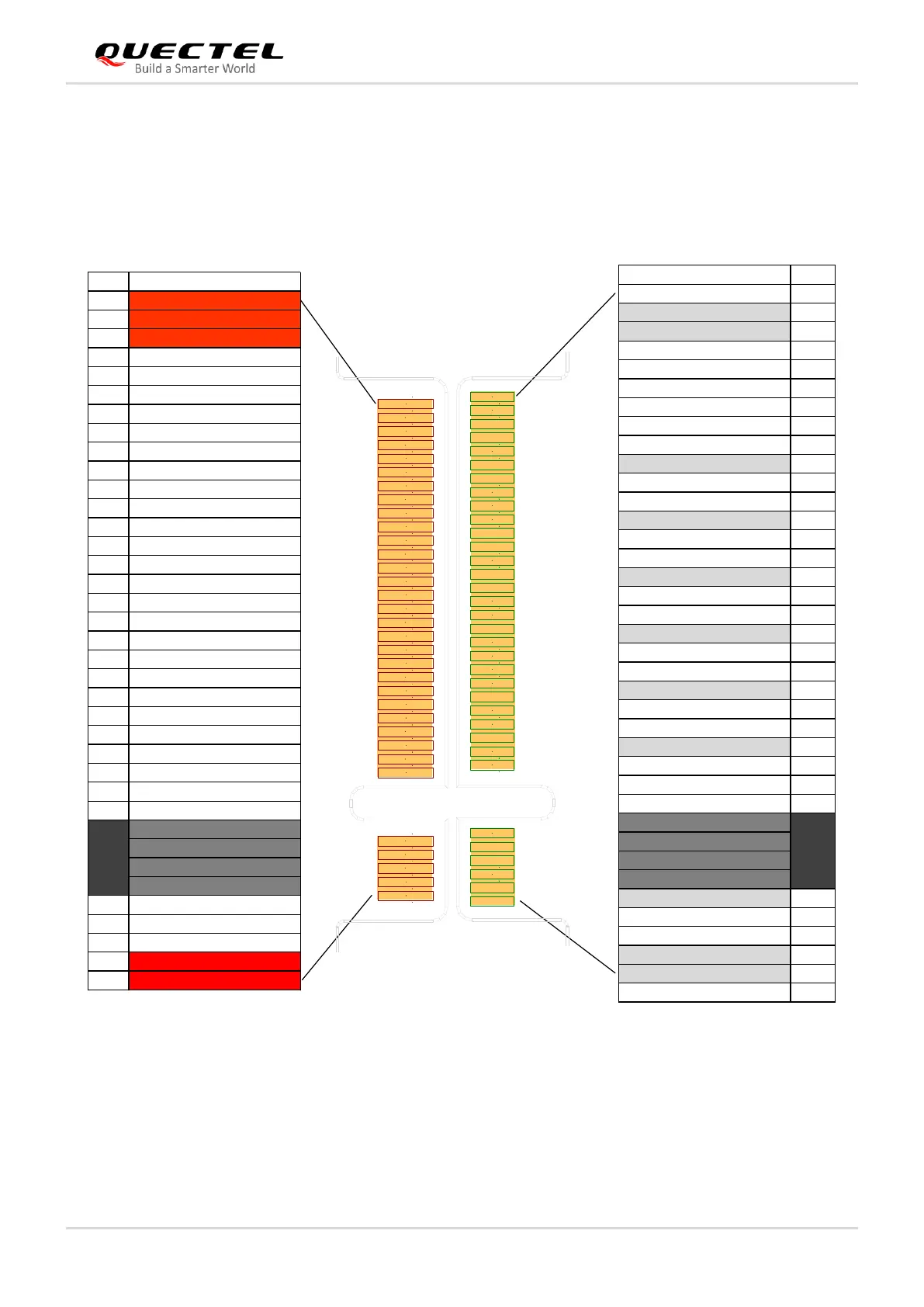

The following figure shows the pin assignment of RM500Q-GL. The top side contains the four antenna
connectors.
PIN2
PIN74
BOT
PIN1
PIN75
TOP
Pin Name No.
CONFIG_2 75
GND 73
GND 71
CONFIG_1 69
RESET# 67
RFFE_VIO_1V8 65
ANTCTL2 63
ANTCTL1 61
LAA_TX_EN 59
GND 57
PCIE_REFCLK_P 55
PCIE_REFCLK_M 53
GND 51
PCIE_RX_P 49
PCIE_RX_M 47
GND 45
PCIE_TX_P 43
PCIE_TX_M 41
GND 39
USB_SS_RX_P 37
USB_SS_RX_M 35
GND 33
USB_SS_TX_P 31
USB_SS_TX_M 29
GND 27
DPR 25
WAKE_ON_WAN# 23
CONFIG_0 21
Notch
Notch
Notch
Notch
GND 11
USB_DM 9
USB_DP 7
GND 5
GND 3
CONFIG_3 1
PIN11
PIN10
No. Pin Name
74 VCC
72 VCC
70 VCC
68 AP2SDX_STATUS
66 USIM1_DET
64 COEX_TXD
62 COEX_RXD
60 WLAN_TX_EN
58 RFFE_DATA
56 RFFE_CLK
54 PCIE_WAKE_N
52 PCIE_CLKREQ_N
50 PCIE_RST_N
48 USIM2_VDD
46 USIM2_RST
44 USIM2_CLK
42 USIM2_DATA
40 USIM2_DET
38 SDX2AP_STATUS
36 USIM1_VDD
34 USIM1_DATA
32 USIM1_CLK
30 USIM1_RST
28 PCM_SYNC
26 W_DISABLE2#
24 PCM_DOUT
22 PCM_DIN
20 PCM_CLK
Notch
Notch
Notch
Notch
10 WWAN_LED#
8 W_DISABLE1#
6
FULL_CARD_POWER_OFF#
4 VCC
2 VCC
Figure 2: Pin Assignment
