locked within 3 minutes after the loss of lock.
3. Cold start sensitivity: the minimum GNSS signal power at which the module can fix position
successfully within 3 minutes after executing cold start command.
5.3. Antenna Connectors
5.3.1. Antenna Connector Location
RM500Q-GL has four antenna connectors: ANT0, ANT1, ANT2_GNSSL1 and ANT3, which are shown
below.

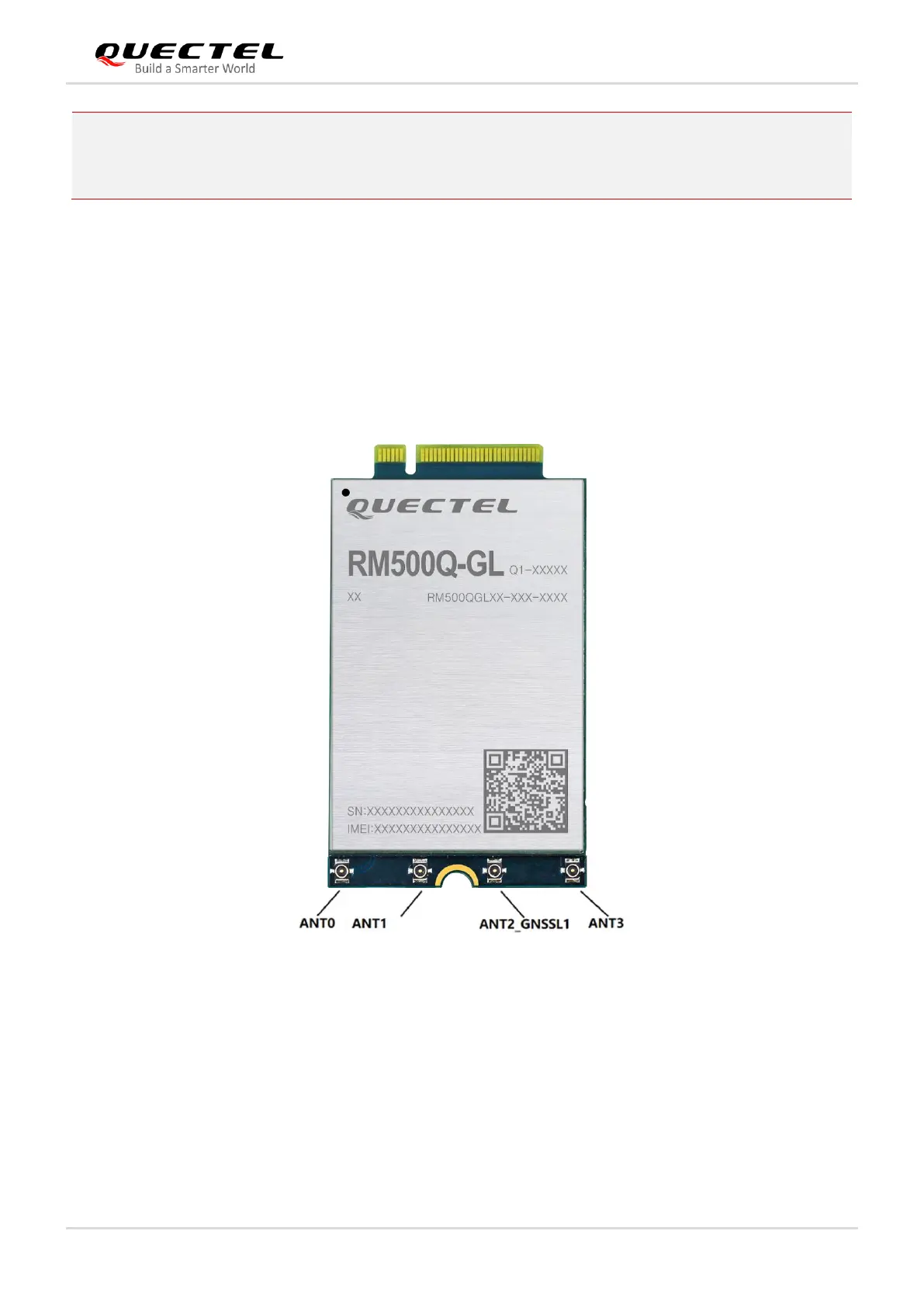

Figure 28: Antenna Connectors on the Module
5.3.2. Antenna Connector Size
RM500Q-GL is mounted with standard 2 mm × 2 mm receptacle antenna connectors for convenient
antenna connection. The antenna connector’s PN is IPEX 20579-001E, and the connector dimensions
are illustrated as below:
