7.2. Top and Bottom Views of the Module

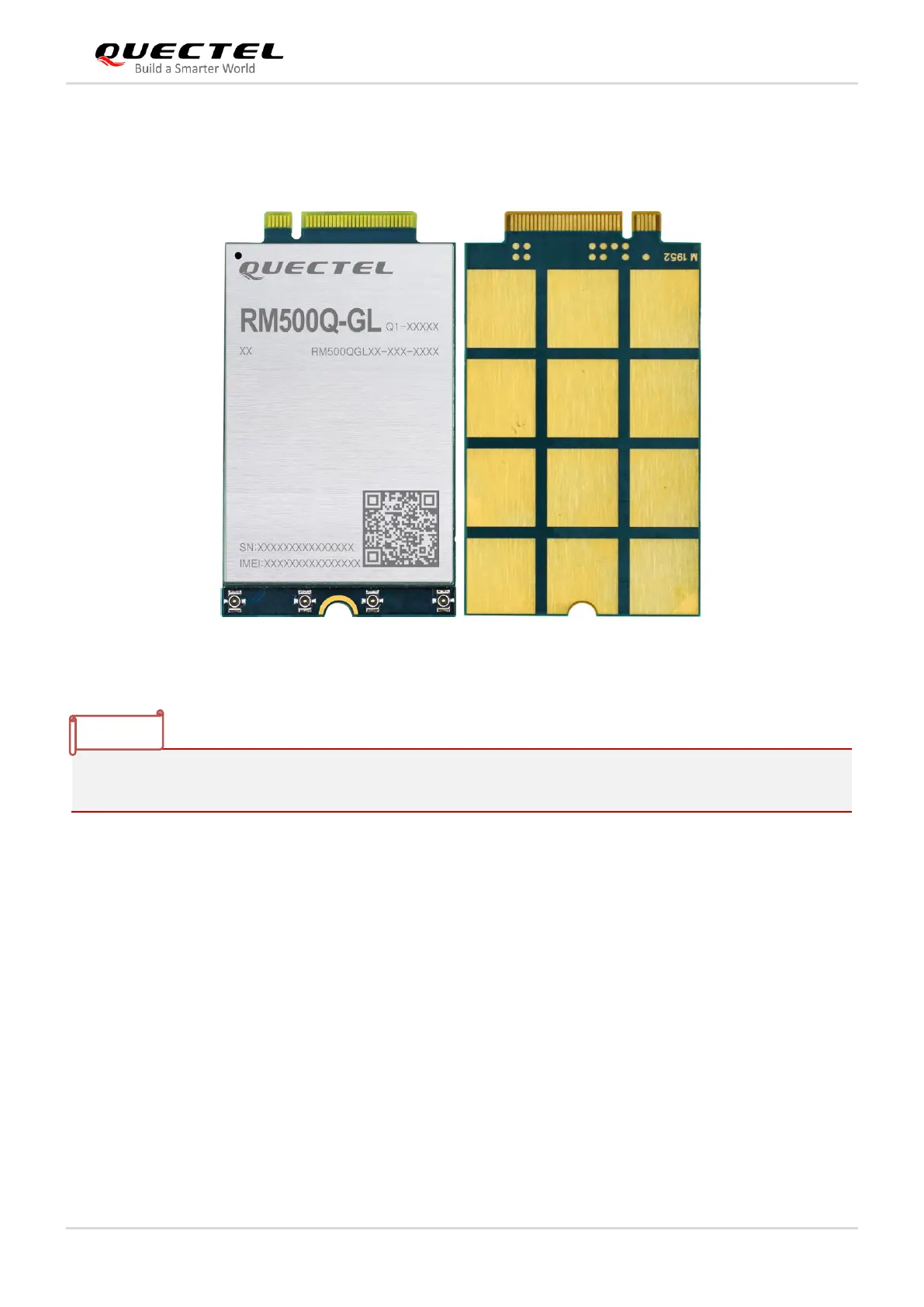

Figure 38: Top and Bottom View of the Module
Images above are for illustration purpose only and may differ from the actual module. For authentic
appearance and label, please refer to the module received from Quectel.
7.3. M.2 Connector
RM500Q-GL adopts a standard PCI Express M.2 connector which compiles with the directives and
standards listed in PCI Express M.2 Specification Revision 3.0, Version 1.2.
