4

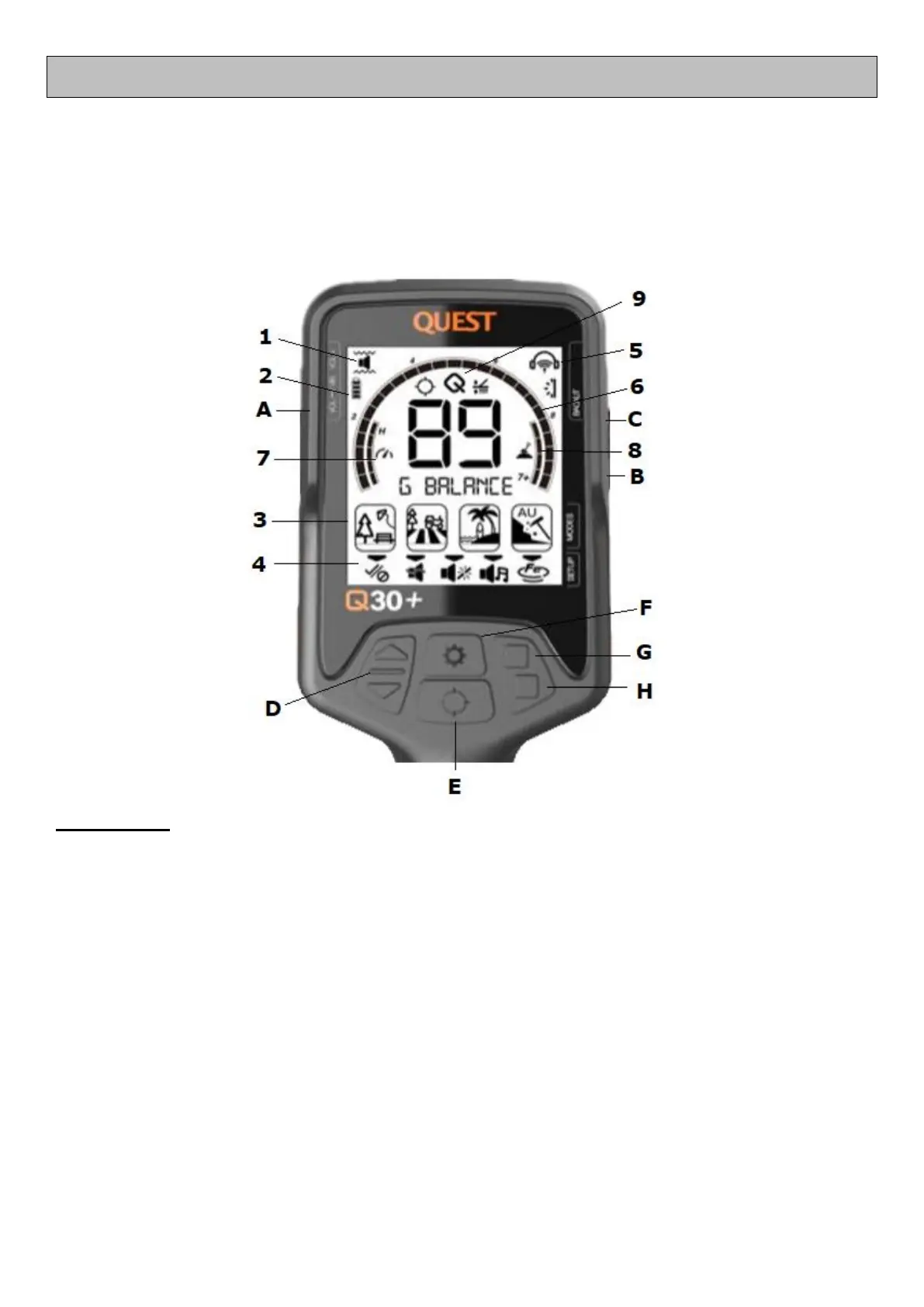

Q30 SERIES CONTROL PANEL / DISPLAY SCREEN
The layout of the controls of the Q30 series makes sure that any adjustment can be made quickly and without
having to scroll through multiple layers of onscreen menus. The detector is controlled through:
Two touchpads on the upper left side of the control housing
One touchpad on the upper right side of the control housing (the Q30+ has one additional touchpad)
Five touchpads on the face of the control housing
TOUCHPADS:
[A] - Touchpads on the left side of the housing: These are used to adjust the audio volume heard from
the internal speaker / headphones as well as to select the level of vibration felt in the handgrip if you have
opted to mute the detector and be alerted to targets by vibration. This is extremely useful when hunting
underwater without waterproof headphones or if you are hearing impaired to any degree.
[B] - Touchpad on the right side of the housing (bottom one on the Q30+): This activates one of the
two levels of backlighting provided for the LCD screen which helps when searching in low or no-light
conditions. It also turns this function off to save battery life.
[C] - Upper touchpad on the right side of the housing (Q30+ only): This activates the wireless audio
function and allows the Q30+ to connect to the WireFree Lite headphones that are included with the
detector (see pairing headphones section for details).
[D] – Up / Down Touchpad: This is used to adjust the detector’s Sensitivity when the main search screen
is displayed or one of the specific functions available in the individual search modes when in the Menu
Options mode. (see Search Modes section for which functions can be adjusted in each Search mode)
[E] – Pinpoint: This activates the non-motion pinpoint circuit that allows you to zero-in on detected targets
to speed recovery.
