5.6 Control joystick unit position
WARNING!
• Make sure that the control system is mounted
securely and that the joystick position is correct.
• The hand or limb you use to operate the joystick
should be supported, for example by the arm pad.
• Do not use the joystick as the sole support for your
hand or limb - wheelchair movements and bumps
could upset your control.

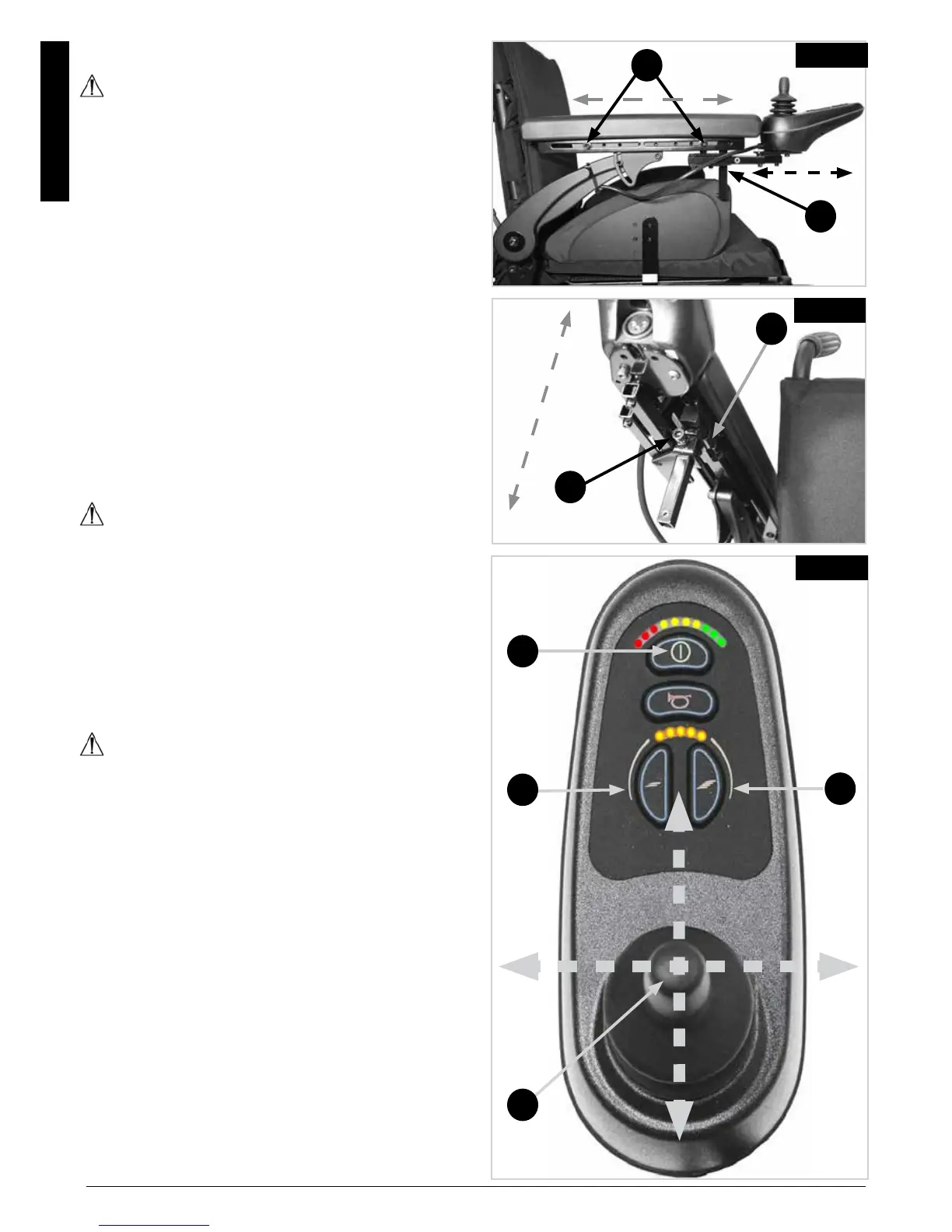

Positioning the Joystick Unit:
• Use a 3.0 mm Allen key, (hexagon wrench).
• Loosen the small set screw, (C-Fig.5.16).
• Move the joystick to the required position.
• Tighten the set screw.
You may wish to adjust the Armrest position to match the
new Joystck position:
• Use a 5.0 mm Allen key, (hexagon wrench).
• Loosen the two Allen screws, (Fig.5.15, A
).
• Slide the Armrest to it’s new position.
• Retighten the two Allen screws
WARNING!
Ensure all screws are fully tightened prior to use,
especially when transporting your wheelchair .
To adjust the height of the Control Joystick Unit relative to
the Armrest, (0 - 60.0 mm available adjustment):
• Use a 5.0 mm Allen key, (hexagon wrench).
• Loosen the Allen screw, (Fig.5.16, B).
• Move the unit to the desired position.
• Retighten the Allen screw.
WARNING!
Ensure the Allen screw is fully tightened prior to use,
especially when transporting your wheelchair .
5.7 Getting ready to drive. (Fig.5.17).
• Operate the on/off switch, (A).
• The battery gauge will blink then remain on after a
second
• Check that the maximum speed is set to a level which
suits you, (B).
• Push the joystick to control the speed and direction of
the wheelchair , (C).
NOTE: Please refer to Section 7
A
Fig.5.15
Fig.5.16
B
B
Fig.5.17
A
B
C
B
C
