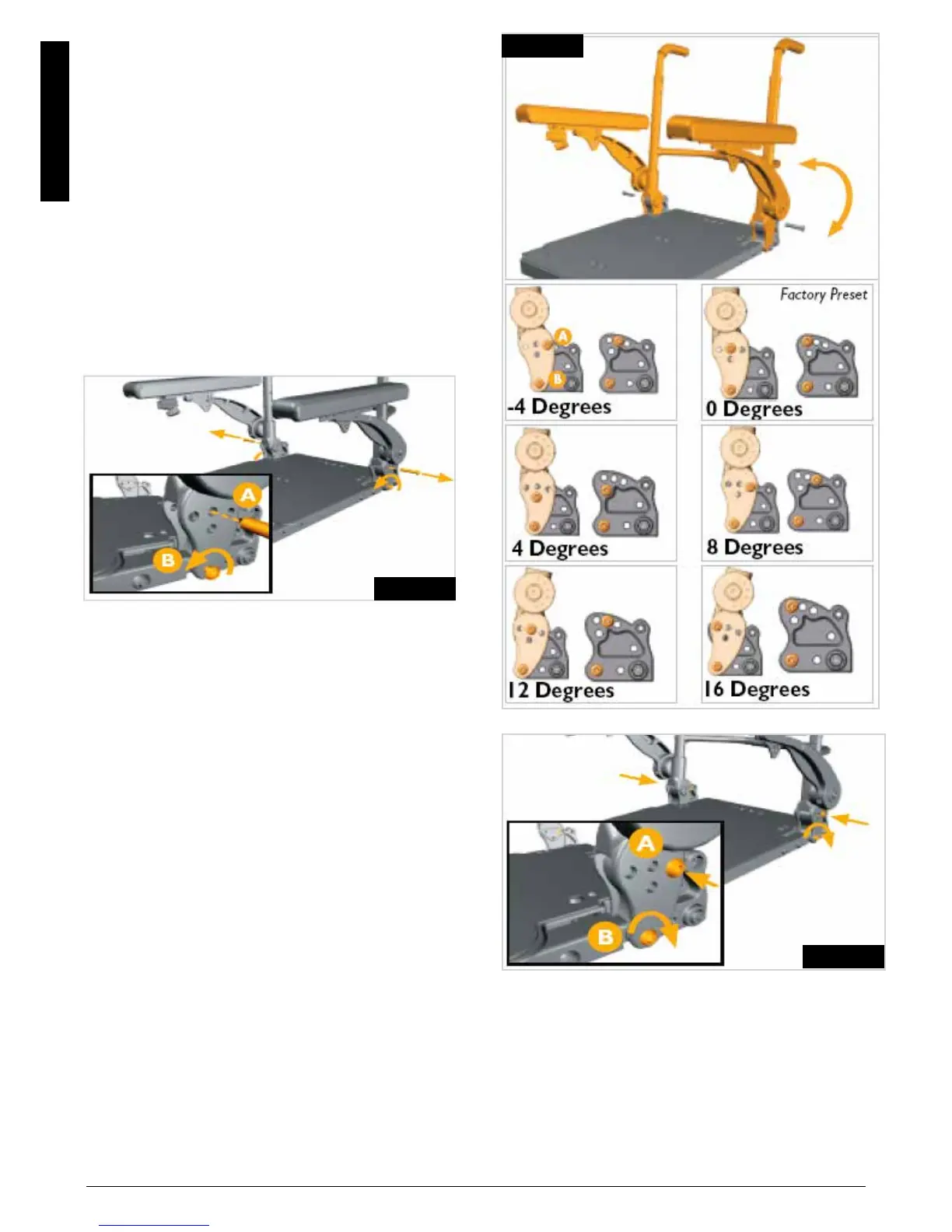

6.9 Backrest Angle Adjustment
1. Remove the 5mm backrest bracket index bolts (A) on
both sides of the backrest. Loosen the 5mm backrest
bracket pivot bolts (B) on both sides of the backrest.
NOTE: The index bolt (A) may be in a different starting
position than shown below in Fig.6.11.
2. Tilt the backrest assembly forward or backward to
the desired angle. See angle configurations below,
(Fig.6.12).
3. Reinsert and tighten both backrest bracket index bolts
and bracket bolts (A & B). Use 20 N/m or 177 in/lb of
torque, (Fig.6.13).
NOTE: Figure 6.13 represent the 8°angle.
Fig. 6.11
Fig. 6.12
Fig. 6.13
