6.10 Back Height Adjustment

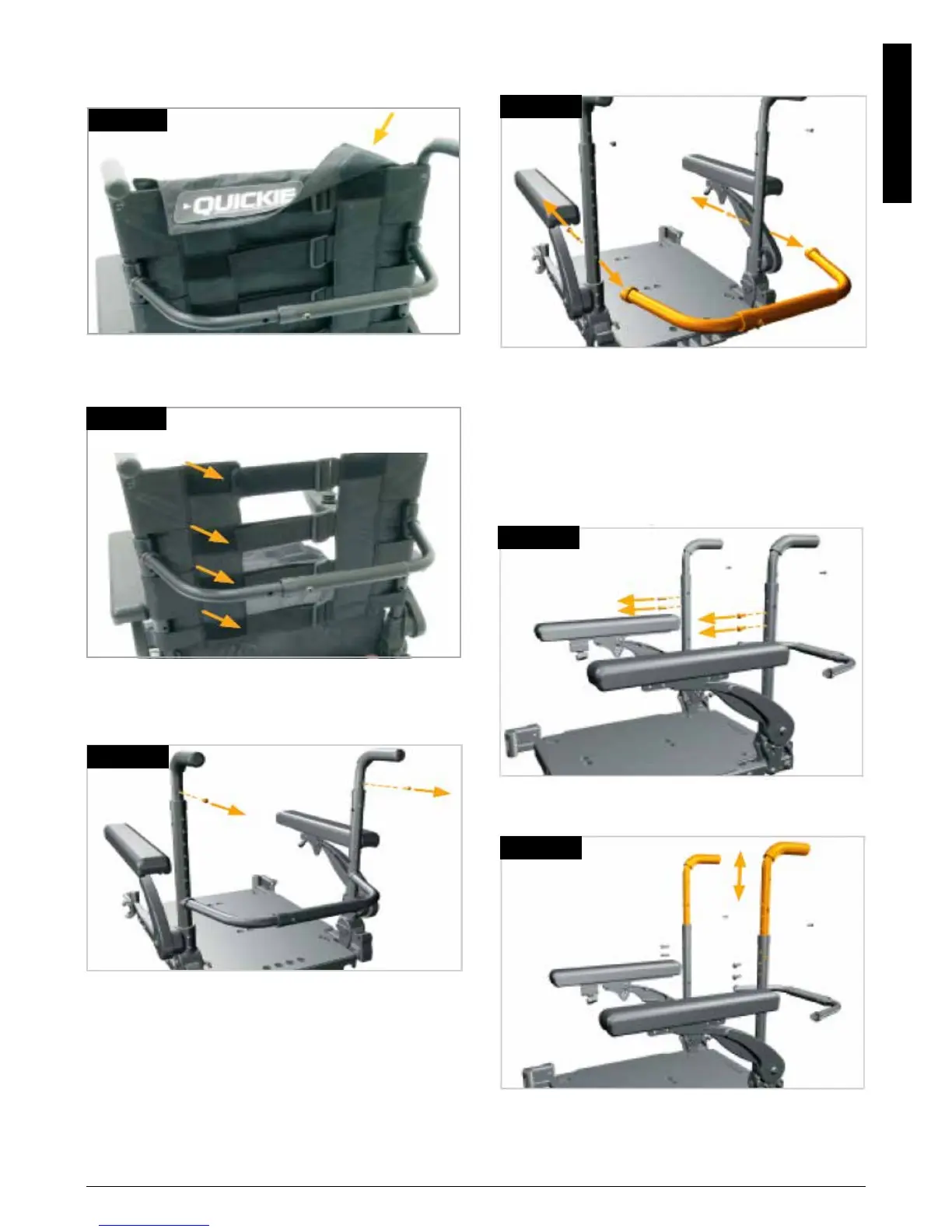

1. Begin by removing the upholstery cover, (Fig.6.14).
Fig. 6.14
2. Loosen the upholstery straps. It is not necessary to remove
the upholstery, (Fig.6.15).
Fig. 6.15
3. Remove the top upholstery screws. The upholstery can now
be moved and vertically compressed to provide access to
the hidden Phillips-head bolts, (Fig.6.16).
Fig. 6.16
4. Remove the 4mm towel bar bolts and the towel bar,
(Fig.6.17).
Fig. 6.17
NOTE: This step is not necessary in every case. If the
push handles are high enough, the towel bar bolts might
not thread into the push handle tubes. To test, skip this
step and move to Numbers 5 and 6. If the towel bar does
not impede movement of the push handles, the towel bar
may be left intact.
5. Remove the 4mm back post adjustment bolts, (Fig.6.18).
Fig. 6.18
6. Move both back posts to the desired height, (Fig.6.19).
Fig. 6.19
