SALSA M

2

Mini 75

Rev.3.0

ENGLISH

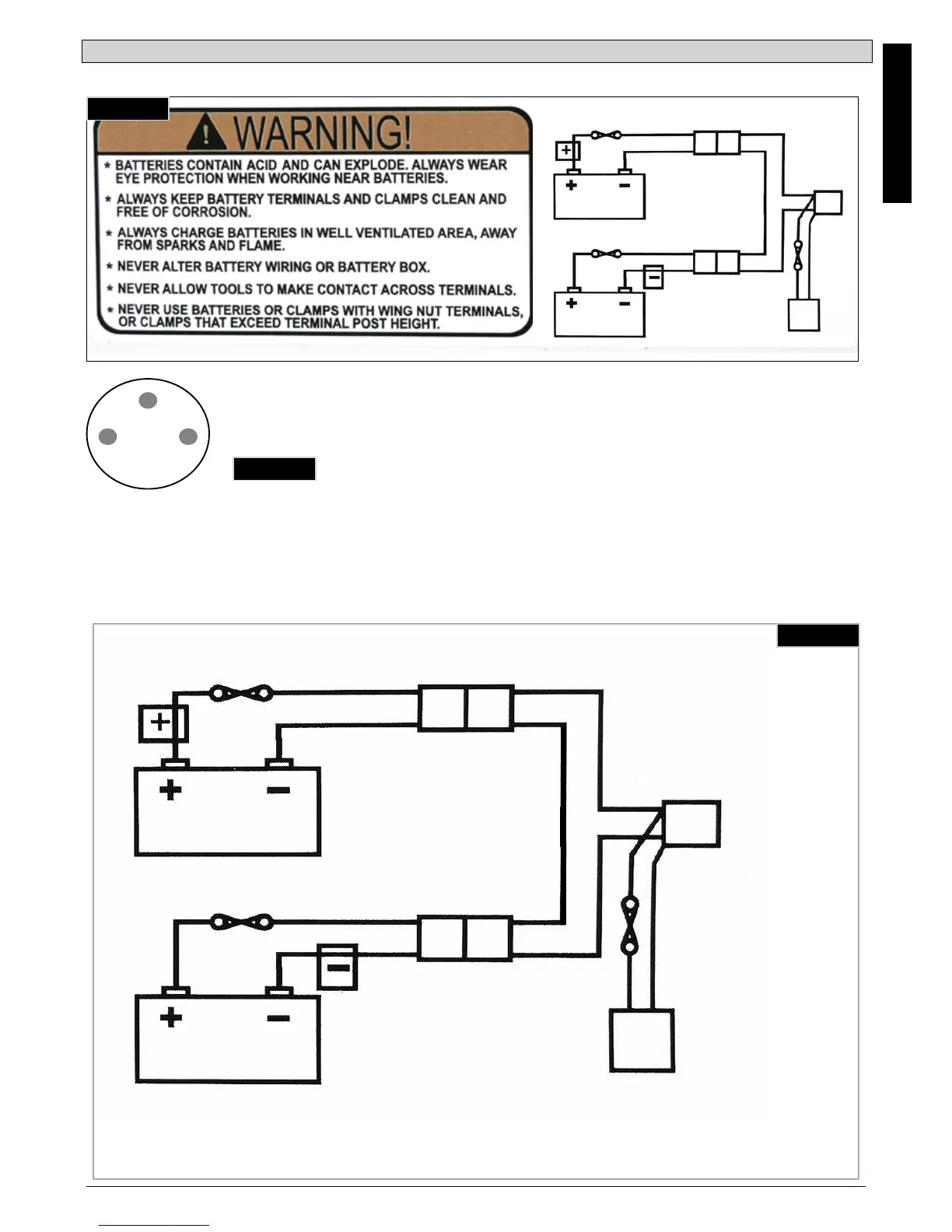

17.0 Battery Wiring Diagram

Charger Socket:

Pin 1: Battery Positive

Pin 2: Battery Negative

Pin 3: Inhibit

1 2

3

100A

BLACK BLACK

RED

YELLOW

BATTERY CONNECTOR

Fig.17.2

Fig.17.3

AUXILIARY POWER CONNECTOR

CONTROLLER CONNECTOR

15A

Fig.17.1
