5.8.5 Arm Rest Replacement
Please refer to your appropriate armrest type.
To Remove The Standard Armrest:
• Use a 6.0 mm Allen Key, (Hexagon Wrench), to undo
the rotation screw, (A).
• Remove the screw.
• Pull the Armrest assembly away from the bracket,
(Fig.5.32).
• To refit, reverse the above procedure.
• Tighten screw to 20 Nm.

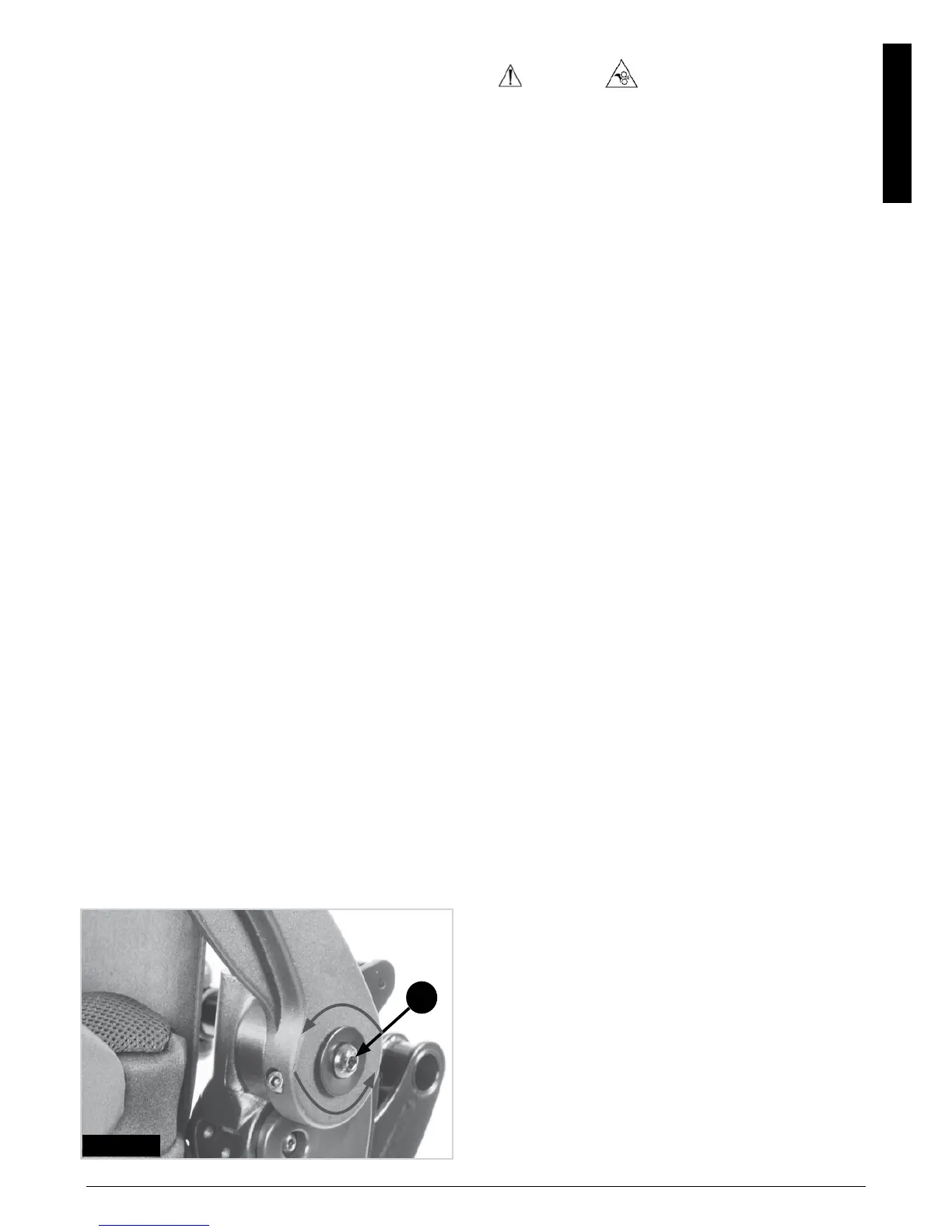

Fig. 5.32
A
5.9 Leg Rests
WARNING!
• Be aware of your environment to make sure you do
not injure your legs when Leg Rests are extended.
• Always ensure that the Leg Rests or foot plates do
not come into contact with the castors before driving
the wheelchair .
• Leg Rests are not to be used for lifting or carrying
the wheelchair under any circumstances.
• As with all moving parts be careful not to trap your
fingers.
5.9.1 Uni Leg rest removal
To swing away the leg rest:
• Depress the retaining catch and swing the leg rest
out, (Fig.5.33).
• Pull the retaining pin out, (Fig.5.34).
• Lift the leg rest up and off if removal is required,
(Fig.5.35).
To refit:
• Line up the holes in the legrest to the studs on the
reciever, (Fig.5.35).
• Drop the leg rest into the receiver, (Fig.5.35.1).
• Push the retaining pin back in place, (Fig.5.34).
• Push the leg rest inwards until it clicks shut,
(Fig.5.47).
5.9.2 Uni Seat Hanger depth adjustment
• Remove both sets of 5 mm crash test bracket bolts,
(Fig.5.36).
• Remove both skirt guard receivers, (Fig.5.37).
• Slide both hanger receivers to the desired location,
(Fig.5.38).
• Refit the skirt guard receivers and the crash test
brackets.
• Tighten all bolts, (
19 - 20 Nm).
