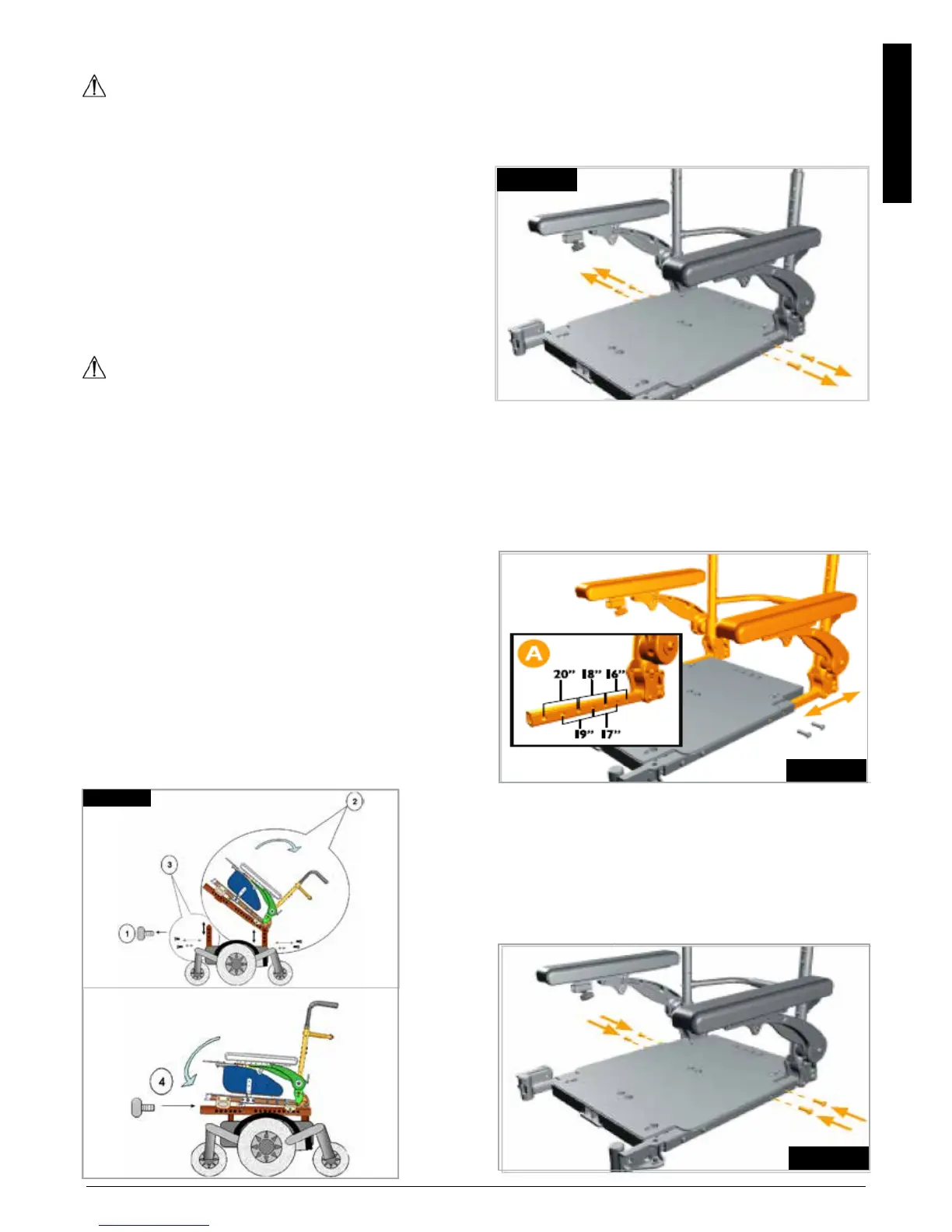

6.7 Standard Seat height adjustment
WARNING!
• Sunrise Medical strongly recommend that you
contact your Sunrise Medical dealer to carry out this
task.
• Make sure the top frame does not trap your fingers.
Get someone to hold the seat steady during
adjustment.
To change the seat height:
• Release the two handle screws under the front of the
seat frame that connect the seat frame with the seat
module interface.
• Flip the seat frame backwards and secure it with the
safety bar, (like the bonnet of a car).
CAUTION!
• Depending on options, the seat may be heavy to lift.
It is recommended that two people carry out this
action.
• Avoid pivoting the seat more than 60°rearwards.
• Remove the 2 socket studs from the back seat posts.
• Lift/lower the seat to the required position.
• Align the holes then refit & tighten the socket studs.
• Remove the 2 socket studs from the front seat posts.
• Lift/lower the posts to match the required position.
• Align the holes then refit & tighten the socket studs.
• Close the seat, refit & tighten the hand wheels,
(fig.6.7).
Fig. 6.7
6.8 Standard Seat Depth Adjustment
1. Remove the 5mm depth adjustment bolts from both
sides of the seat, (Fig.6.8).
Fig. 6.8
2. Slide the rear backrest and armrests into the desired
seat depth position. Reference seat depth position
patterns (A), (Fig.6.9).
3. Replace both sets of depth adjustment bolts.
Use 20 N/m or 177 in/lb of torque, (Fig.6.10).
Fig. 6.9
Fig. 6.10
