Quicklie Salsa M2 Mini User Manual

SALSA M
2
Mini 29
Rev.3.0
ENGLISH
Fig. 5.45
Fig. 5.47
Fig. 5.46

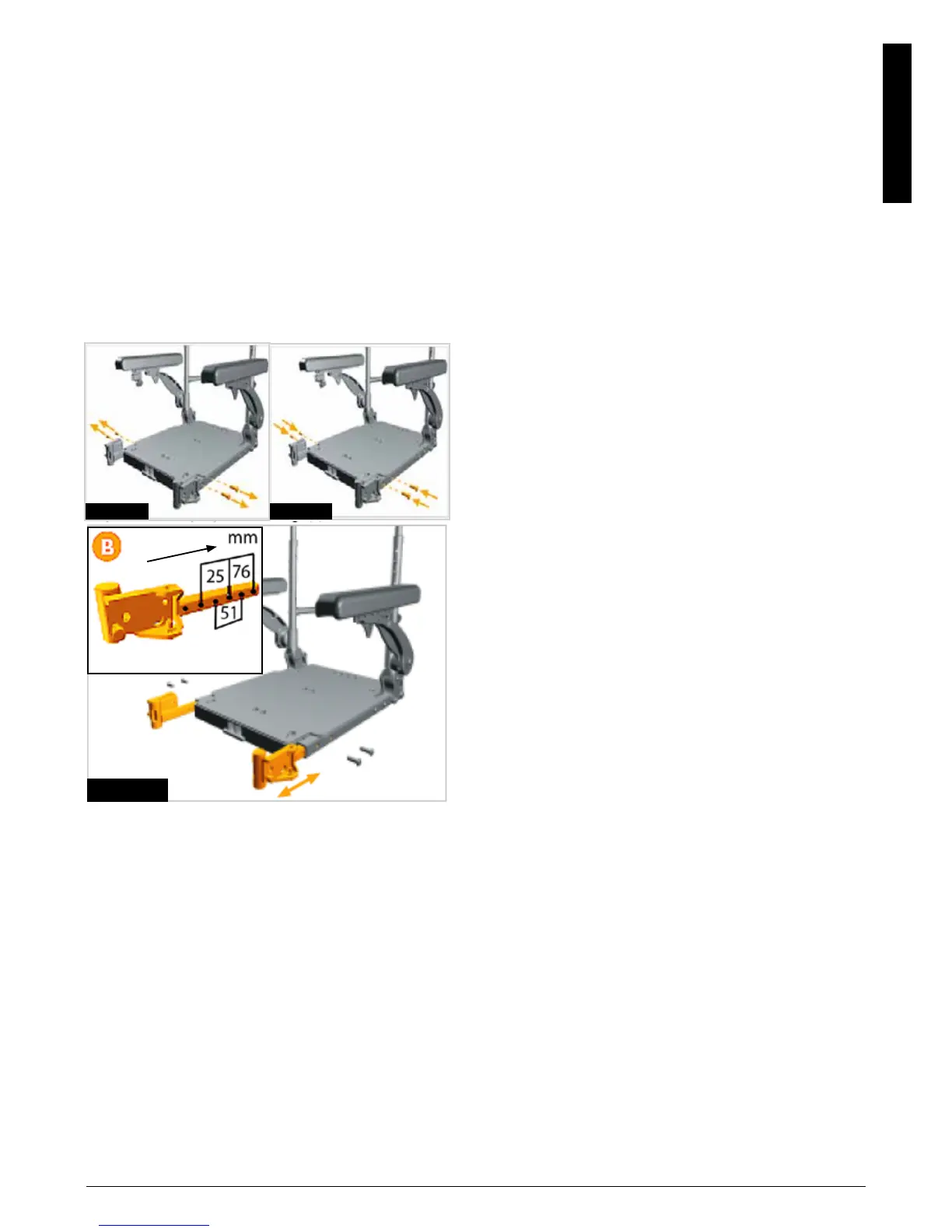

5.9.4 Standard Seat Hanger depth adjustment
• Remove both sets of 5mm hanger depth adjustment
bolts, (Fig.5.45).
• Slide both hanger receivers to the desired location,
(Fig.5.46, inset B).
• Replace both sets of depth adjustment bolts,
(Fig.5.47).
• Use 20 N/m or 177 in/lb of torque.

Quicklie Salsa M2 Mini Specifications

General

Brand	Quicklie
Model	Salsa M2 Mini
Category	Wheelchair
Language	English
