Salsa M
2
Mini
Parts in the battery box:
• Plastic battery box cover for 2 x 12V batteries.
• 2 x battery looms with fuse and ring terminals.
• Battery link harness with grey connectors.

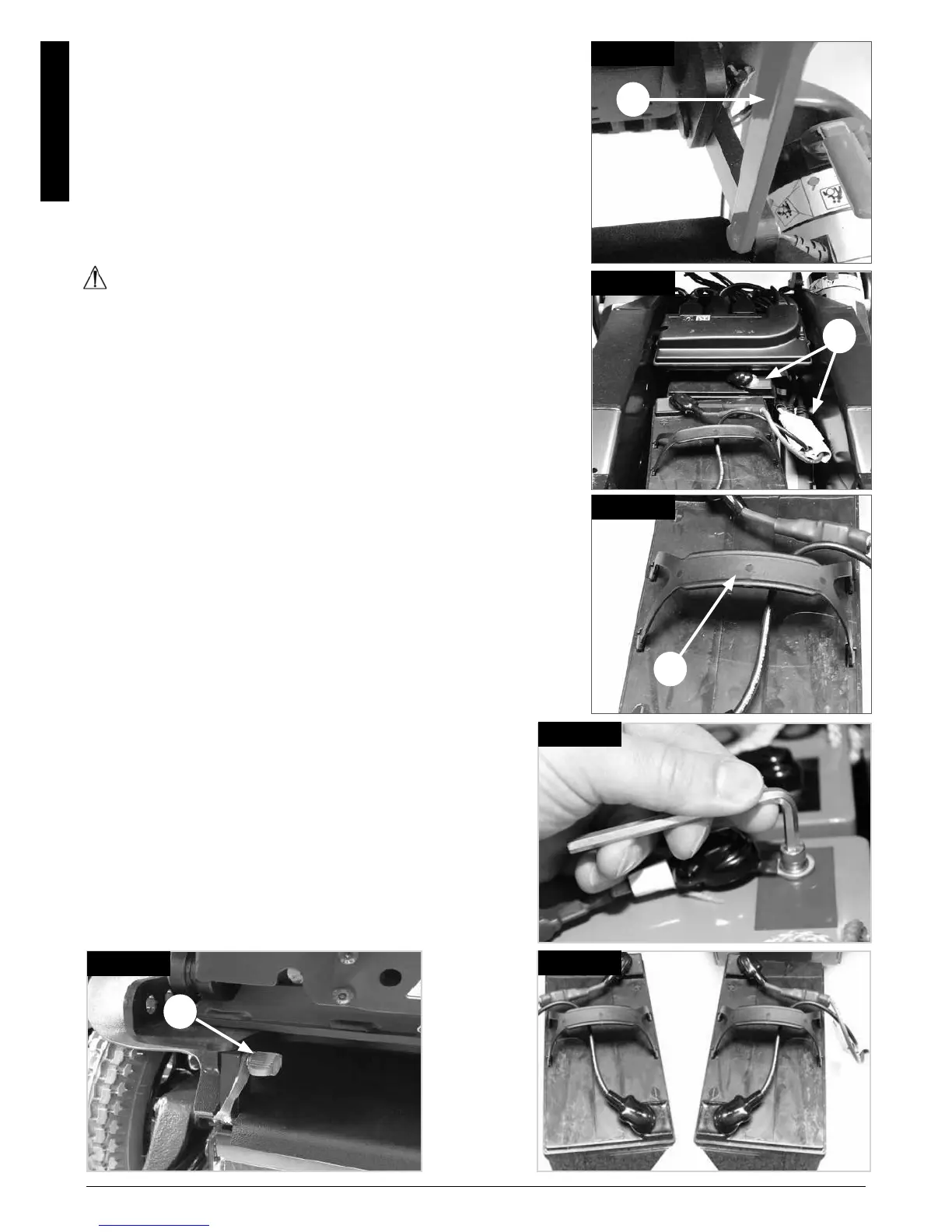

Accessing the Batteries
• Release the two handle screws under the front of the
seat frame that connect the seat frame with the seat
module interface, ( A-Fig.13.14).
• Flip the seat frame backwards and secure it with the
safety bar, (B-Fig.13.15).
CAUTION!
• Depending on options, the seat may be heavy to lift.It
is recommended that two people carry out this action.
• Avoid pivoting the seat more than 60°rearwards.
• The Battery Cover is secured by hook and eye pads
located on the body shroud. Use gentle but firm hand
pressure to lift the battery cover off.
• Lift off the battery lid
• Disconnect the 2 pin grey connectors from each
battery, (C-Fig.13.16).
• There are straps available on each battery where they
can be lifted out with the front battery being removed
first, (D -Fig.13.17).
• Peel back the insulative cover and use a 5.0 mm Allen
key, (hex wrench), to undo & remove the terminal bolt.
Repeat for the other terminal/battery, (Fig.13.18).
• On refitting, the battery terminals must be covered
after connection with the caps provided on the cable,
(Fig.13.19).
Fig.13.18
Fig.13.19
Fig.13.14
A
Fig.13.15
B
Fig.13.16
C
Fig.13.17
D
