Quincy Compressor QOF 20 - Installation proposal

Section IV - Installation guidelines
Quincy Compressor 73

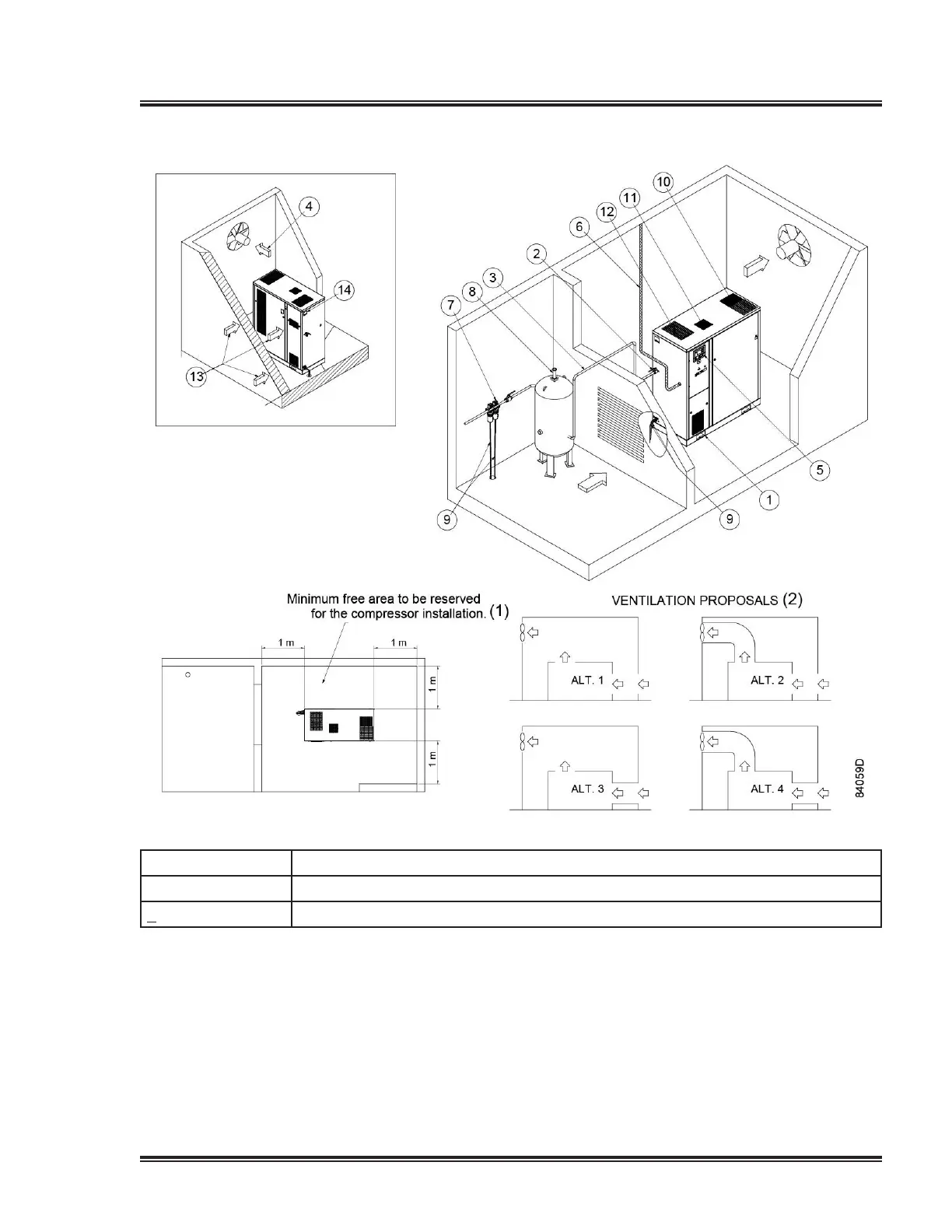

Installation proposal
Reference Description
1 Minimum free area to be reserved for the compressor installation
2 Ventilation proposals
Procedure
1.Installthecompressoronaleveloor,suitablefortakingtheweightofthe
compressor in a frost free and preferably low dust location.
2. Compressed air outlet valve.
3.Deliverypipe.
Thepressuredropovertheairdeliverypipecanbecalculatedasfollows:
Δp=(Lx450xQc
1.85
) / (d
5
xP),with
d = inner diameter of the pipe in mm
