Quincy Compressor QOF 20 - Electrical connections

Section IV - Installation guidelines
Quincy Compressor 75
Electrical connections
Attention
WARNING!
The electrical installation must correspond to the local codes. The mains supply
and earthing lines must be of suitable size.
The installation must be earthed and protected by fuses in each phase. An
isolating switch should be installed near the compressor.
Make sure that this switch is open to isolate the compressor from the mains before
carrying out any connection.
To preserve the protection degree of the electric cubicle and to protect its
components from dust from the environment, it is mandatory to use a proper
cable gland when connecting the supply cable to the compressor.
Supply cable
ConsultsectionElectriccablesizeandfusesforthesectionofthepowersupplycable.

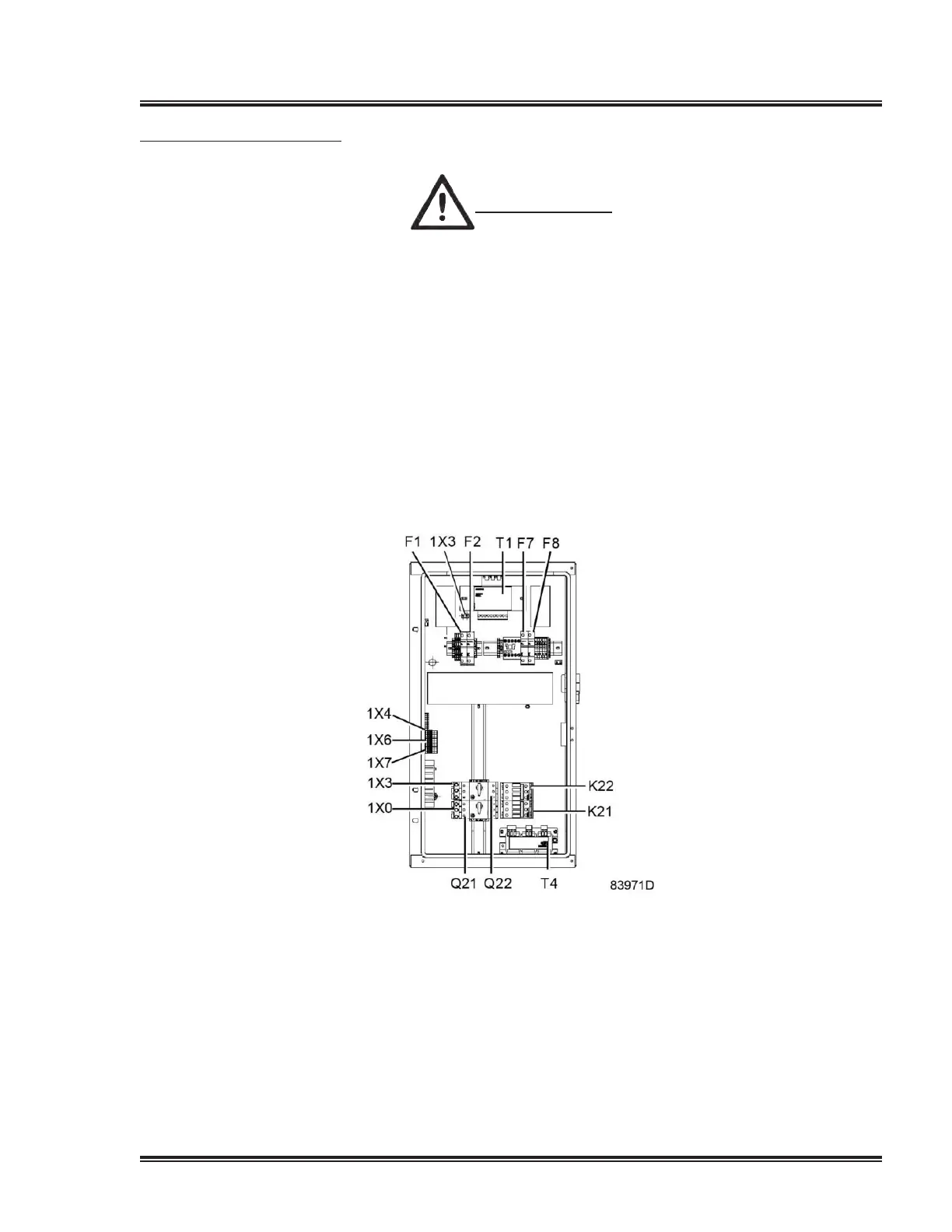

ConnectthesupplycabletoterminalsL1,L2andL3ofterminalstrip(1X0),connect
theneutralconductortoterminal(N)(ifapplicable)andtheearthingconductortothe
earthingbolt(1X3).
