Wiring Diagrams

Installation Guide CT100

Accessory Wiring

Zoned Hot Water Heat

For Solenoid or Motor valves,

connect the wires based on the

diagrams to the correct terminal on

the CT100.

• USE ONLY IN HEAT MODE.

• The CT100 must be powered by

24v ac.

The third wire on your valve may be called 6, Y, or G (see the Wire

Reference Table on page 23.

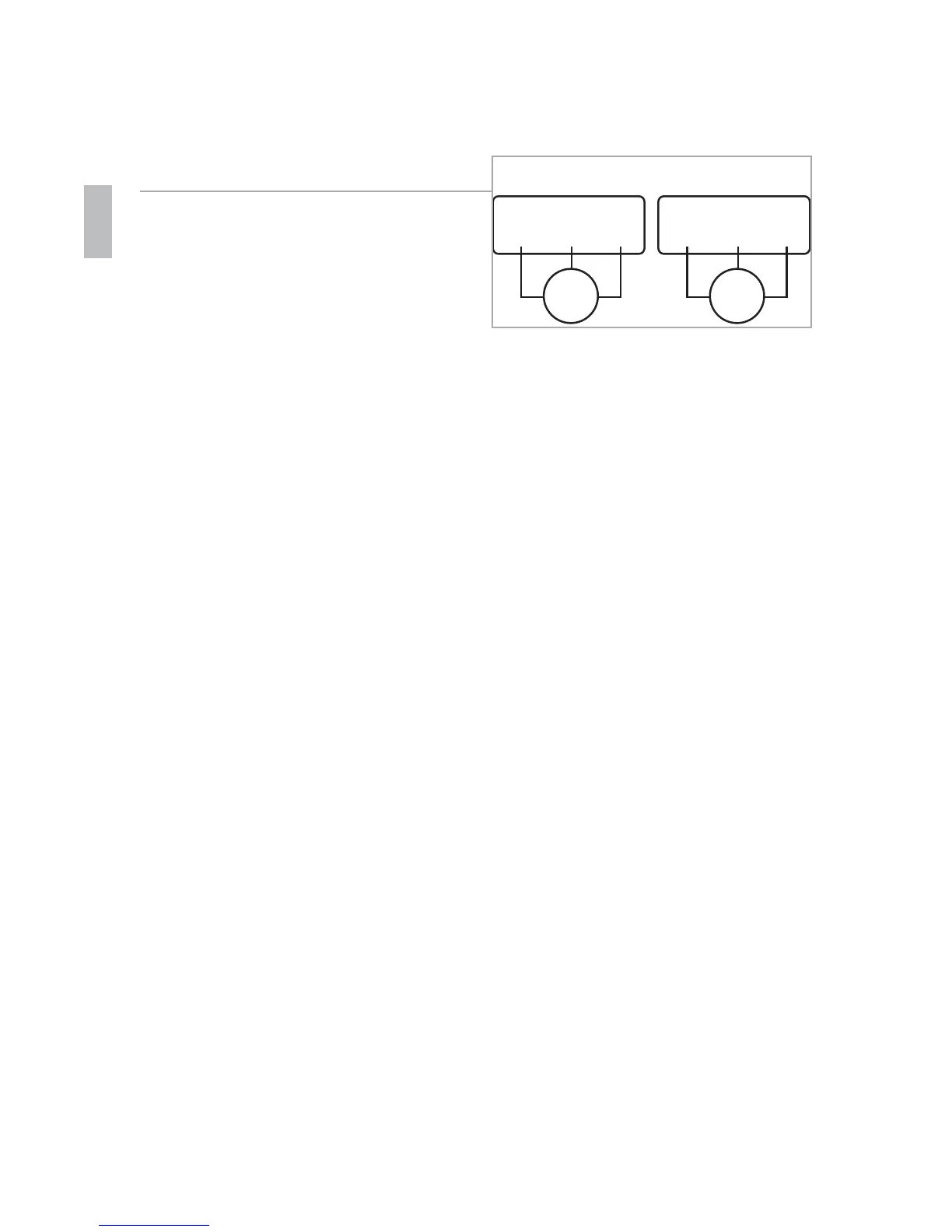

CT100

RH AW

MOTOR VALVE

CT100

RH AW

SOLENOID VALVE
