RadioLink RC4GSV3 User Manual

4
I. RC4GS V3 Remote Control System
1.1 Transmitter RC4GS V3

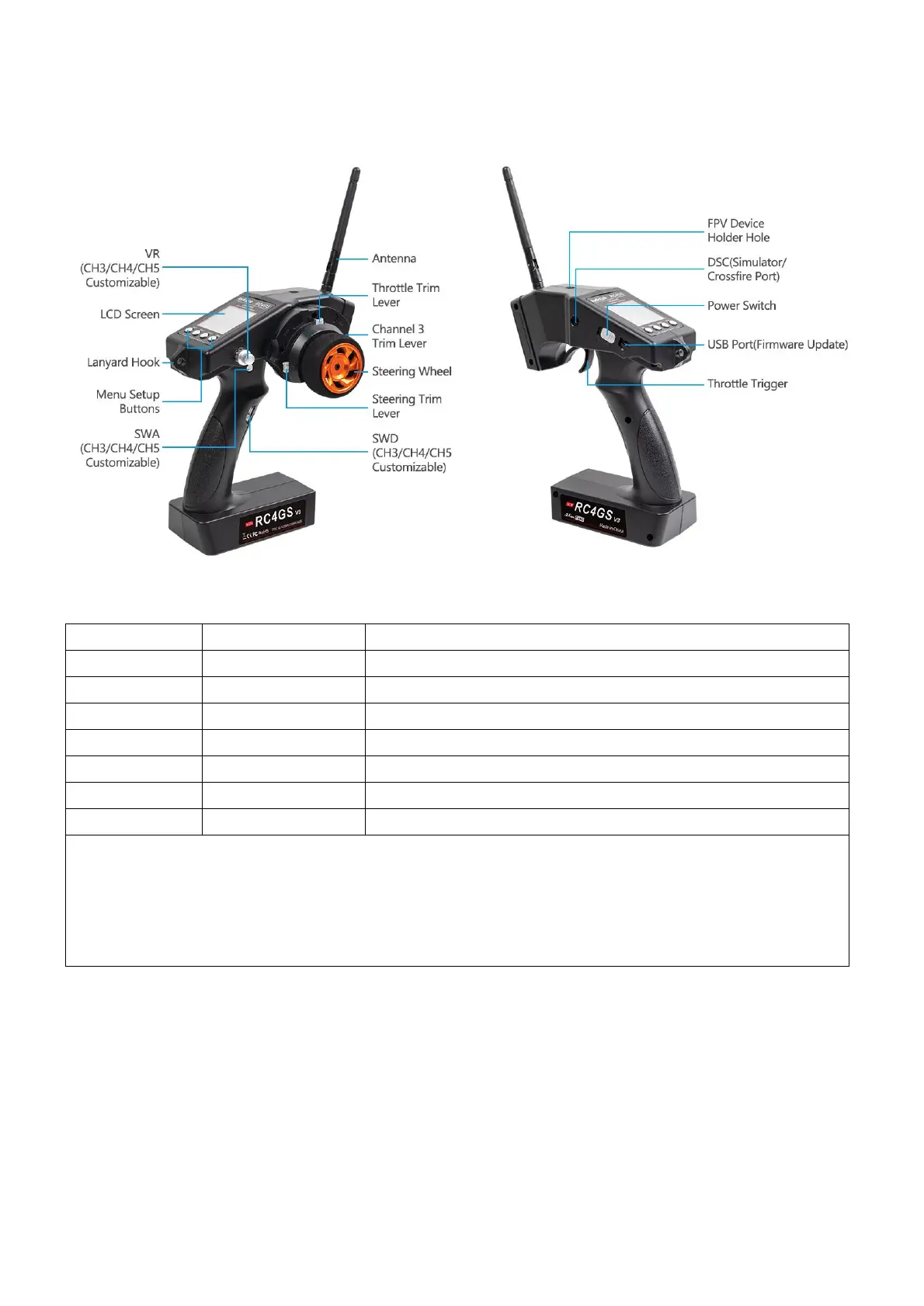

1.1.1 Transmitter Overview
1.1.2 Switch/Button Introduction
Switch/Button
Introduction
Function
ST
Steering wheel
Default control channel 1 steering. Customizable to control other channels
TH
Throttle trigger
Default control channel 2 throttle. Customizable to control other channels
VR
Knob switch
Default control channel 3. Customizable to control channel 3/4/5
SwA
Momentary switch
Default control channel 4. Customizable to control channel 3/4/5
SwD
Momentary switch
Default control channel 5. Customizable to control channel 3/4/5
LK-A
Two-way switch
Lock mode of SwA. Customizable to control channel 3/4/5
LK-D
Two-way switch
Lock mode of SwD. Customizable to control channel 3/4/5
Note:
1. CH in the transmitter stands for Channel.
2. Momentary switch: The servo value will reach the maximum (or the minimum) when pressing the button, and back to the original value
when loosen.
3. Two-way switch: The servo value will reach the maximum (or the minimum) when pressing the button once, and back to the original value
when pressing the button again.
1.1.3 Specifications
Size: 174.8*116.4*224.2mm(6.88*4.58*8.83") Weight: 319g(11.28oz)
Channel: 5 channels Model Memory: 30
ID seed: 10 Antenna Length: 106mm(4.17")
Control Range: 400 meters Spread Spectrum: FHSS
Modulation Mode: GFSK RF Power: <20dbm
LCD Screen: 128*64 Resolution, LCD Backlight Frequency: 2.4Ghz ISM Band（2400MHz--2483.5MHz）
Battery Tray Dimension: 89*59*25mm (3.5*2.32*0.98") Channel resolution: 4096 with regular jitter of 0.5us
Low Voltage Alarm: Support Operating Current: 80-120mA
Operating Voltage: 4.8-16.8V, (6pcs of AA batteries or a 2S-4S LiPo battery)
Adaptable Models: Car (Incl. Crawlers/Tanks/Caterpillars etc.)/Boat/Robot
Compatible Receiver: R6FG(Standard)/R8FG/R8EF/R8F/R7FG/R6F/R4FGM/R4F
